10
CONNECTIONS
2 2 2 2 2
Turn on the power of the personal computer connected.
3 3 3 3 3
Confirm that ON LINE button on the front panel is lit.
COPY ONLINE PAPER FEED
& CUT

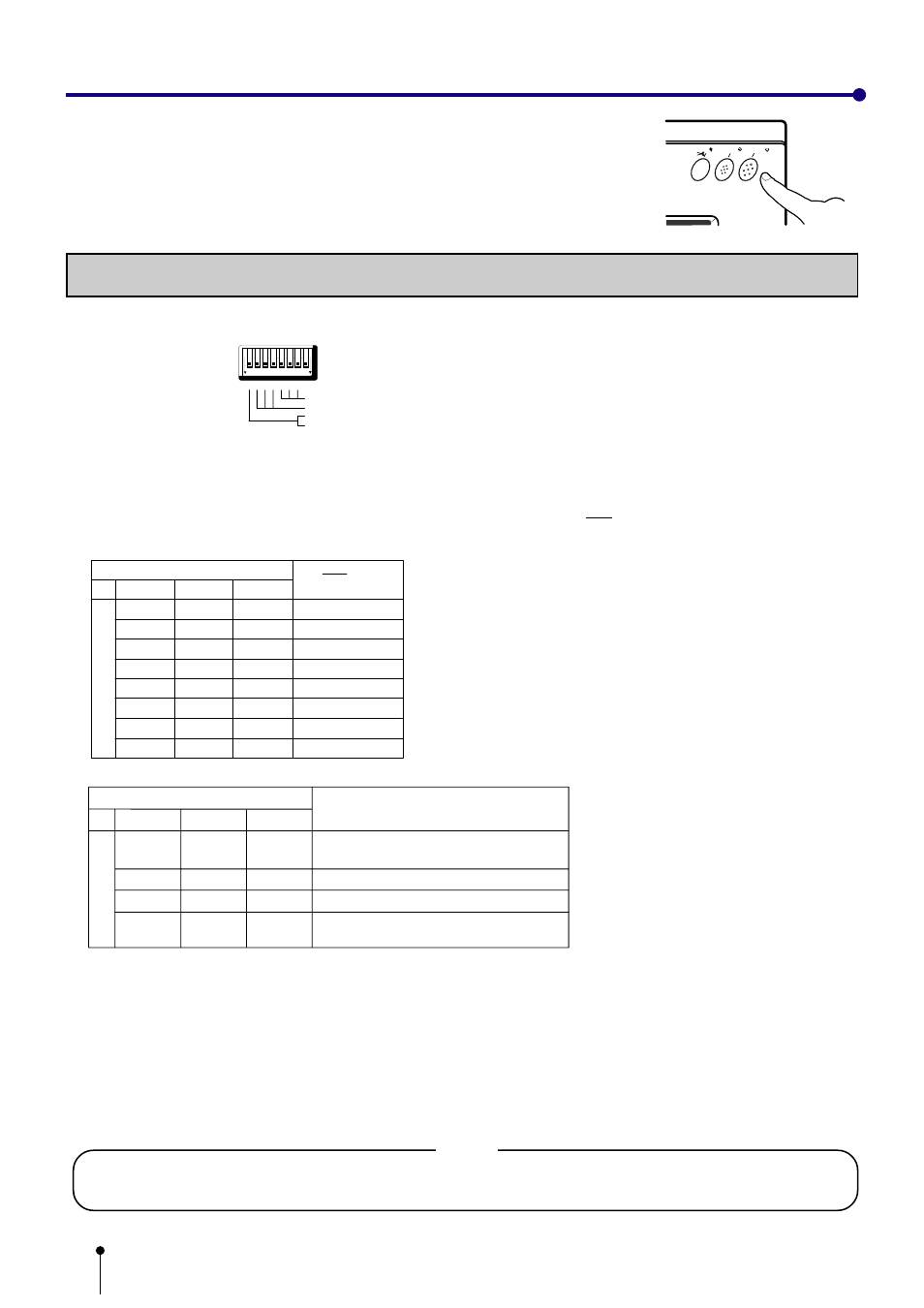

Set the mode switches (DIP-SW) on the rear panel according to the connected device.
SETTING MODE SWITCHES
With the mode switch No.1, switch parallel or SCSI.
ON .......... PARALLEL
OFF ........ SCSI
With the mode switches No. 2, No. 3 and No. 4, set the time of acknowledge signal (ACK).
Refer to the operation manual of the connected personal computer for the set time.
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
DIRECT SNAP
ACK
ON PARALLEL
OFF SCSI
ON
OFF
OFF(down) OFF(down)
ON(up) OFF(down)
OFF(down) ON(up)
ON(up) ON(up)
2 3
Mode switch No.
ACK time
0.5µs
1.0µs
1.5µs
2.0µs
Switching position
4
OFF(down)
OFF(down)
OFF(down)
OFF(down)
OFF(down) OFF(down) ON(up)
ON(up)
ON(up)
ON(up)
OFF(down)
ON(up)
ON(up)
ON(up)
ON(up)
OFF(down)
2.5µs
3.0µs
3.5µs
4.0µs
With the mode switches No. 5, No. 6 and No. 7, select the printing result when connecting with DS-300 (FUJIX digital camera).
OFF(down) ON/OFF
ON(up) OFF(down)
ON(up) ON(up)
5 6
Mode switch No.
Printing result
Normal print
(Print connecting with a personal computer)
Print image will not be enlarged.
Print image will be enlarged to 137.5% and
white frame will be made around the image.
Switching position
7
ON(up) ON(up)
ON/OFF
ON/OFF
OFF(down)
ON(up)
Print image will be enlarged to 137.5%.
With the mode switch No. 8, set whether the surface lamination is applied or not.
ON .......... The surface lamination is not applied. The printing speed will get faster due to the skipping surface lamination
process.
OFF ........ The surface lamination is applied. The printing speed is the standard speed.
•
When this switch is set to ON, the printing speed will get faster due to the skipping surface lamination process. However,
the life, light stability, moisture resistance and fingerprint resistance will be as the same level as the print paper without
surface coating.
The default setting of the mode switches is OFF.
Make sure to turn on the power again when the mode switch setting is changed.
NOTE
• On the initializing function invalid status, when printing is interrupted by the command from the host computer, turn the
power of this unit to OFF and clear the transferred data.
