7

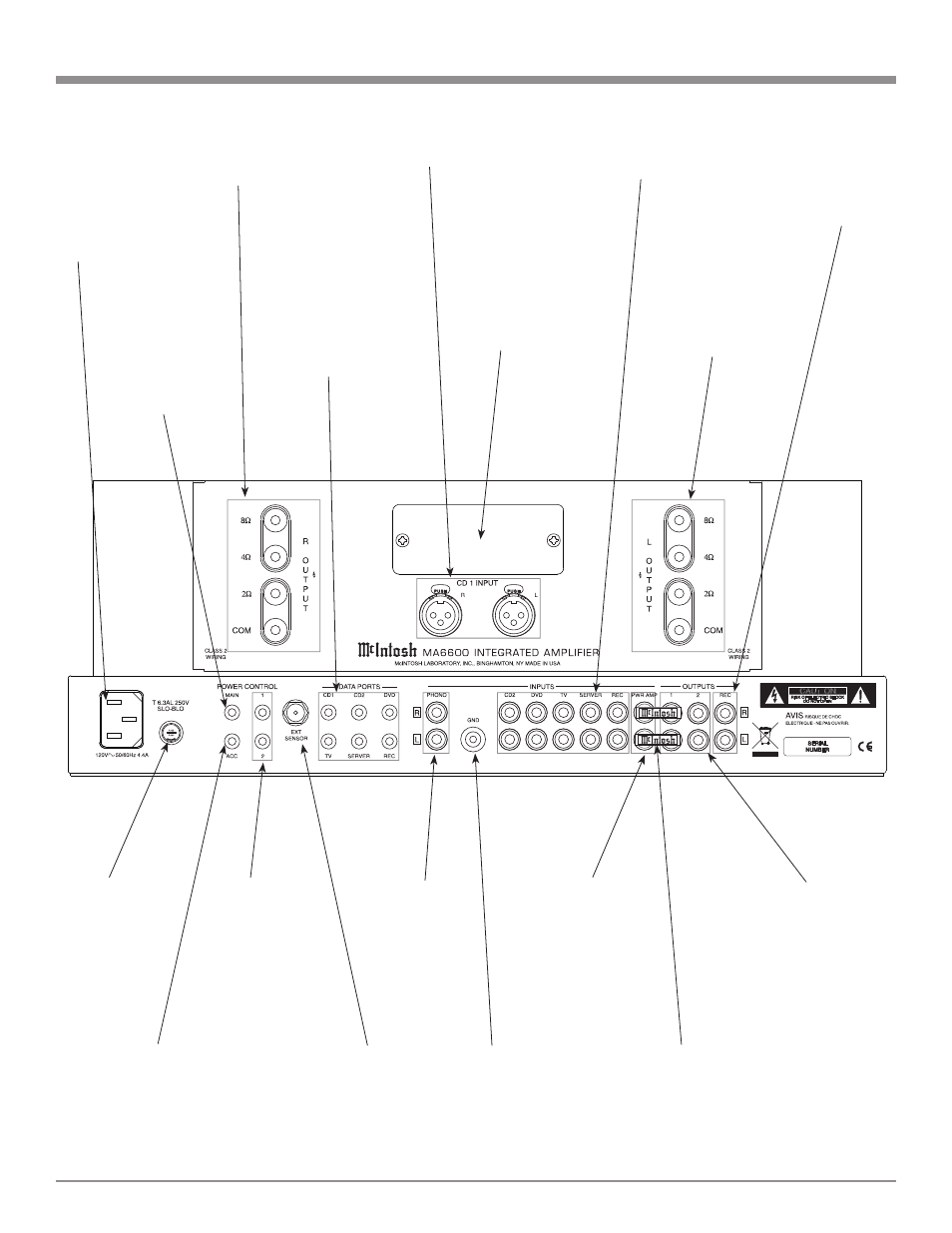

Rear Panel Connections
Connect the MA6600
power cord to a live
AC outlet. Refer to
information on the
back panel of your
MA6600 to determine
the correct voltage for
your unit
POWER CONTROL ACC
Output sends a turn-On,
turn-Off signal to a McIn-
tosh Component when using
the MA6600 Remote Control
ACC On/Off Push-buttons
DATA PORTS send
signals to McIntosh
Source Components
to allow control with
the MA6600 Remote
Control
PWR AMP
input accepts
signals from
the internal
Preamplifier
or a separate
external Pre-
amplifier
JUMPER PLUGS connect
the Preamplifier OUTPUT
1 Jacks to the PWR AMP
IN Jacks and are needed for
normal operation
CD2, DVD, TV, SERVER
and REC INPUTS accept
high level program source
signals
GND
terminal
accepts
a ground
wire from a
turntable
RECord
OUTPUT
sends signals
to the input
of a recording
device
RIGHT OUTPUT
connections for a
2, 4 or 8 ohm
loudspeaker
Main Fuse holder,
refer to information
on the back panel
of your MA6600 to
determine the cor-
rect fuse size and
rating
CD1 Balanced IN-
PUTS accept high level
program source signals
PHONO accepts
signals from a
Moving Magnet
phono cartridge
OUTPUT 1 sends signals
to the internal Power
Amplifier or a separate
external Power Ampli-
fier; OUTPUT 2 sends
signals to a separate
external Power Amplifier
input
POWER CON-
TROL MAIN Out-
put sends a turn-on
signal to a McIn-
tosh Component
when the MA6600
is turned On
POWER CONTROL
1 and 2 Output sends
a turn-on signal to a
McIntosh Component
when the Outputs 1
and 2 Push-buttons
are used
EXT SENSOR con-
nector permits the
connection of a Mc-
Intosh IR Sensor for
remote operation
LEFT OUTPUT
connections for a
2, 4 or 8 ohm
loudspeaker
Reserved for the
installation of
optional Tuner
Module
