Chapter 7. Using the TV with a Personal Computer

Computer with HDMI Digital Monitor Output

Required: HDMI-to-DVI cable or an HDMI cable with an
HDMI/DVI adapter, stereo audio cables

If the computer’s audio output is a single mini jack, a mini
audio-to-RCA-male “Y” adapter cable is also required.

1. Connect the computer’s

HDMI output to the TV’s

PC-DVI jack. Use either an HDMI-to-DVI cable or an
HDMI cable with an HDMI/DVI adapter.

2. Connect the left (white) and right (red) audio cables

from the computer’s

AUDIO OUT to PC-DVI

AUDIO on the TV back panel.

��

��
��

��

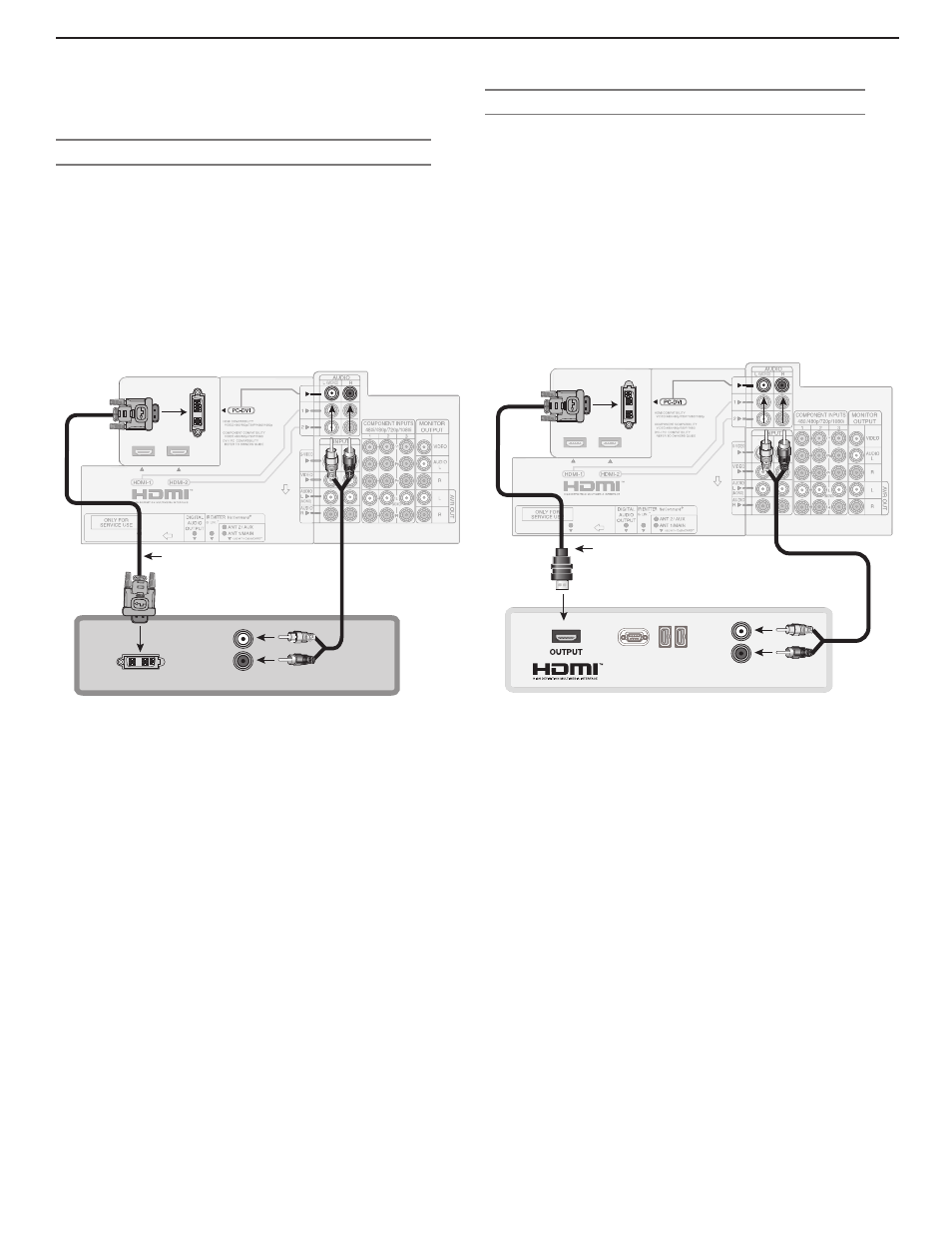

Figure 3. Connecting a personal computer with an HDMI
monitor output

Connecting a Computer to the TV

Computer with DVI Digital Monitor Output

Required: DVI-to-DVI cable, stereo audio cables

If the computer’s audio output is a single mini jack, a mini
audio-to-RCA-male “Y” adapter cable is also required.

1. Connect the DVI-to-DVI cable from the computer

DVI

output to the

PC-DVI jack on the TV back panel.

2. Connect the left (white) and right (red) audio cables

from

AUDIO OUT on the PC back panel to PC-

DVI AUDIO on the TV back panel.

��

��
��

��

Figure 2. Connecting a personal computer with DVI Monitor

Output
