Chapter 1. Television Overview 17
4. AVR OUT
(Audio only)
AVR OUT (AUDIO/VIDEO RECEIVER OUT) L/R jacks
send analog audio of the program currently shown on
the screen to an A/V surround sound receiver or stereo
system. Digital audio from digital channels, FireWire®
(DTVLink/IEEE 1394) devices and HDMI devices is con-
verted to analog audio by the TV. If using an analog A/V
receiver or stereo system, this is the only audio connec-
tion needed between it and the TV.
5. MONITOR OUTPUT
Use these composite video and left/right audio jacks
to send analog video and audio signals to an external
recording device such as a VCR. The signals from these
jacks are from the program currently being viewed on the
TV screen. To make recordings from this output, the
TV must be in normal full-screen mode rather than in
Split-Screen mode.
• From this output you can record audio and video
signals from ANT 1, ANT 2, INPUT 1-3, and
IEEE 1394 devices.
• Digital signals from ANT 1, ANT 2, and IEEE
1394 devices are converted to analog video and
audio signals.
• Some signals cannot be recorded because of
copy-protection flags in the content.
• Video signals from Component inputs, HDMI inputs,
and PC-DVI inputs are not sent to record output.
6. HDMI/DVI AUDIO
Use these analog audio inputs when connecting DVI
video devices to the TV’s
HDMI jacks. Unlike HDMI, DVI
does not carry audio information on the same cable. For
analog audio from a personal computer, use the PC-
DVI AUDIO jacks instead.
- K

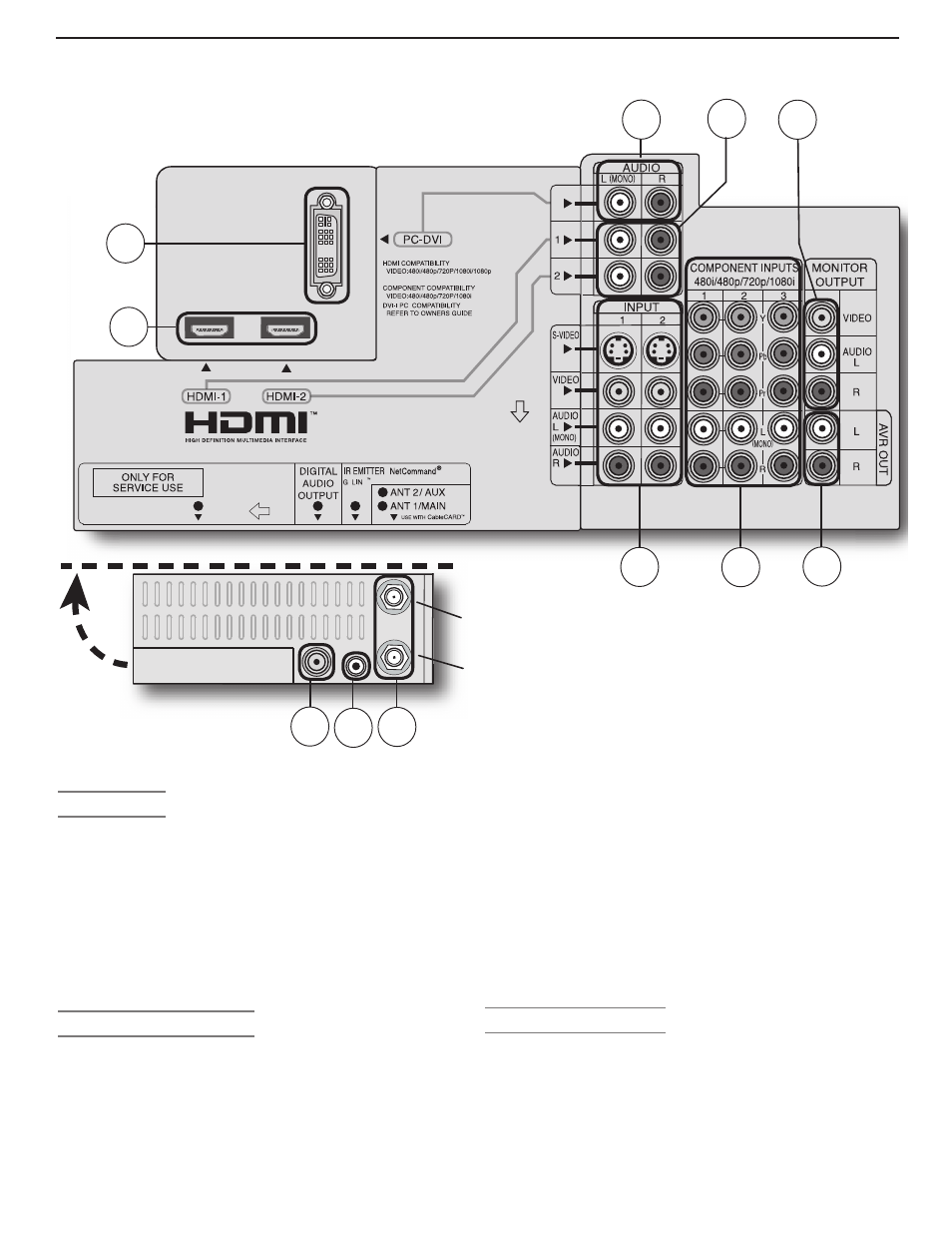

Back and Side Panels, continued
