Chapter 4. TV Operation and Features 55

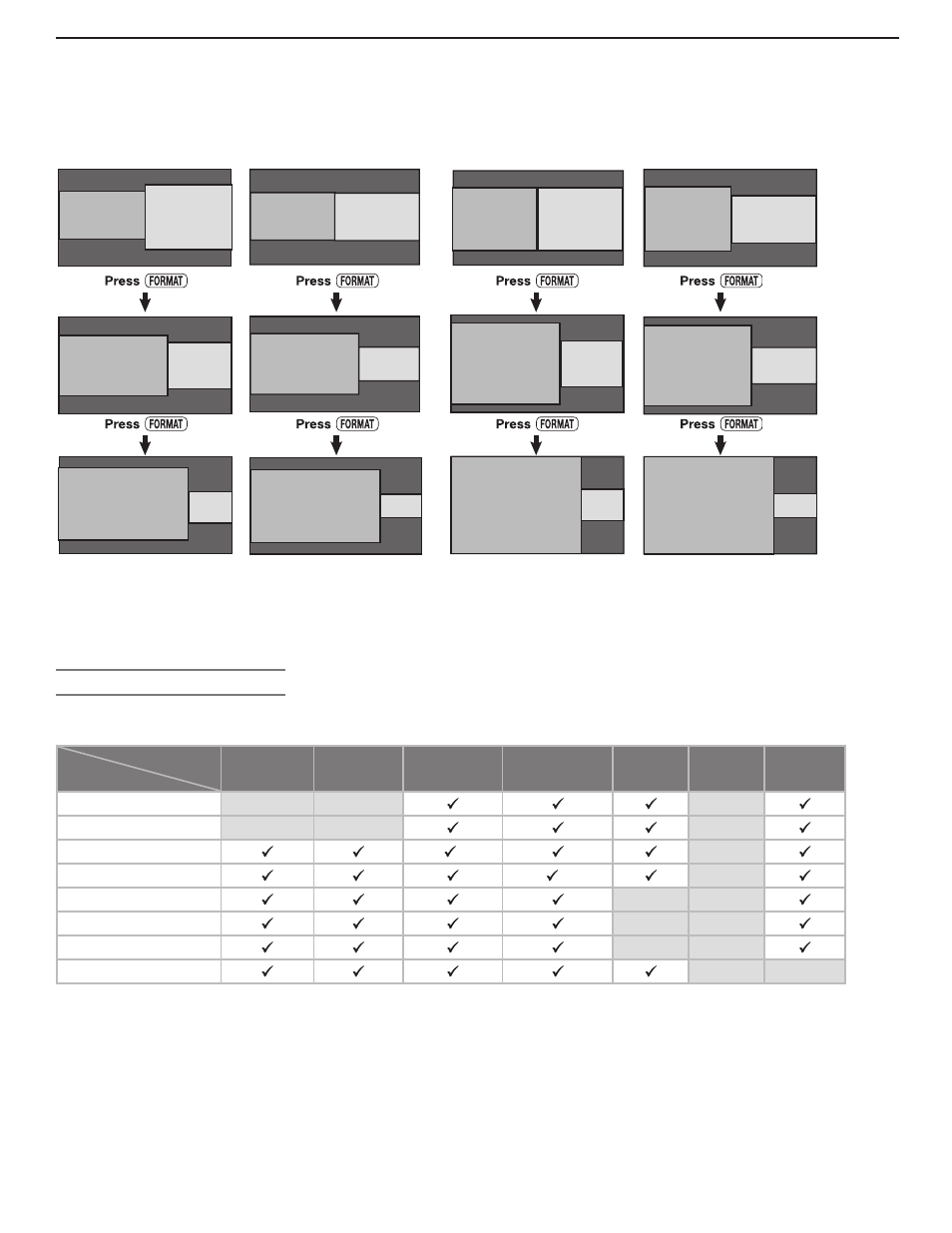

TV Inputs for Split Screen
Combinations of picture sources you can view with Split Screen. Check marks indicate available combinations.
Sub-Picture
Main
ANT 1 ANT 2 INPUT COMPONENT
HDMI
(no 1080p)
HDMI
(1080p)
IEEE 1394
ANT 1
ANT 2
INPUT
*
COMPONENT **
HDMI (no 1080p)
HDMI (1080p) ‡
PC-DVI ‡
IEEE 1394
*
Only when main picture and sub-picture are from different INPUT jacks.
** Only when main picture and sub-picture are from different COMPONENT jacks.
‡ HDMI 1080p and PC-DVI appear only as main picture in the Split Screen combinations marked in the
second row of screens above under “Split Screen Displays” and have only one size.
16:9 Main
16:9 Main
16:9 Main
16:9 Main
16:9 Main
16:9 Main
4:3 Sub-
4:3 Sub-
4:3 Sub-
4:3 Main Picture
4:3 Main Picture
4:3 Main Picture
16:9 Sub-
16:9 Sub-
16:9 Sub-
4:3 Main Picture
4:3 Main Picture
4:3 Main Picture
4:3 Sub-
4:3 Sub-
4:3 Sub-
16:9 Sub-
16:9 Sub-
16:9 Sub-
16:9 Main Picture/
4:3 Sub-Picture 16:9 Main Picture/
16:9 Sub-Picture 4:3 Main Picture/
4:3 Sub-Picture 4:3 Main Picture/
16:9 Sub-Picture
‡ ‡
Display choices. Press the FORMAT key repeatedly while in Split Screen mode to view different displays.
Note: When PC or HDMI 1080p is the signal source for the Main picture, only one size combination is available.
Pressing the Format button will not change the size of the images.
