Milwaukee 6509 User Manual
Page 6
page 6

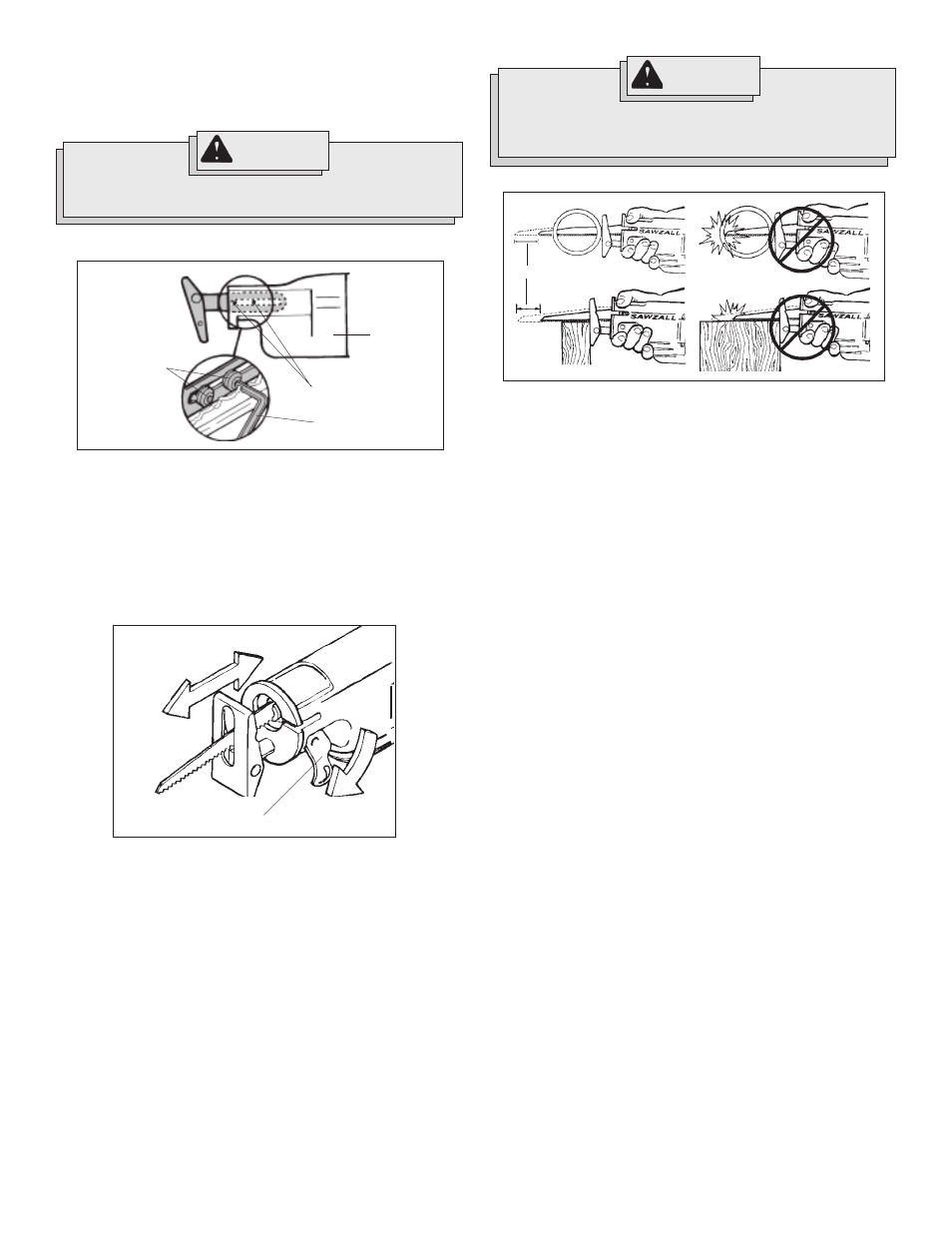

Adjustable Pivot Shoe
The shoe can be adjusted forward or backward to take advantage of the
unused portion of the blade or for special jobs requiring low blade
clearance.
6509 Series (Fig. 4)
Stroke
Fig. 6
WARNING!
To reduce the risk of injury, be sure the blade always
extends beyond the shoe and work throughout the stroke.
Blades may shatter if they impact the work or shoe (Fig. 6).
WARNING!
Do not operate Sawzall without a shoe. Striking the spindle
against the work may damage the reciprocating mechanism.
1. To adjust the shoe, place hex wrench through access holes in
insulating boot and loosen four (4) screws.
2. Move shoe to desired position
3. Tighten screws.
4. After adjusting the shoe, slowly pull the trigger to be sure the blade
always extends beyond the shoe and your work throughout the
stroke.
6519 Series (Fig. 5)
Fig. 4
Adjusting
screws
Hex wrench
Insulating
boot
Access holes
1. To adjust the shoe, pull out the shoe release lever 1/4 turn.
2. Slide the shoe forward or backward to the desired position.
3. To lock the shoe in position, push in the shoe release lever.
4. After adjusting the shoe, slowly pull the trigger to be sure the blade
always extends beyond the shoe and your work throughout the
stroke.
Fig. 5
Shoe release lever
