1. Hold power tools by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden
wiring or its own cord. Contact with a live wire will make exposed metal parts of the tool live and shock the operator.
2. Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against
your body leaves it unstable and may lead to loss of control.
3. Keep hands away from all cutting edges and moving parts.
4. Maintain labels and nameplates. These carry important information. If unreadable or missing, contact a MILWAUKEE service facility for a free
replacement.
5. WARNING! Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause
cancer, birth defects or other reproductive harm. Some examples of these chemicals are:
lead from lead-based paint
crystalline silica from bricks and cement and other masonry products, and
arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in
a well ventilated area, and work with approved safety equipment, such as those dust masks that are specifically designed to filter out microscopic
particles.
Amperes
Double Insulated
Symbology
Canadian Standards
Association
Underwriters
Laboratories, Inc.
Volts Alternating Current
No Load Strokes
per Minute (RPM)
RPM
0 - 2 800
0 - 2 800
Volts
AC
120
120
Cat.
No.
6509 Series
6519 Series
Specifications
Amps
10
10
Length of
Stroke
3/4"
1-1/8"
SPECIFIC SAFETY RULES

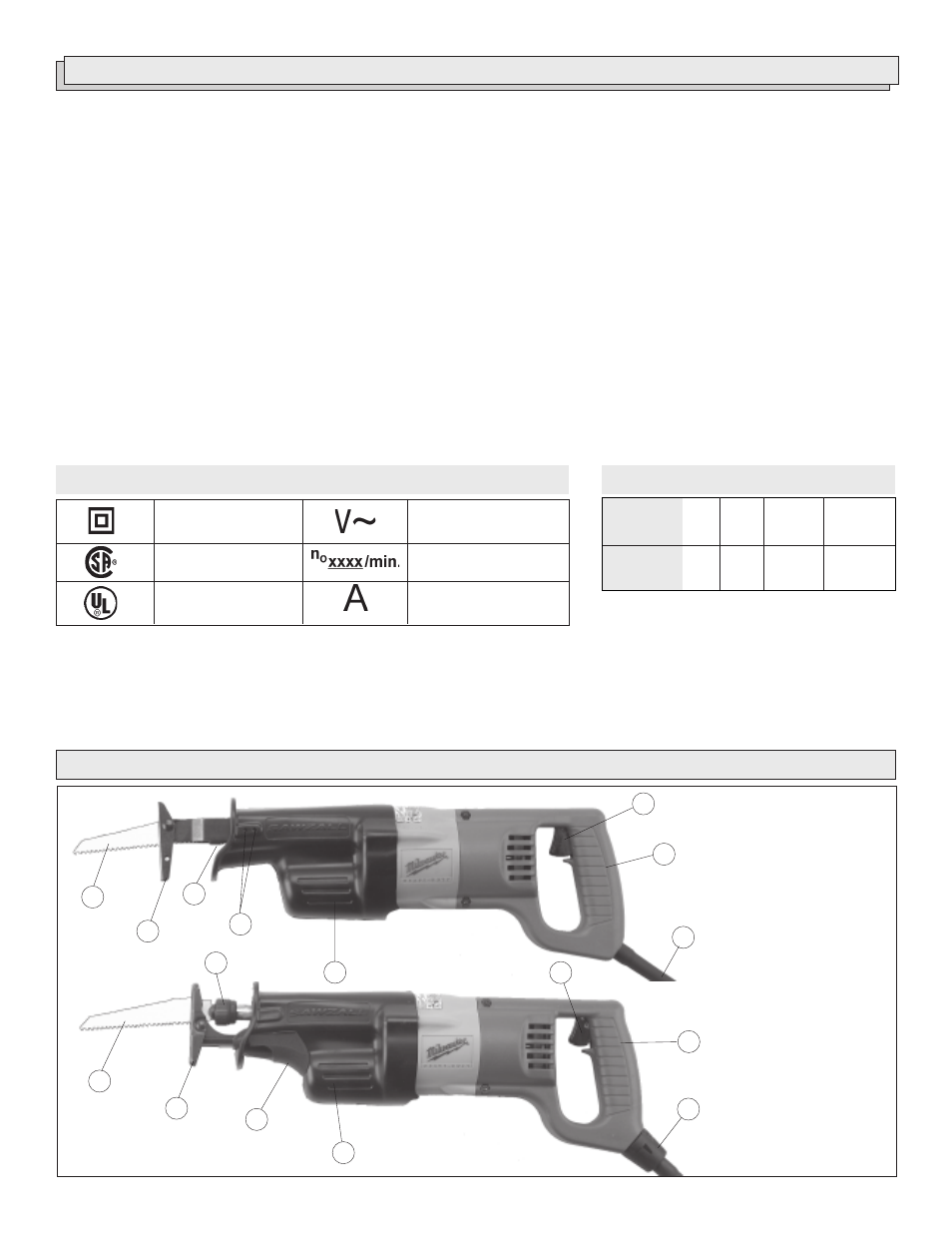

FUNCTIONAL DESCRIPTION
1. Handle
2. Trigger
3. Quik-Lok
®
blade clamp
4. Blade
5. Adjustable pivot shoe
6. Shoe release lever
7. Pivot shoe access holes
8. Insulating boot
9. Quik-Lok
®
cord
10. Fixed cord
6509 Series
2
1
3
5
7
4
8
10
6519 Series
1
3
2
4
6
5
9
8
