Milwaukee 58-01-1805 User Manual

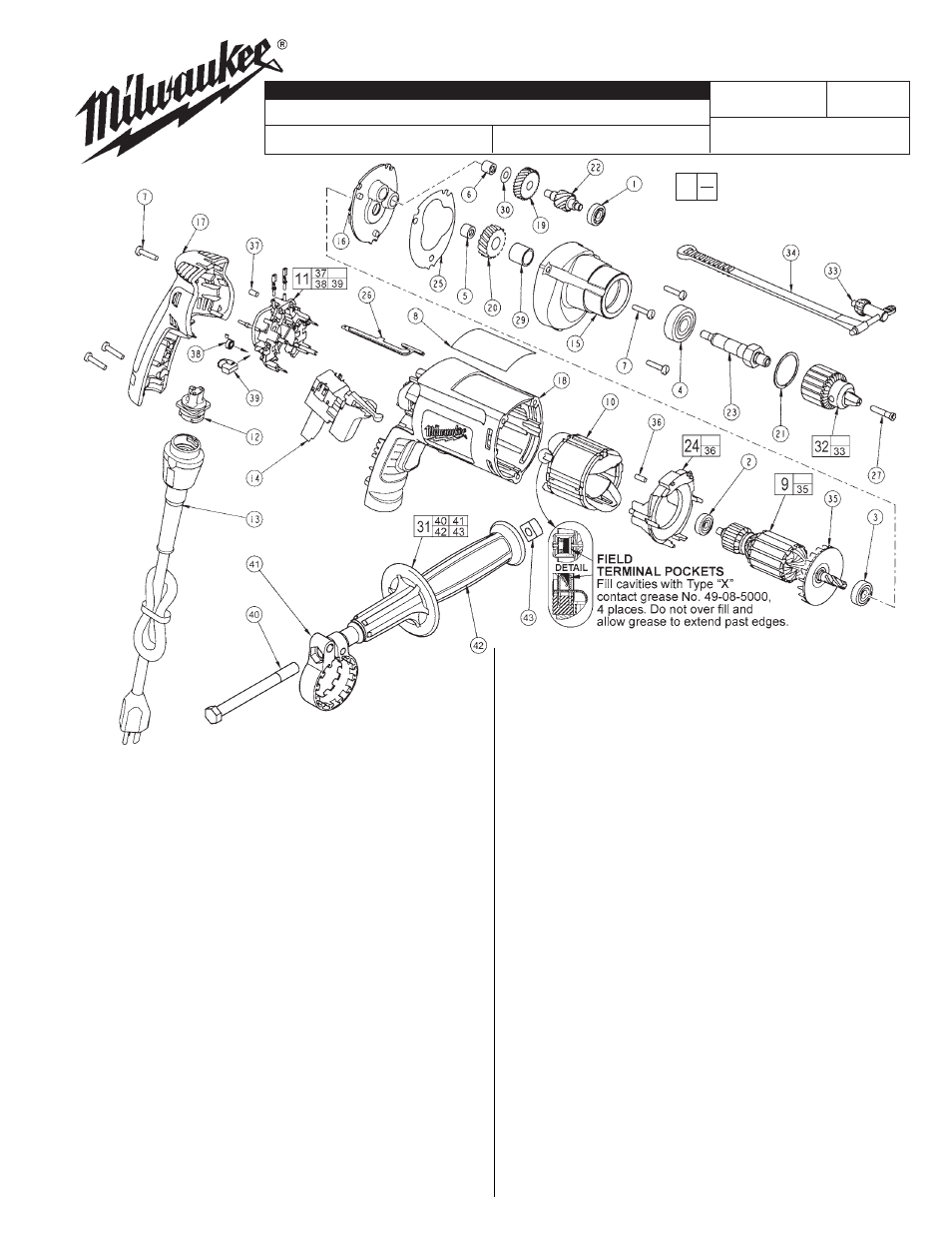

Service parts list, 1/4 inch drill, 058a
FIG.
PART NO.
DESCRIPTION OF PART
NO. REQ.
1
02-04-0640
Ball Bearing
(1)
2
02-04-0645
Ball Bearing
(1)
3
02-04-0852
Ball Bearing
(1)
4
02-04-1229
Ball Bearing
(1)
5
02-50-1611
Needle Bearing
(1)
6
02-50-2400
Needle Bearing
(1)
7
06-82-7275
7-18 x 3/4 Slotted Plastite T-20
(6)
8
12-99-2565
Service Nameplate
(1)
9
16-10-2215
Armature
(1)
10
18-07-2200
Field
(1)
11
22-18-1210
Brush Card Assembly
(1)
12
22-56-1010
Pin Housing Assembly
(1)
13
48-76-4008
Quik-Lok Cord Set
(1)
14
23-66-2585
Switch
(1)
15
28-14-2390
Gearcase
(1)
16
28-28-2320
Diaphragm
(1)
17
31-15-2030
Handle Halve
(1)
18
31-50-2040
Motor Housing
(1)
19
32-40-0100
Intermediate Gear
(1)
20
32-75-0115
Spindle Gear
(1)
21
34-80-2300
Retaining Ring
(1)
22
36-66-0125
Intermediate Shaft
(1)
23
38-50-5750
Spindle
(1)
24
42-14-0460
Baffle Assembly
(1)
25
43-44-0985
Gasket
(1)
26
44-60-1700
Ground Pin
(1)
27
45-04-0750
Chuck Screw
(1)
29
45-36-1095
Spindle Spacer
(1)
30
45-88-7990
Thrust Washer
(1)
WIRING INSTRUCTION
REVISED BULLETIN
DATE
SERVICE PARTS LIST
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 3
BULLETIN NO.
STARTING
SERIAL NO.
54-06-2800
58-01-1805
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
0100-20
CATALOG NO.
1/4 INCH DRILL
Jan. 2003
058A
FIG.
PART NO.
DESCRIPTION OF PART
NO. REQ.
31
49-15-0265
Side Handle Assembly
(1)
32
48-66-0070
1/4 Chuck
(1)
33
48-66-3200
Chuck Key
(1)
34
48-66-4080
Chuck Key Holder
(1)
35
22-84-0845
Fan
(1)
36
45-30-0030
Slug
(2)
37
45-30-0035
Slug
(1)
38
23-52-1610
Brush Spring
(2)
39
22-18-1310
Brush Assembly
(2)
40
06-75-2850
3/8-16 x 5-1/2 Hex Cap screw
(1)
41
42-68-0800
Side Handle Clamp
(1)
42
43-62-0845
Side Handle
(1)
43
06-54-0325
3/8-16 Square Nut
(1)
LUBRICATION (Type "Y" Grease, No. 49-08-5270)
• Place 5 gm. (.02 oz.) of grease on top of the inserted intermediate
ball bearing (1) and on the intermediate pinion (22).
• After inserting all gearing, place 13 gm. (.46 oz.) of grease at the
armature pinion location in the gearcase (15) and fill to the top of
the intermediate gear (19). Grease must contact at least 25% of
the intermediate gear teeth.
Before assembly, lightly coat all press fit areas with
lightweight spindle oil.
FIG.
NOTES:
4,20
Support the output ball bearing inside the gearcase before
pressing off the spindle gear.
5,6
Needle bearings to be pressed flush to .010 under flush
from the end which has the vendors identification.
00
0
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
Cat. No.
31-53-0205
Lock Button Plug
