Fan Belt
Removal
1.
Relieve pressure; page 5.

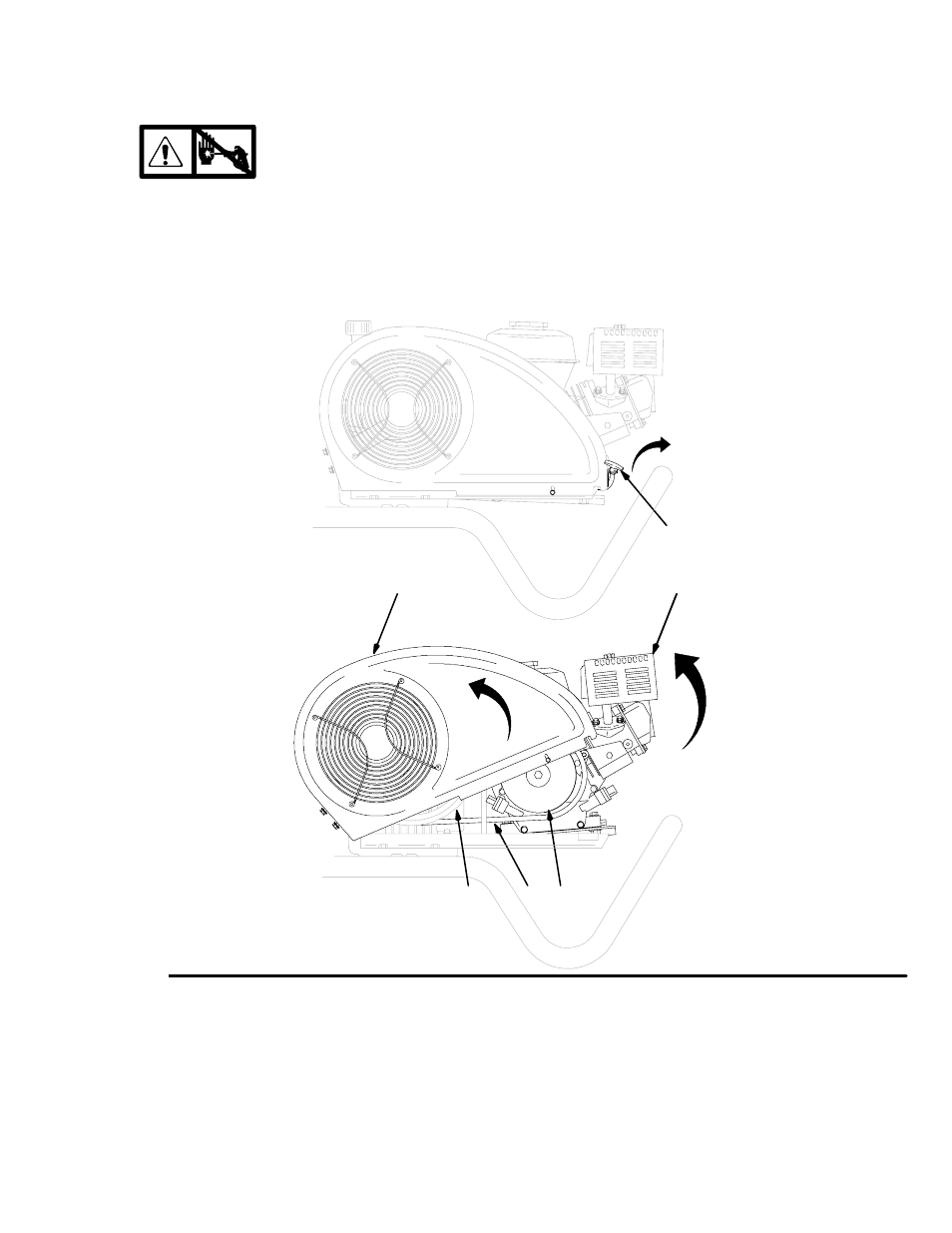

2. Fig. 3. Unlatch T-handle (125).
3. Rotate belt guard (117) up.
4. Lift engine (119) up to remove tension on belt (44).
5. Remove belt from pulley (43) and fan (96).
Installation
1. Thread belt (44) around drive pulley (43) and fan
pulley (96).
2. Let engine (119) down to put tension on belt.
3. Rotate belt guard (117) down.
4. Latch T-handle (125).
96
44
Fig. 3
119
43
ti2268a
125
119
117
