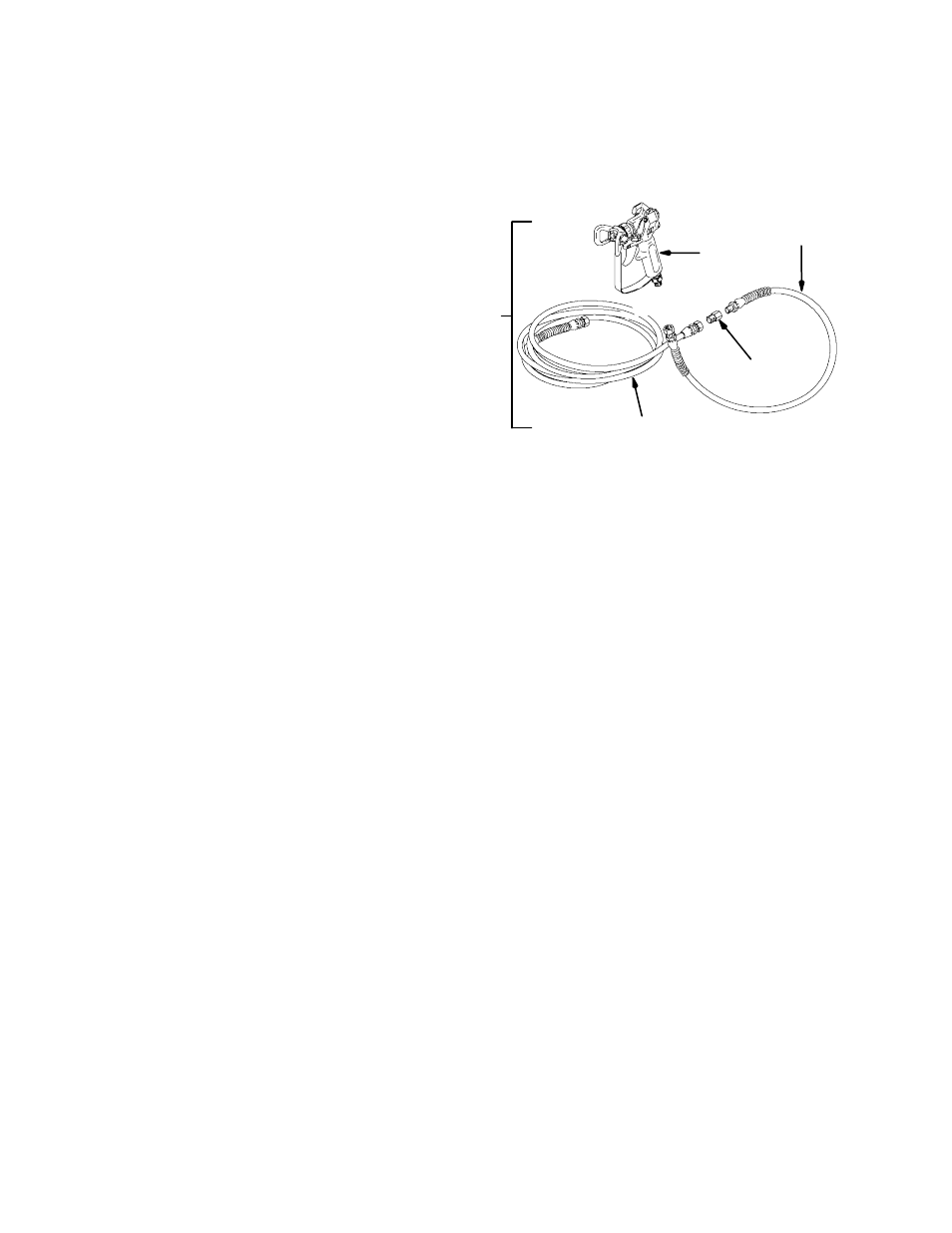

GH200 Sprayers with Spray Gun and Hoses
233941 Includes 201 and 202
Ref
No.
Part No. Description Qty
201 233940 GH200 1
See cover and Parts, pages 16 -- 21
202 287037 KIT, gun, Contractor 1
3300 psi (227 bar, 22.7 MPa)
includes 202a -- 202d
202a 240797 HOSE, grounded, nylon; 3/8 in. ID; 1
cpld 3/8--18 npsm; 50 foot (15 m);
spring guards both ends
3300 psi (227 bar, 22.7 MPa)
202b 238358 HOSE, grounded, nylon; 3/16 in. ID; 1
cpld 1/4 npt(m) x 1/4 npsm(f);
3 foot (0.9 m); spring guards both ends
3300 psi (227 bar, 22.7 MPa)
202c 246220 Contractor Spray Gun 1
Includes 517 RAC R X SwitchTip
t
and HandTite
t
Guard
See 309639 for parts
202d 159841 ADAPTER, 3/8 X 1/4 in. npt 1
202c
200b
202a
0160
202d
202
