310548 10
Engine
Removal
NOTE: All service to the engine must be performed by
an authorized HONDA dealer.
1.
Relieve pressure; page 5.
2. Fig. 4. Loosen motor clamp (55). Swing motor
retainer bracket (105) out.
3. Do Fan Belt, Removal; page 9.
4. Remove engine (119) and rocker plate (99) from
sprayer.
5. Remove four screws (23), washers (7) and nuts
(24) and remove rocker plate (99), dampeners
(153) and washers (154) from engine (119).
Installation
1. Install rocker plate (99), dampeners (153) and
washers (154) on engine (119) with four screws
(23), washers (7) and nuts (24); torque to 125 in-lb
(14.1 N·m).
2. Install engine and rocker plate (99) on sprayer.
3. Do Fan Belt, Removal; page 9.
4. Swing motor retainer bracket (105) in. Tighten
motor clamp (55).
ti2269a

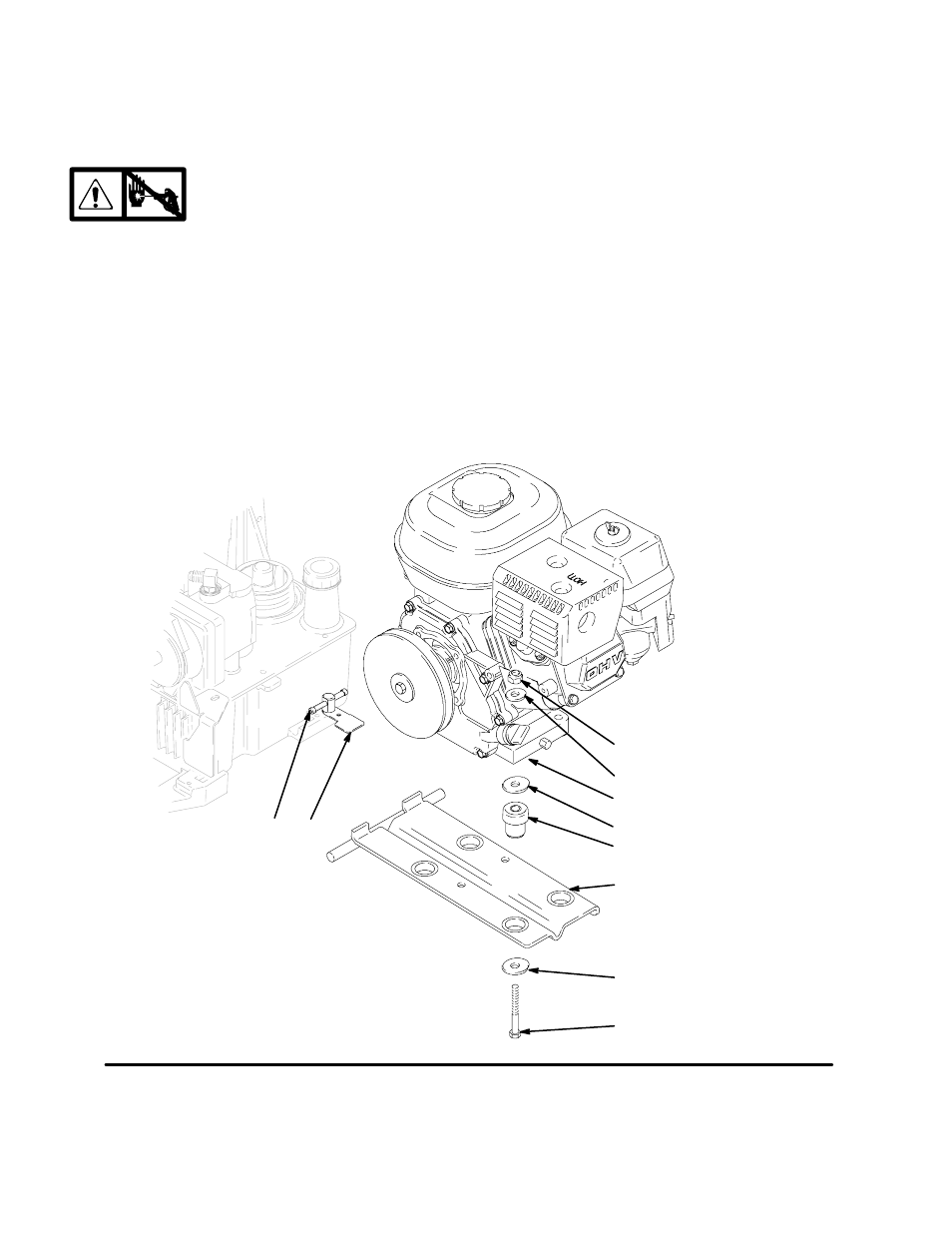

Fig. 4
119
99
23
154
105
24
55
7
154
153
