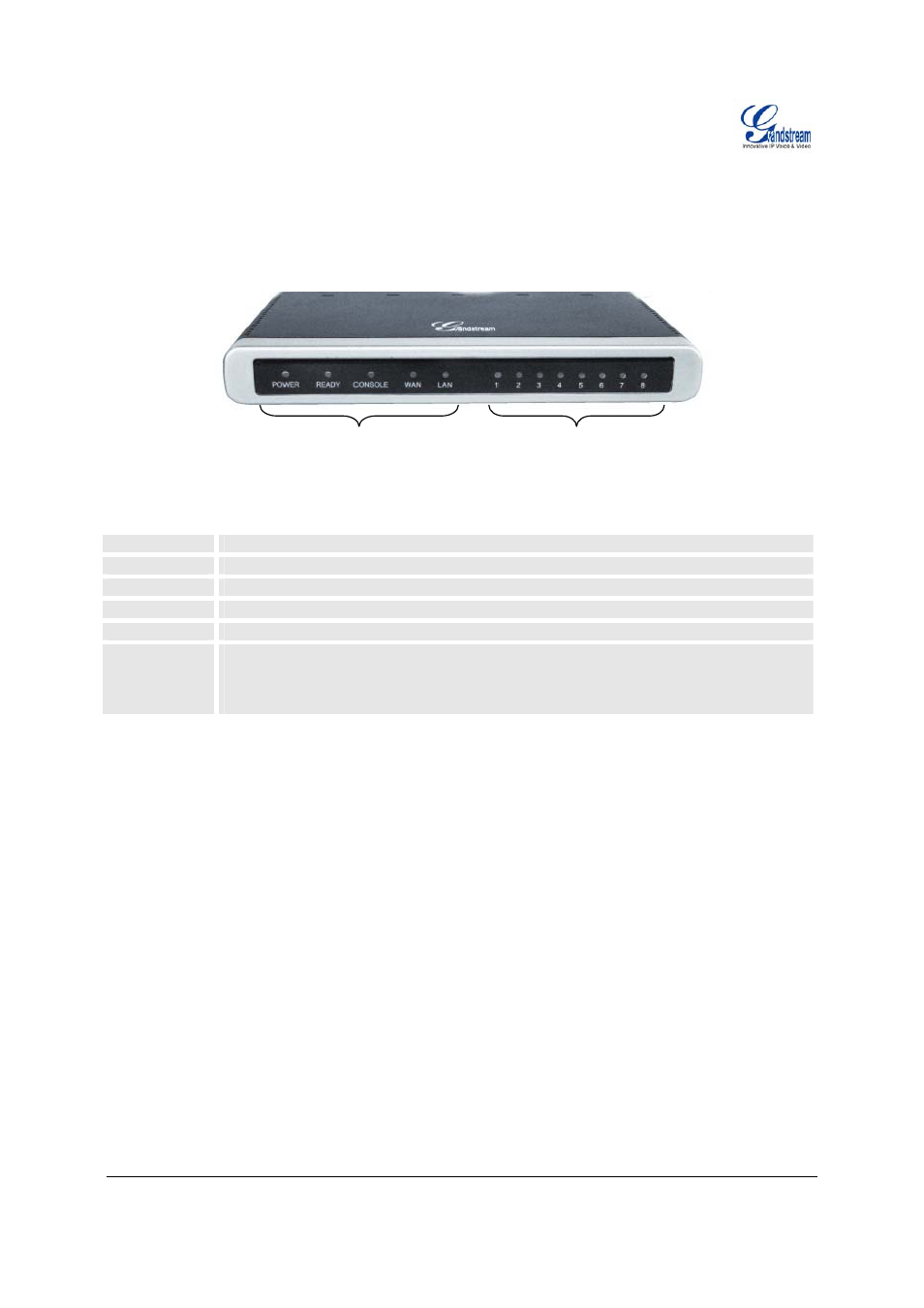

Once the GXW is turned on and configured, the front display panel indicates the status of the unit.
F
IGURE
2:
D
IAGRAM OF
GXW–400
X
D
ISPLAY
P
ANEL
T
ABLE
2:
D
EFINITIONS OF THE
GXW
D
ISPLAY
P
ANEL
Power LED
Indicates Power. Remains ON when Power is connected and turned ON.
Ready LED
Remains ON after boot-up.
Console
Turns ON when Console port is being used.
LAN LED
Indicates LAN (or WAN) port activity
WAN LED
Indicates PC (or LAN) port activity
LEDs 1 - 8
Indicate status of the respective FXS Ports on the back panel
Busy - ON (Solid Green)
Available - OFF
Slow blinking FXS LEDs indicates Voice Mail for that port.
NOTE: All LEDs display green when ON.
Slow blinking of Power, WAN and LAN LED together indicate the product in firmware upgrading
or provision state.
S
AFETY
C
OMPLIANCES
The GXW–400x is compliant with various safety standards including FCC/CE. Its power adaptor is
compliant with UL standard.
Warning:
use only the power adapter included in the GXW–400x package.
Using an alternative power adapter may permanently damage the unit.
W
ARRANTY
Grandstream has a reseller agreement with our reseller customer. End users should contact the company
from whom you purchased the product for replacement, repair or refund.
If you purchased the product directly from Grandstream, contact your Grandstream Sales and Service
Representative for a RMA (Return Materials Authorization) number. Grandstream reserves the right to
remedy warranty policy without prior notification.
FXS port status
GXW- 400x
Display LEDs
