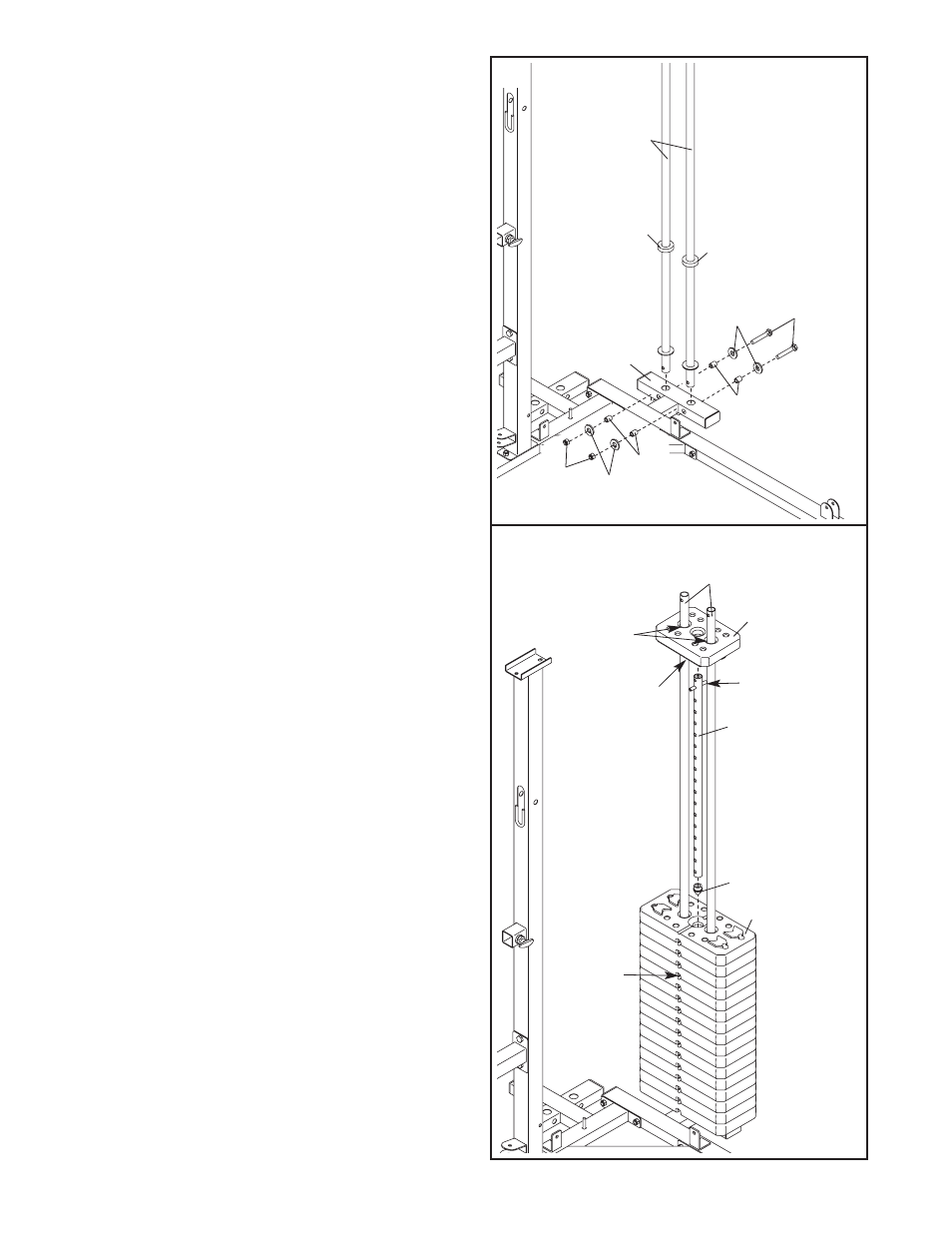

10. Slide sixteen Weights (30) onto the Weight
Guides (9). Make sure the slots for the Weight
Pin (not shown) are on the indicated side and
on the bottom of the Weights.
Press a Weight Tube Bumper (35) into a Weight
Tube (34). Insert the Weight Tube into the stack
of Weights (30) as shown.
Lubricate the indicated holes in a Top Weight (31)
with grease. Slide the Top Weight onto the Weight
Guides (9). Make sure that the groove on the
Top Weight for the Weight Tube (34) pin is on
the bottom of the Top Weight.
Lubricate
Slot
Pin
Groove
Pin
9
34
31
35
30
10
9. Slide two Weight Bumpers (50) onto two Weight
Guides (9) as shown.
Attach the Weight Guides (9) to the Left Base (2)
with two M10 x 78mm Bolts (85), four M10
Washers (74), four 17mm Spacers (58), and two
M10 Nylon Locknuts (75).
9
75
58
85
74
74
58
9
50
50
2
