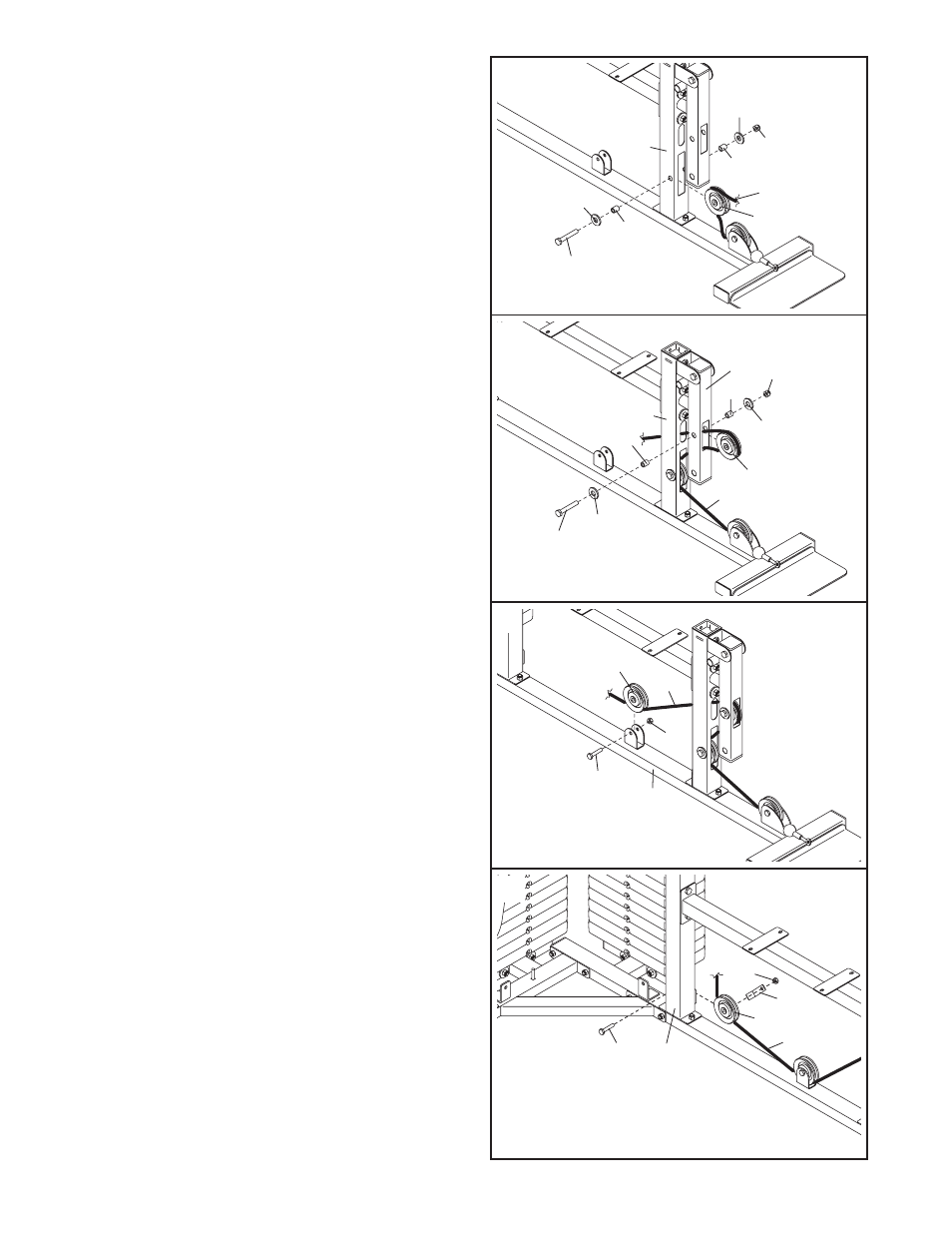

32. Wrap the Low Cable (63) around a 90mm Pulley
(38). Attach the Pulley inside the Left Leg (8) with
an M10 x 78mm Bolt (85), two M10 Washers
(74), two 17mm spacers (58), and an M10 Nylon
Locknut (75).
33. Route the Low Cable (63) through the Leg Lever
(18), around a 90mm Pulley (38), and back
through the Leg Lever and Left Leg (8). Attach the
Pulley inside the Leg Lever with an M10 x 67mm
Bolt (92), two M10 Washers (74), two 12mm
Spacers (57), and an M10 Nylon Locknut (75).
32
33
38
57
57
75
74
38
63
18
8
8
58
58
63
85
75
74
74
16
34. Wrap the Low Cable (63) under a 90mm Pulley
(38). Attach the Pulley to the Left Base (2) with an
M10 x 45mm Bolt (78) and an M10 Nylon Locknut
(75).
35. Wrap the Low Cable (63) under a 90mm Pulley
(38). Attach the Pulley and a Cable Trap (37) to
the indicated bracket on the Left Upright (6) with
an M10 x 48mm Bolt (23) and an M10 Nylon
Locknut (75). Make sure the Cable Trap is ori-
ented to hold the Cable in the groove of the
Pulley.
34
35
75
2
38
63
23 6
63
38
37
75
78
92
