Gold's Gym XR66 GGSY69530 - Manual (Page 11)

11

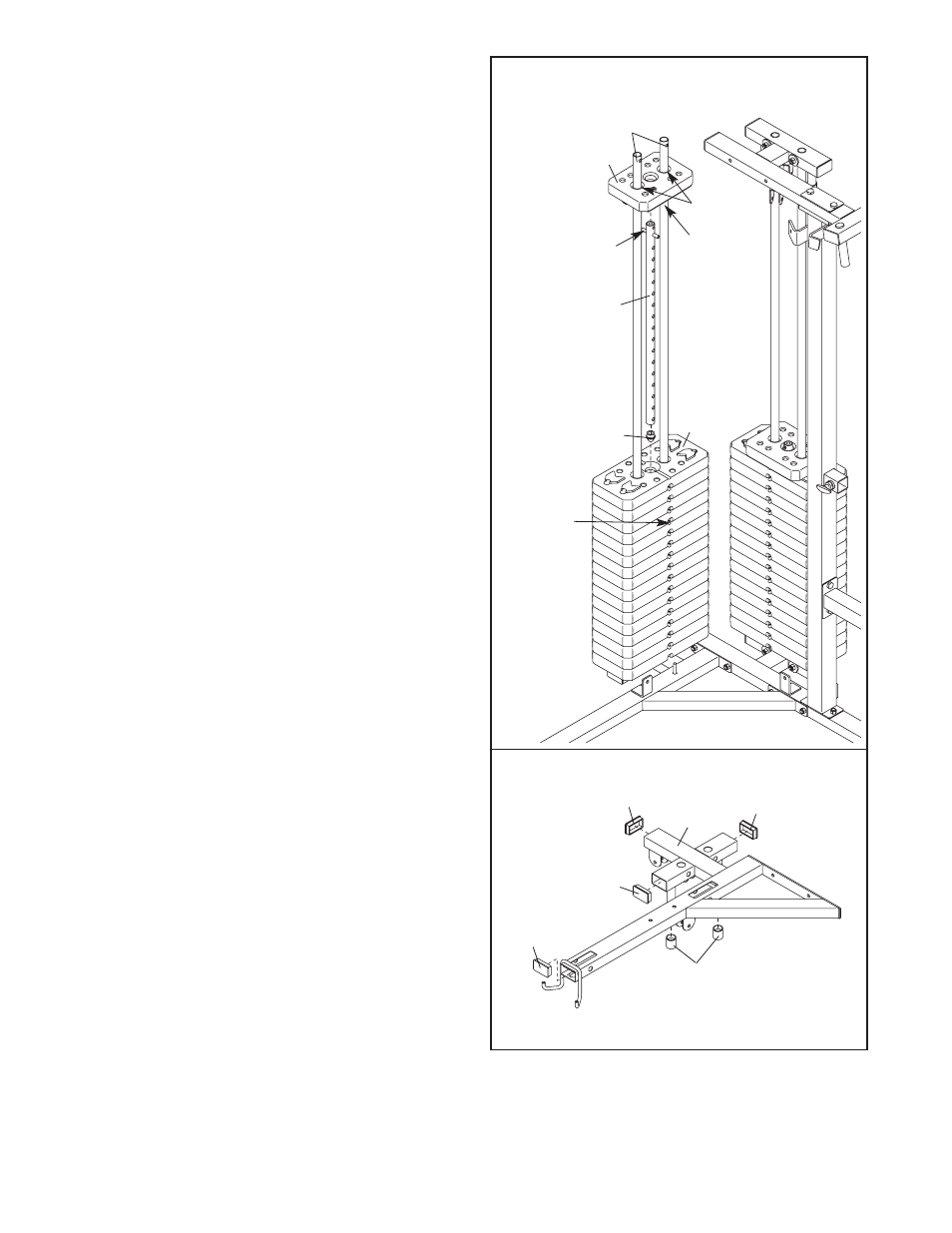

14. Slide sixteen Weights (30) onto the Weight
Guides (9). Make sure the slots for the Weight
Pin (not shown) are on the indicated side and
on the bottom of the Weights.
Press a Weight Tube Bumper (35) into a Weight
Tube (34). Insert the Weight Tube into the stack
of Weights (30) as shown.
Lubricate the indicated holes in a Top Weight (31)
with grease. Slide the Top Weight onto the Weight
Guides (9). Make sure that the groove on the
Top Weight for the Weight Tube (34) pin is on
the bottom of the Top Weight.
15. Press four 40mm x 60mm Inner Caps (42) into
the Right Top Frame (10). Press two 25mm
Round Outer Caps (47) onto the Right Top
Frame.
14
15
47
42
42
42
10
42
Lubricate
Slot
Pin
Groove
Pin
9
34
35
31
30
