7

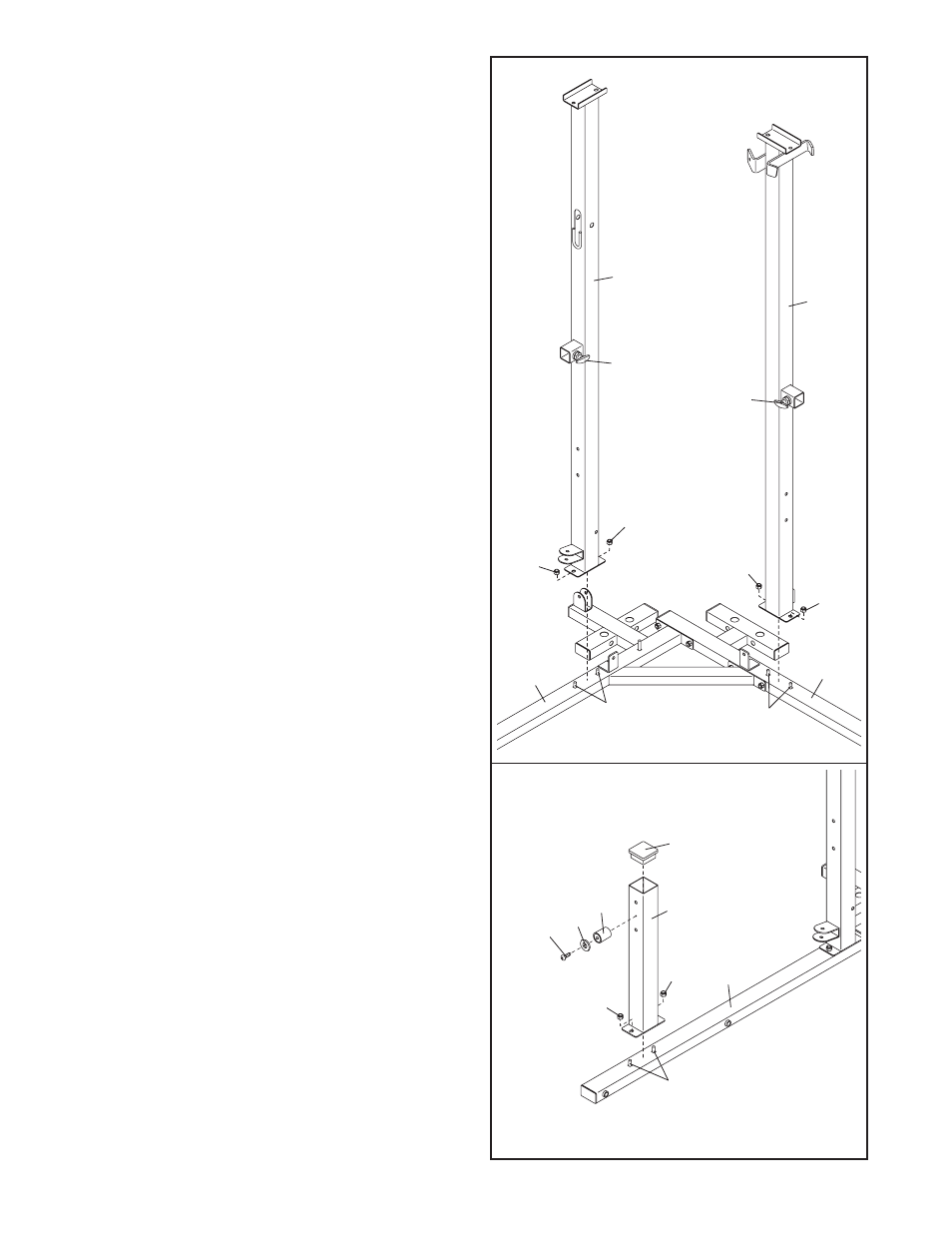

4. Attach the Right Upright (5) to the Right Base (1)
with the indicated two M10 x 53mm Carriage
Bolts (83) and two M10 Nylon Locknuts (75). Do
not tighten the Locknuts yet.
Attach the Left Upright (6) to the Left Base (2)
with the indicated two M10 x 53mm Carriage
Bolts (83) and two M10 Nylon Locknuts (75). Do
not tighten the Locknuts yet.
Attach two Backrest Knobs (48) to the Right and
Left Uprights (5, 6).
5. Press a 60mm Square Inner Cap (46) into the
Right Leg (7). Attach a Leg Bumper (49) to the
Right Leg with an M4 x 25mm Self-tapping Screw
(77) and an M4 Washer (93).
Attach the Right Leg (7) to the Right Base (1)
with the indicated two M10 x 53mm Carriage
Bolts (83) and two M10 Nylon Locknuts (75). Do
not tighten the Locknuts yet.
4
5
5
6
75
75
1
83
75
48
48
83
83
46
77
93
1
49
75
75
75
2
7
