10
13. Slide two Weight Bumpers (50) onto the other two
Weight Guides (9).
Attach the Weight Guides (9) to the Right Base
(1) with two M10 x 78mm Bolts (85), four M10
Washers (74), four 17mm Spacers (58), and two
M10 Nylon Locknuts (75).
85
74
74
58
58
50
50
1
9
58
74
75

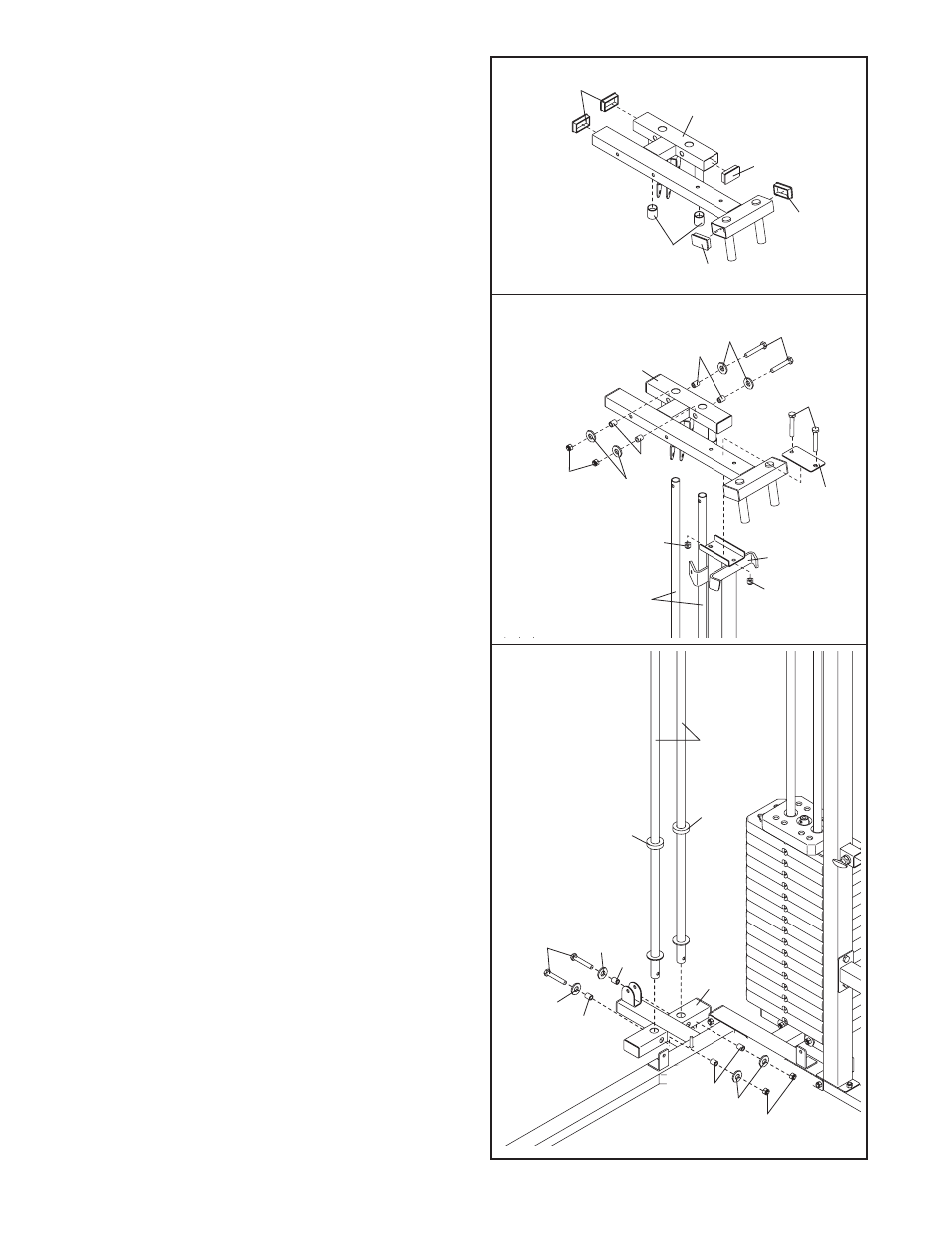

11. Press three 40mm x 60mm Inner Caps (42) into
the Left Top Frame (11). Press two 40mm x
60mm Thick Inner Caps (91) into the Left Top
Frame. Press two 25mm Round Outer Caps (47)
onto the Left Top Frame.
12. Attach the Left Top Frame (11) to the Weight
Guides (9) with two M10 x 78mm Bolts (85), four
M10 Washers (74), four 17mm Spacers (58), and
two M10 Nylon Locknuts (75). Do not tighten the
Locknuts yet.
Attach the Left Top Frame (11) to the Left Upright
(6) with two M10 x 60mm Bolts (82), a Support
Plate (29), and two M10 Nylon Locknuts (75). Do
not tighten the Locknuts yet.
11
12
13
6
91
91
11
29
75
75
75
9
47
11
42
42
82
85
74
74
58
58
