12

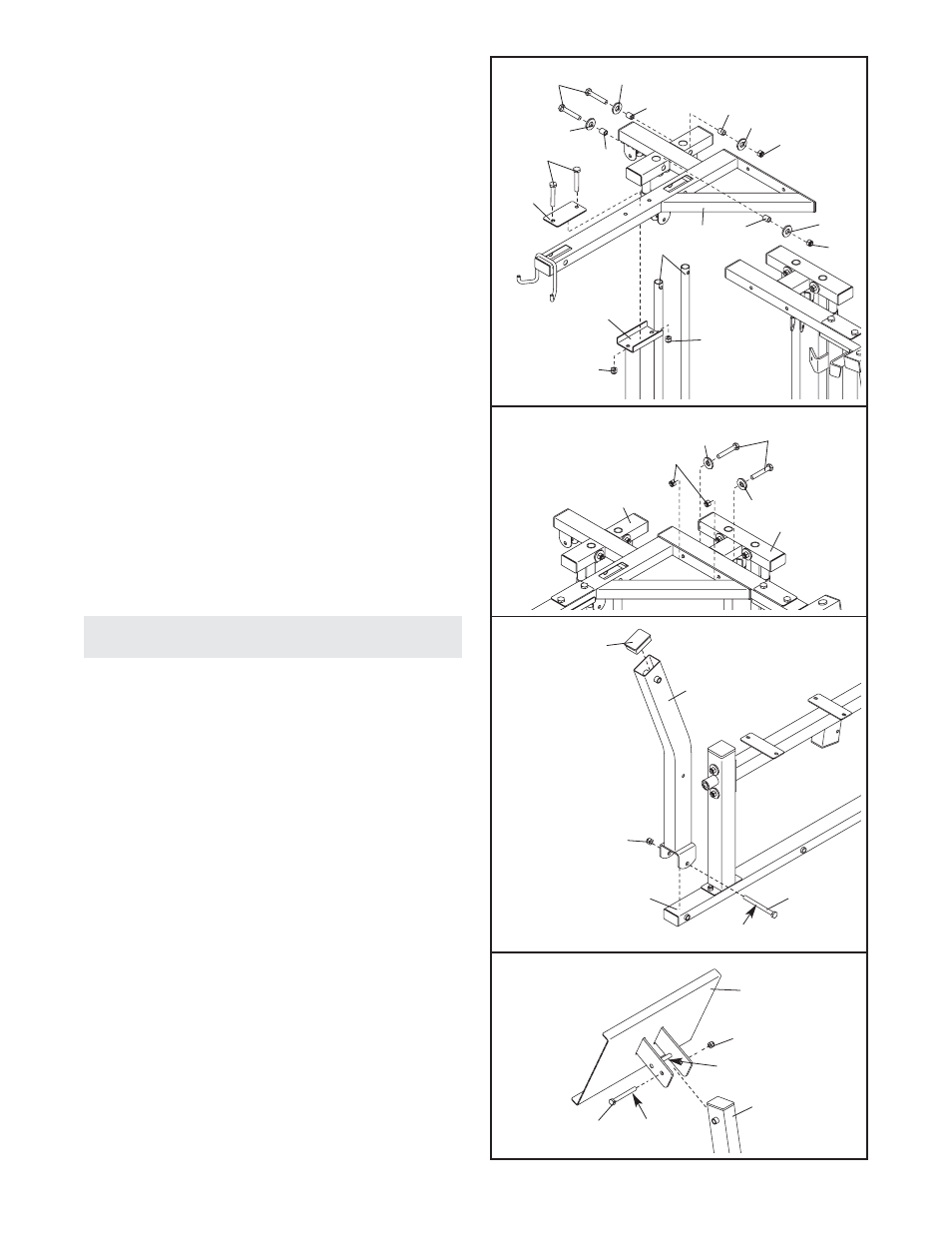

16. Attach the Right Top Frame (10) to the Weight
Guides (9) with two M10 x 78mm Bolts (85), four
M10 Washers (74), four 17mm Spacers (58), and
two M10 Nylon Locknuts (75). Do not tighten the
Locknuts yet.
Attach the Right Top Frame (10) to the Right
Upright (5) with two M10 x 60mm Bolts (82), a
Support Plate (29), and two M10 Nylon Locknuts
(75). Do not tighten the Locknuts yet.
18. Open the part bag labeled “ARM ASSEMBLY.”
Press a 50mm x 75mm Inner Cap (45) into the
Leg Press Arm (12).
Lubricate an M12 x 102mm Bolt (81) with grease.
Attach the Leg Press Arm (12) to the Right Base
(1) with the Bolt and an M12 Nylon Locknut (95).
Do not overtighten the Locknut; the Leg Press
Arm must be able to pivot easily.
19. Lubricate an M12 x 104mm Bolt (67) with grease.
Attach the Leg Press Plate (13) to the Leg Press
Arm (12) with the Bolt and an M12 Nylon Locknut
(95). Make sure the bar is closer to the
ground. Do not overtighten the Locknut; the
Leg Press Plate must be able to pivot easily.
17. Attach the Right Top Frame (10) to the Left Top
Frame (11) with two M10 x 80mm Bolts (86), two
M10 Washers (74), and two M10 Nylon Locknuts
(75).
Tighten the M10 Nylon Locknuts (75) used in
steps 3–17.
16
85
58
58
58
58
10
9
5
75
75
74
82
29
74
74
74
75
75
17
18
10
75
11
86 74
74
45
81
Lubricate
95
12
1
Arm Assembly
67
13
Lubricate
Bar
95
12
19
