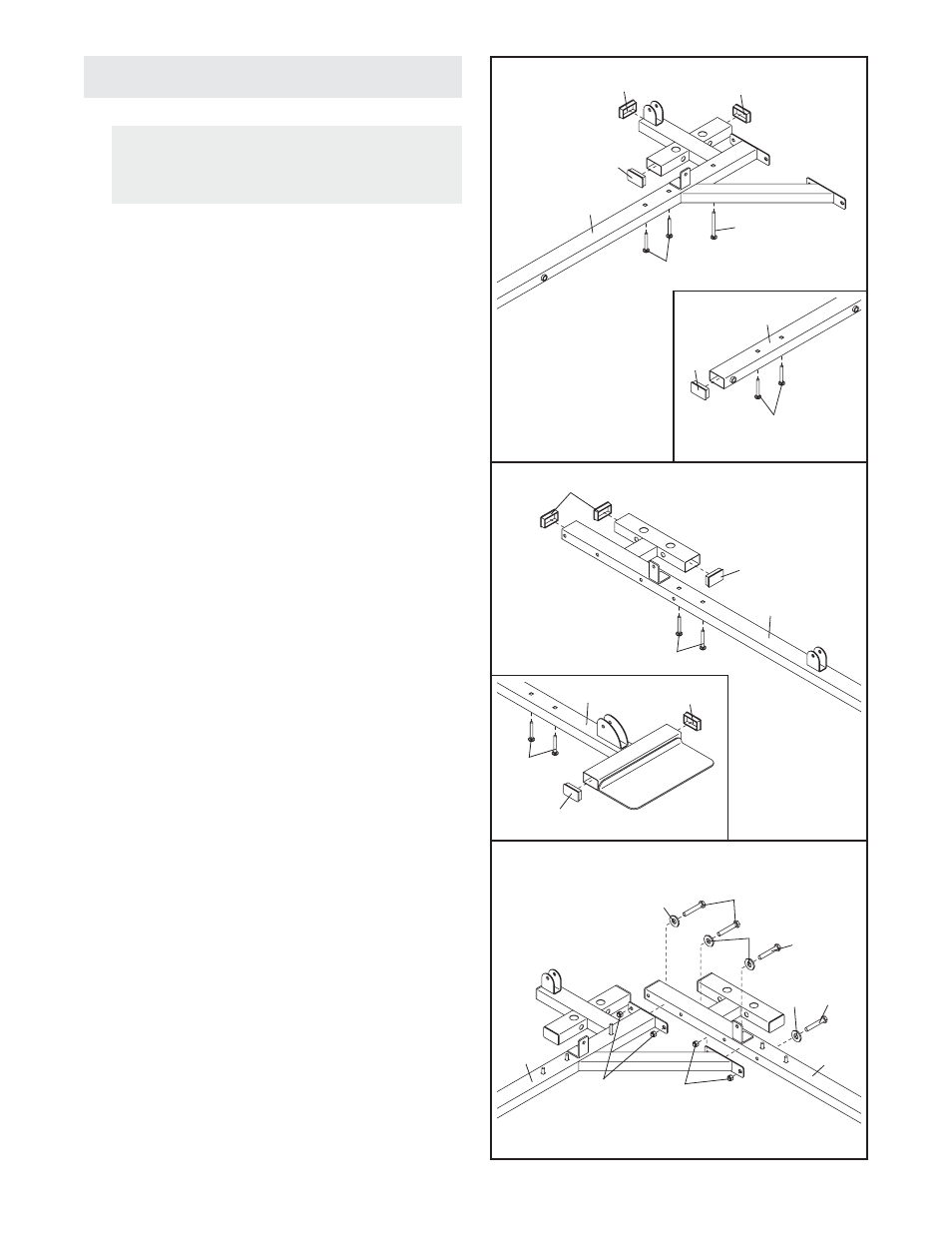

1.
Locate and open the parts bags labeled
“FRAME ASSEMBLY 1” and “FRAME ASSEM-
BLY 2.”
Press four 40mm x 60mm Inner Caps (42) into
the Right Base (1).
Insert four M10 x 53mm Carriage Bolts (83) and
an M10 x 78mm Carriage Bolt (84) up through
the Right Base (1). Note: It may be helpful to
place tape over the heads of the Carriage
Bolts to hold them in place.
2. Press five 40mm x 60mm Inner Caps (42) into
the Left Base (2).
Insert four M10 x 53mm Carriage Bolts (83) up
through the Left Base (2). Note: It may be help-
ful to place tape over the heads of the
Carriage Bolts to hold them in place.
Before beginning assembly, make sure you
understand the information in the box on
page 5.
6
3. Attach the Right Base (1) to the Left Base (2) with
four M10 x 78mm Bolts (85), four M10 Washers
(74), and four M10 Nylon Locknuts (75). Do not
tighten the Locknuts yet.
Frame Assembly 1
2
3
42
42
42
42
1
84
1
83
83
75 75
2
2
1
85
74
74
2
85
85 74
42
42
42
42
83
83
