6 307-730
SETUP
SUCTION HOSE
PRIMING TUBE
INLET VALVE
MOTOR
ON/OFF SWITCH
POWER SUPPLY CORD
ROLLER VALVE
PRIMING VALVE
PAINT FILTER
25 FT. (7.6 M) HOSE
18 INCH EXTENSION
9 INCH ROLLER FRAME
ROLLER COVER
0285
USE TWO WRENCHES
TO TIGHTEN
SPRING GUARD MUST BE
AT ROLLER VALVE INLET
TRIGGER
HAND TIGHTEN ONLY
TO AVOID CRACKING
ROLLER COVER
USE TWO WRENCHES
TO TIGHTEN
BE SURE GASKETS ARE
INSTALLED AT THESE JOINTS
USE TWO WRENCHES
TO TIGHTEN

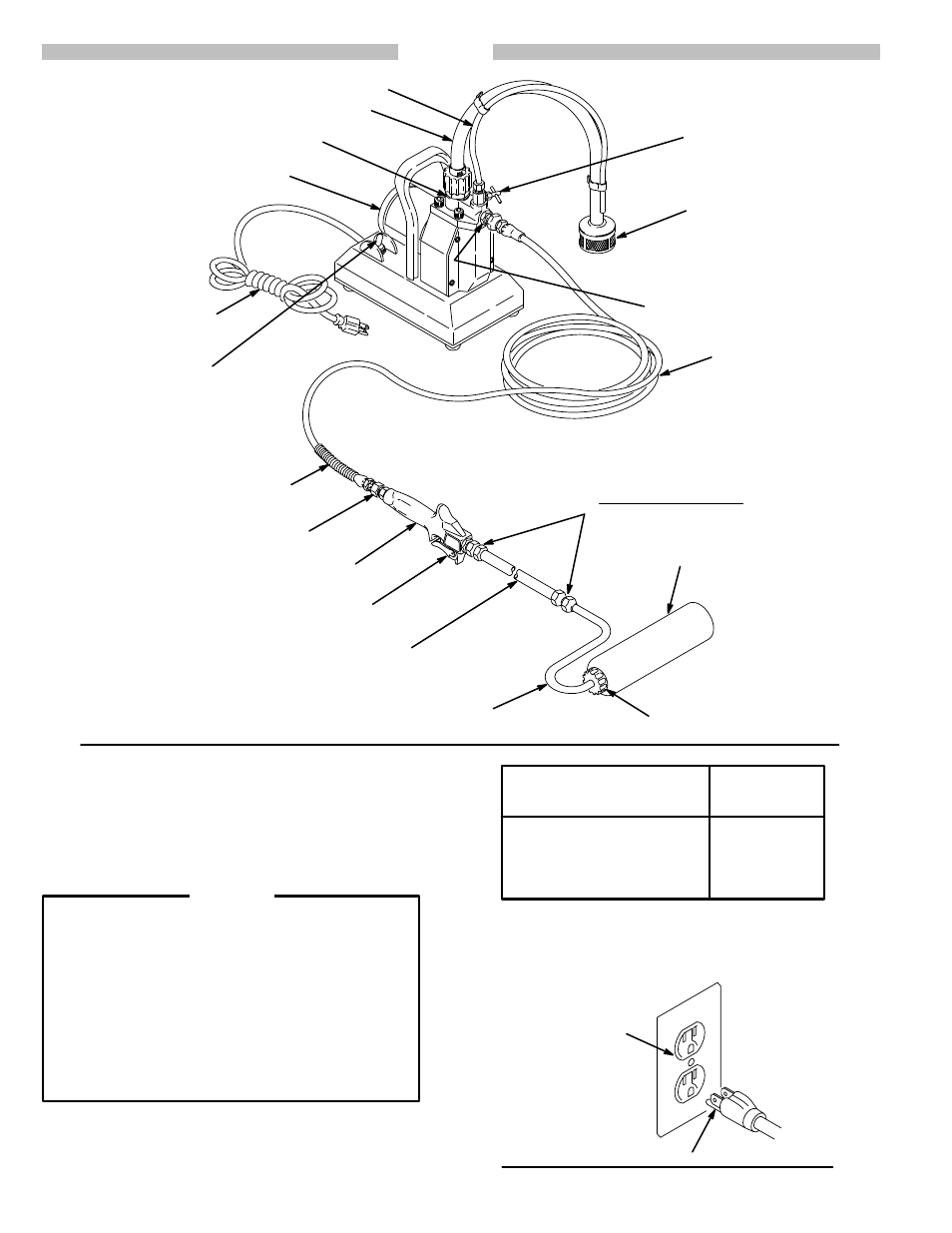

Fig 1
1. Remove all parts from the boxes and assemble them
as shown in Fig 1, following the notes on the drawing.
2. Prepare the paint according to the manufacturer ’s
recommendations. Remove any skin that may have
formed on the top of the paint. If necessary, thin the
paint.
Never remove the third (grounding) pin of the power
supply cord. Be sure the outlet is properly grounded.
In the event of an electrical short circuit, grounding
reduces the risk of an electric shock by providing an
escape wire for the electric current.
Inspect the power supply cord and extension cord
before each use. Be sure they are in good condition
and have undamaged three-pin plugs. Replace im-
mediately if either cord shows signs of wear or
damage.
WARNING
3. Plug the power supply cord into a properly grounded,
120 V electrical outlet. See Fig 2. Do not use an
adapter. All extension cords must have three wires.
Use the chart below for selecting the appropriate
wire gauge for the extension cord.
Cord Length Extension
feet (meters) Wire Gauge
1–100 (1–30) 18
100–200 (30–61) 16
200–300 (61–92) 14
over 300 (over 92) 12
Fig 2
0286
GROUNDED
OUTLET
GROUNDING PIN
