Magnum 4K16 Switches Installation and User Guide (12/05)
17
www GarrettCom com . .
1. Using standard twisted pair media, insert either end of the cable with an RJ-45
plug into the RJ-45 connector of the port. Note that, even though the connector is
shielded, either unshielded or shielded cables and wiring may be used.
2. Connect the other end of the cable to the corresponding device
3. Use the LINK LED to ensure proper connectivity by noting that the LED
will be illuminated when the unit is powered and proper connection is
established.

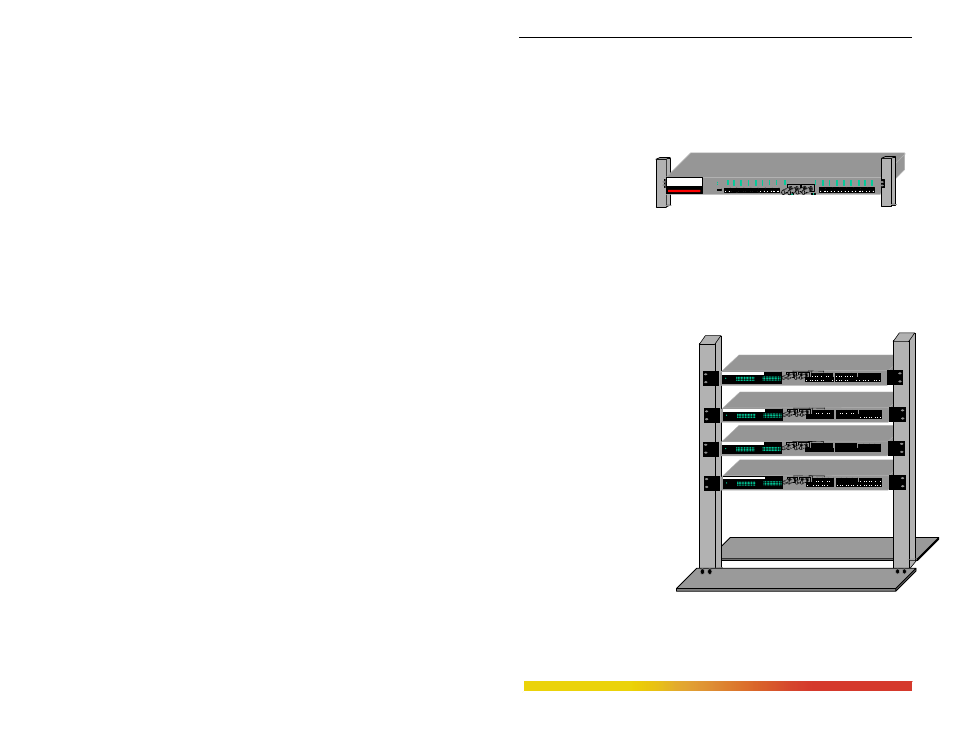

3.3 Rack-mounting
Installation of a
Magnum 4K16 Switch in a
19” rack is a simple
procedure. The units are 1U (1.70”) high. When properly installed, the front-mounted
LED status indicators should be in plain view and easy to read. Rack-mount installation
requires special 19” rack-mounted brackets and screws (included with each 4K16 unit).
The brackets attach to the front sides of the Switch, which is then fastened into a standard
19” RETMA rack.
The 23” brackets and ETSI brackets are also available (optional) for rack-
mounting of Magnum 4K Series Switches. The 23” brackets are popular in the Telco
industry where they are a
standard for Central Office rack
mounting purposes. The 23”
brackets are mainly being used
for larger equipment assemblies
in rack-mounting frames, and are
frequently accessed in operation
from both sides.
The ETSI (European
Telephone Standard) brackets
are similar to the 19” brackets
but use metric dimensions.
The optional 23”
brackets and the ETSI brackets
come as a pair in a package,
along with the necessary screws
for attaching the brackets to the
sides of the Magnum Switch unit.
Fig 3.3 Multiple Magnum 4K16 units rack-mounted in a 23” Rack-mount frame
