Installation
Mount the Gun
Manifolds 241161 and 241162
To mount the gun on a reciprocating arm [0.5 in.
(13 mm) diameter maximum], insert the bar (A)
through the hole in the manifold as shown in Fig. 2.
Secure the gun to the bar by tightening the mounting
screw (B). The tip of the gun should be 8 to 10 in. (200
to 250 mm) from the surface of the object being
sprayed.
All Manifolds
To mount the gun on a stationary support, see Fig. 3.
Also refer to the mounting hole layout on page 30.
Attach the gun to the support with two M5 x 0.8
capscrews (C). The screws must be long enough to
engage the threaded holes in the gun manifold to a
depth of 1/4 in. (6 mm). The tip of the gun should
usually be 8 to 10 in. (200 to 250 mm) from the surface
of the object.
8574A

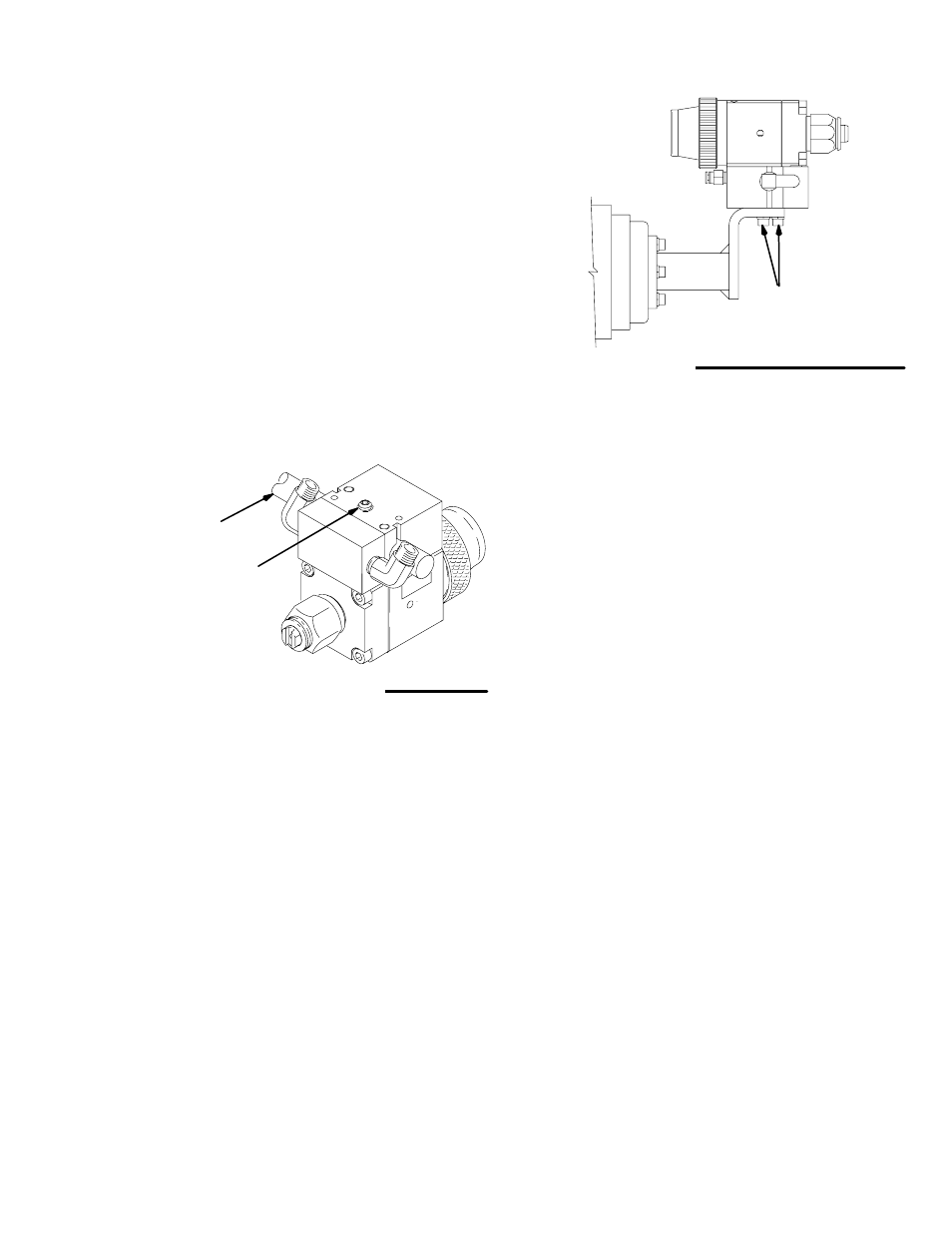

Fig. 2: Manifolds 241161 and 241162
A
B
KEY
A Mounting Bar
B Mounting Screw
8575A
KEY
C M5 x 0.8 Capscrews
Fig. 3: All Manifolds
C
