Graco Inc. 233670 - Manual (Page 31)

308813 31

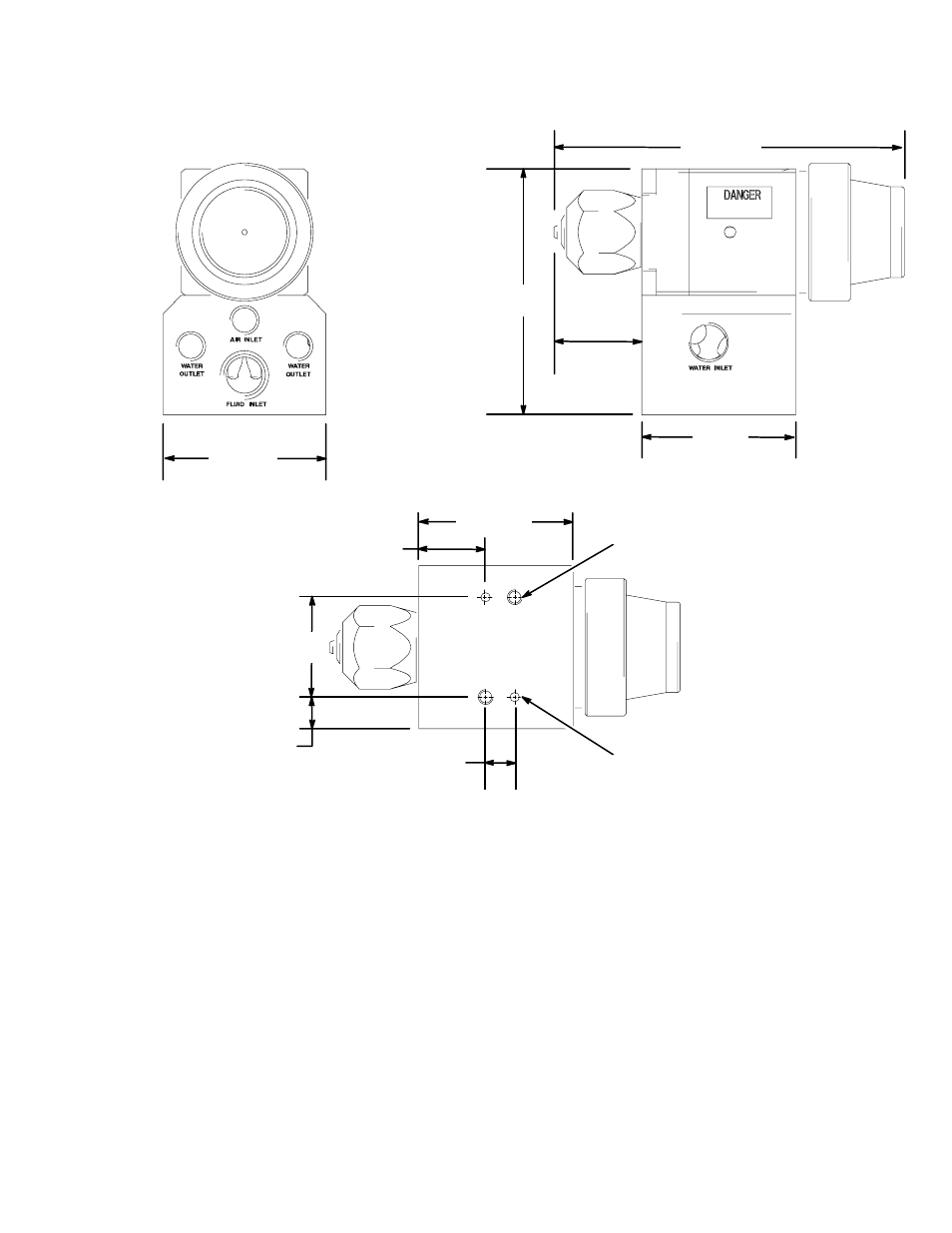

Dimensions and Mounting Holes
For Model 233670
4.8 in.
(121.9 mm)
3.5 in.
(88.9 mm)
2.25 in.
(57.2 mm)
TI1397A
1.25 in.
(32 mm)
2.13 in.
(54 mm)
Two M5 x 0.8 ISO-H holes
0.25 in. (6.35 mm) deep
0.4 in.
(10.2 mm)
1.375 in.
(35 mm)
TI1397A
0.805 in.
(20.4 mm)
0.92 in.
(23.37 mm)
0.437 in.
(11.1 mm) Two 0.128 in. (3.25 mm) dowel pin holes
0.31 in. (7.8 mm) deep
