Zebra XiII Printer User’s Guide 61
Routine Care and Adjustment
Adjustments
Toggle Positioning
Both toggles should be positioned so that they provide even pressure on the
media. The toggles are positioned by sliding them to the desired location.
On media too narrow to accommodate both toggles, position one toggle
over the center of the media and decrease the pressure on the unused toggle.
Note: Make sure that the toggle pressure is even across the width of the media,
otherwise the media and/or ribbon may drift.

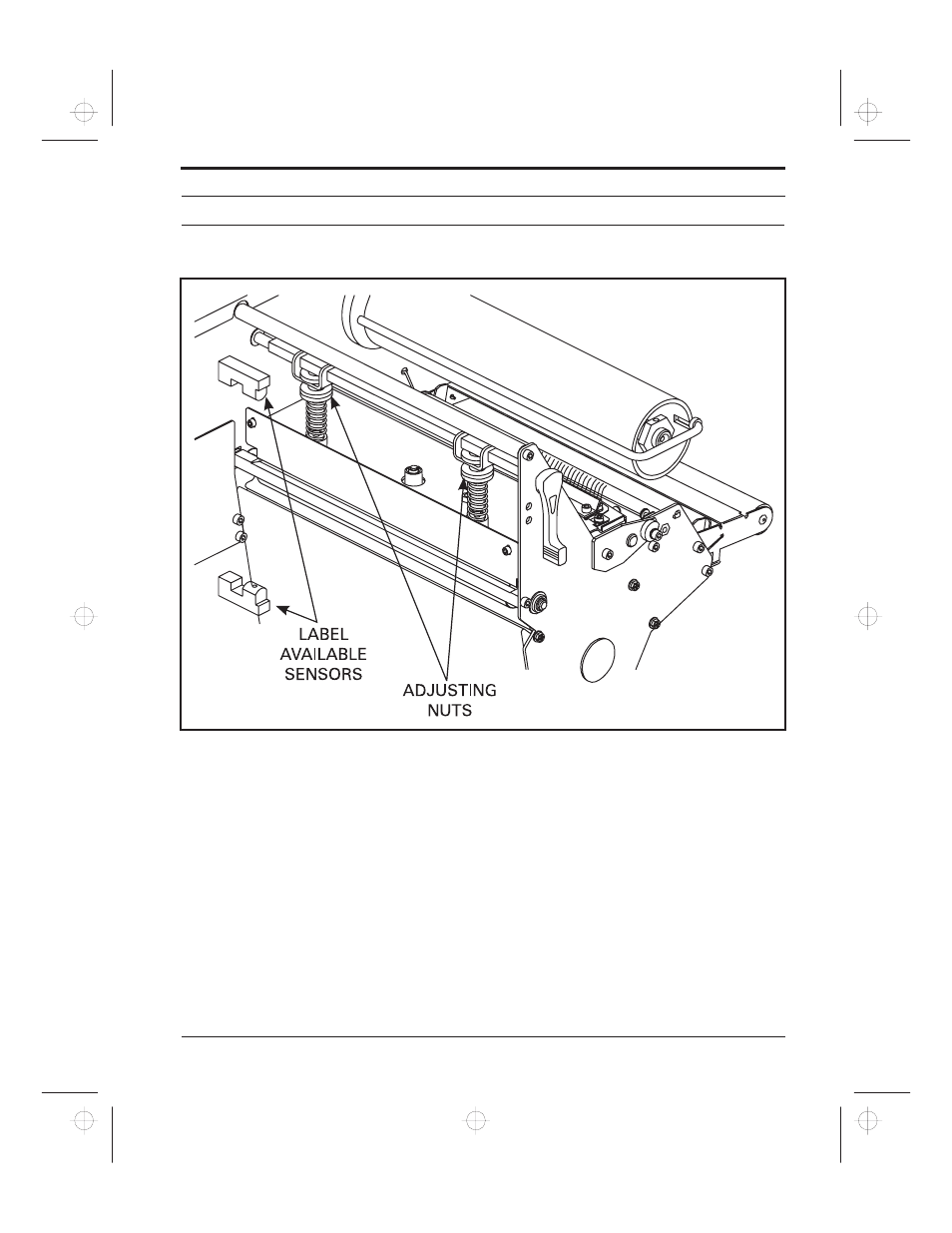

Figure 14. Toggle Adjustment
