Getting Started
18 Zebra XiII Printer User’s Guide
in the wires to adjust the sensor to the desired position. If you are mov-
ing the sensor toward the printer’s main frame and a large loop of wire
develops, call a service technician to properly adjust the wires.

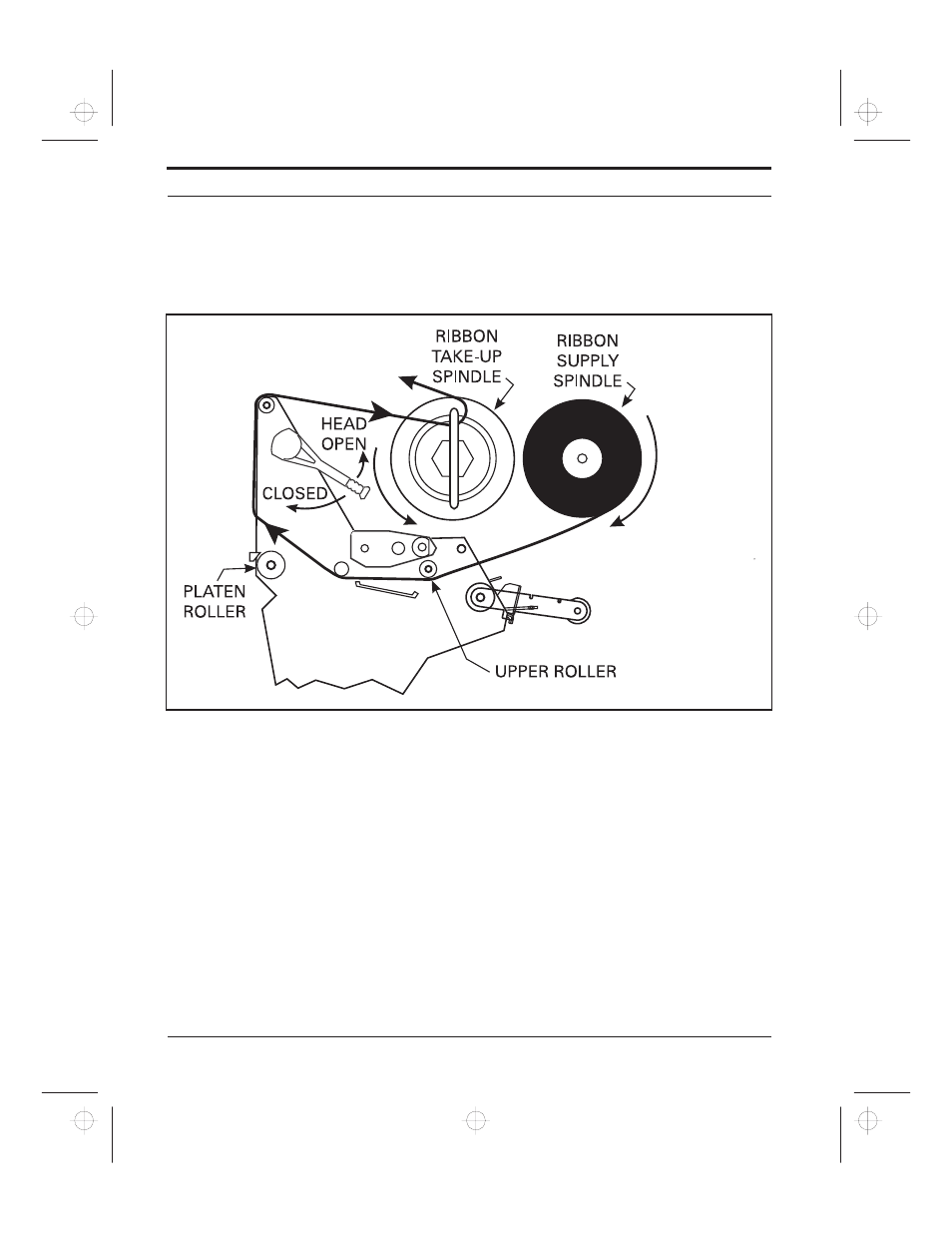

Figure 6. Ribbon Loading Diagram for the 90XiII and 140XiII Printers
