32 Genie Z-34/22 & Genie Z-34/22N Part No. 43654
Operator's Manual Second Edition • Ninth Printing

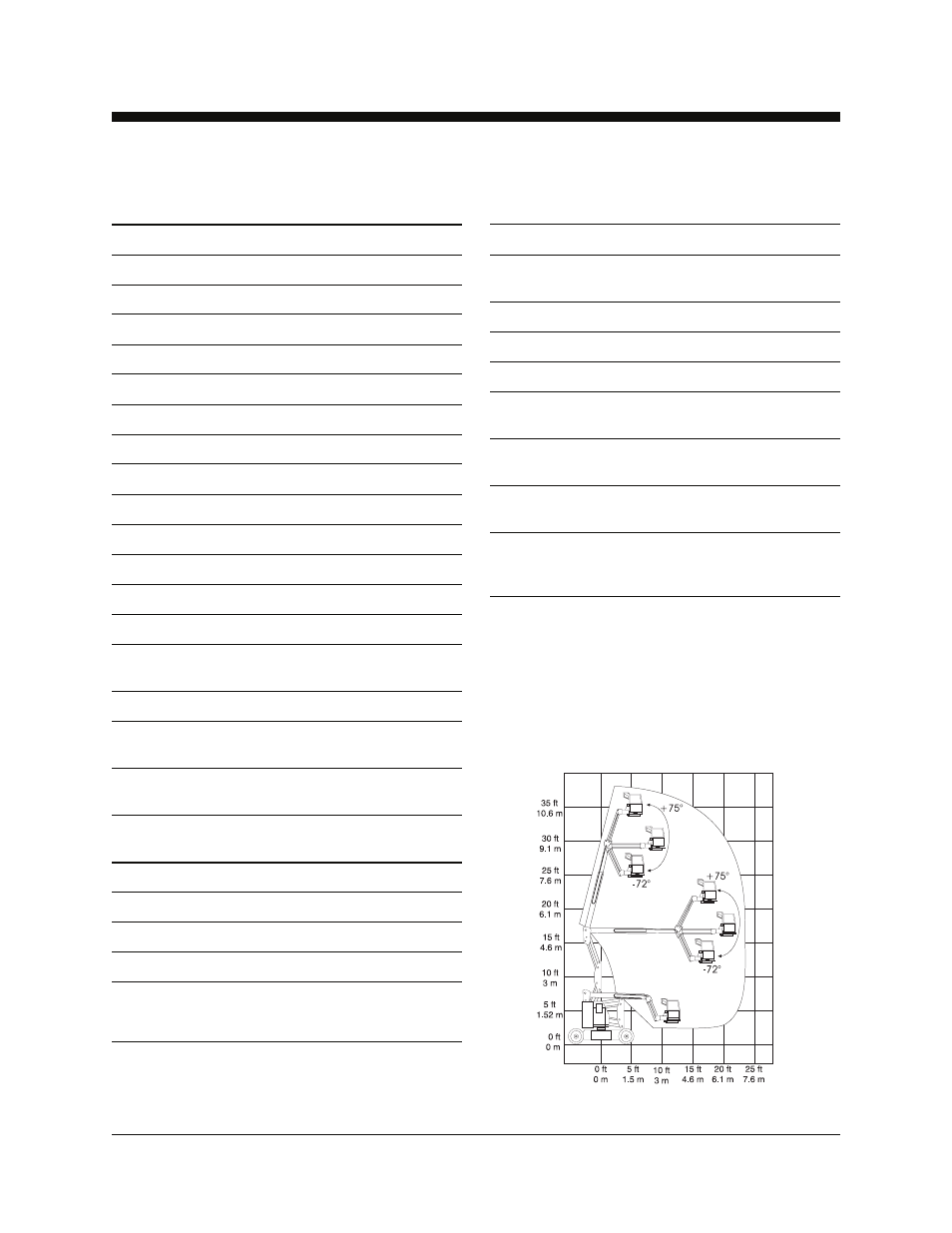

Specifications
Z-34/22N
Height, working maximum 40 ft 12.2 m
Height, platform maximum 34 ft 4 in 10.5 m
Height, stowed maximum 6 ft 7 in 2 m
Horizontal reach maximum 22 ft 4in 6.8 m
Width 4 ft 10 in 1.5 m
Length, stowed 18 ft 7 in 5.7 m
Maximum load capacity 500 lb 227 kg
Wheelbase 6 ft 2 in 1.9 m
Turning radius (outside) 12 ft 9 in 3.9 m
Turning radius (inside) 6 ft 0 in 1.8 m
Ground clearance 5 3 / 4 in 14.6 cm
Turntable rotation (degrees) 355°
Turntable tailswing 0
Power source 8 Group-4H,
6V 315AH Batteries
Drive speeds (maximum)
Boom stowed, 2.8 mph 4.5 km/h
49:1 torque hubs 40 ft/10 sec 12.2 m/10 sec
Boom stowed, 3.4 mph 5.5 km/h
35:1 torque hubs 40 ft/8 sec 12.2 m/8 sec
Boom 0.6 mph 1.0 km/h
raised or extended 40 ft/40 sec 12.2 m/40 sec
Maximum slope rating, stowed position,
Counterweight uphill 20% (11°)
Counterweight downhill 20% (11°)
Side slope 20% (11°)
Note: Slope rating is subject to ground conditions
and adequate traction.
Controls 24V DC proportional
Platform dimensions, 56 in x 30 in
(length x width) 1.42 m x 76 cm
Platform leveling self-leveling
Platform rotation 160°
AC outlet in platform standard
Hydraulic pressure (maximum) 2800 psi
(boom functions) 193 bar
Tires size 22 x 7 x 17 3 / 4 in
56 x 18 x 45 cm
Weight See Serial Plate
(Machine weights vary with option configurations)
Airborne noise emissions 70 dB
Maximum sound level at normal operating workstations
(A-weighted)
Continuous improvement of our products is a Genie
policy. Product specifications are subject to change
without notice or obligation.
