Part No. 43654 Genie Z-34/22 & Genie Z-34/22N 9
Operator's Manual Second Edition • Ninth Printing
CONTROLS

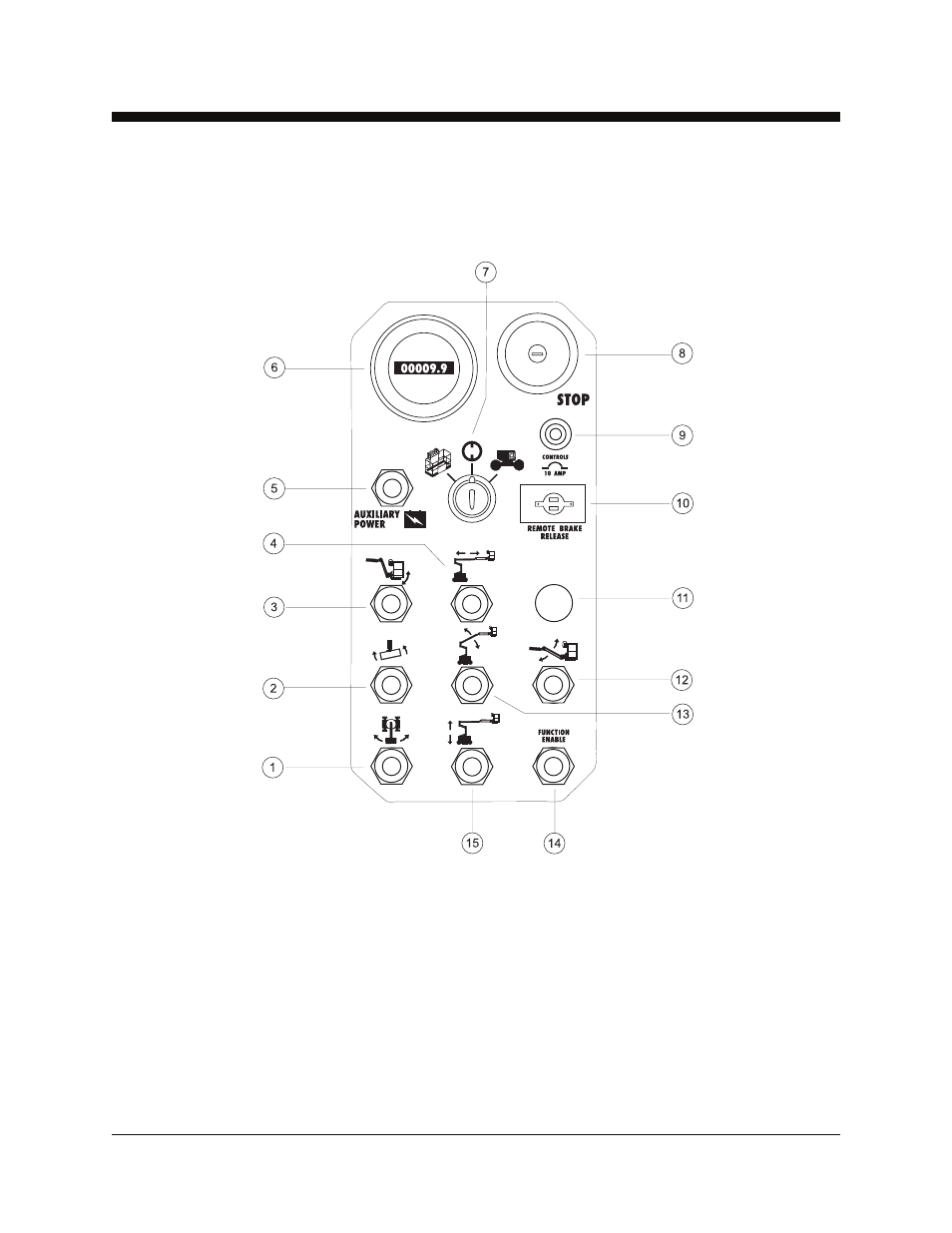

Ground Control Panel
1 Turntable rotate switch
2 Platform rotate switch
3 Platform level switch
4 Primary boom extend/retract switch
5 Auxiliary power switch
6 Hour meter
7 Key switch for platform/off/ground selection 8 Red Emergency Stop button
9 10A breaker for electrical circuits
10 Remote brake release
11 Not used
12 Jib boom up/down switch
13 Primary boom up/down switch
14 Function enable switch
15 Secondary boom up/down switch
