Part No. 43654 Genie Z-34/22 & Genie Z-34/22N 15
Operator's Manual Second Edition • Ninth Printing
FUNCTION TESTS
Test Auxiliary Controls
11 Turn the key switch to ground control.
12 Simultaneously hold the auxiliary power switch
on and activate each boom function toggle
switch.
Note: To conserve battery power, test each
function through a partial cycle.
Result: All boom functions should operate.
13 Turn the key switch to platform control.
At the Platform Controls
Test Emergency Stop
14 Push in the platform red Emergency Stop button
to the off position.
Result: All platform control functions should not
operate.
Test the Horn
15 Pull out the red Emergency Stop button to the
on position.
16 Push the horn button.
Result: The horn should sound.
Test the Foot Switch
17 Do not press down the foot switch. Activate
each machine function.
Result: The machine functions should not
operate.
Test the Boom Functions
6 Do not hold the function enable switch to either
side. Attempt to activate each boom and
platform function toggle switch.
Result: All boom and platform functions should
not operate.
7 Hold the function enable switch to either side
and activate each boom and platform function
toggle switch.
Result: All boom and platform functions should
operate through a full cycle. The descent alarm
(if equipped) should sound while the boom is
lowering.
Machines equipped with Platform Level Control
Disable Function: The platform level toggle switch
will not operate when the primary boom is raised
past the drive speed limit switch.
Test the Tilt Sensor
8 Pull out the platform red Emergency Stop
button to the on position. Turn the key switch to
platform control.
9 Open the ground control side turntable cover
and locate the tilt sensor next to the function
manifold.

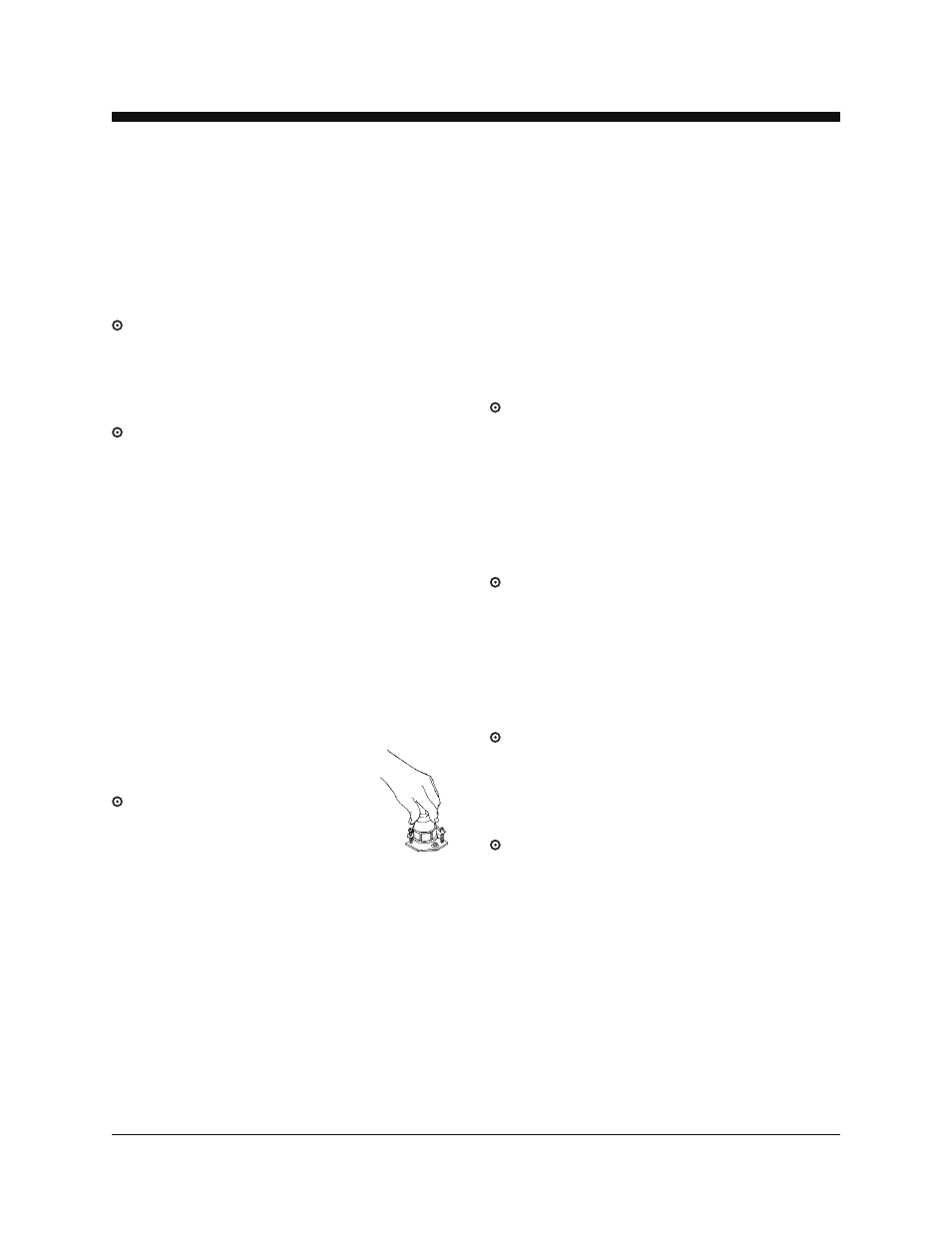

10 Press down one side of the tilt
sensor.
Result: The alarm, located in the
platform, should sound.
