Model G0517 Mill/Drill
-15-

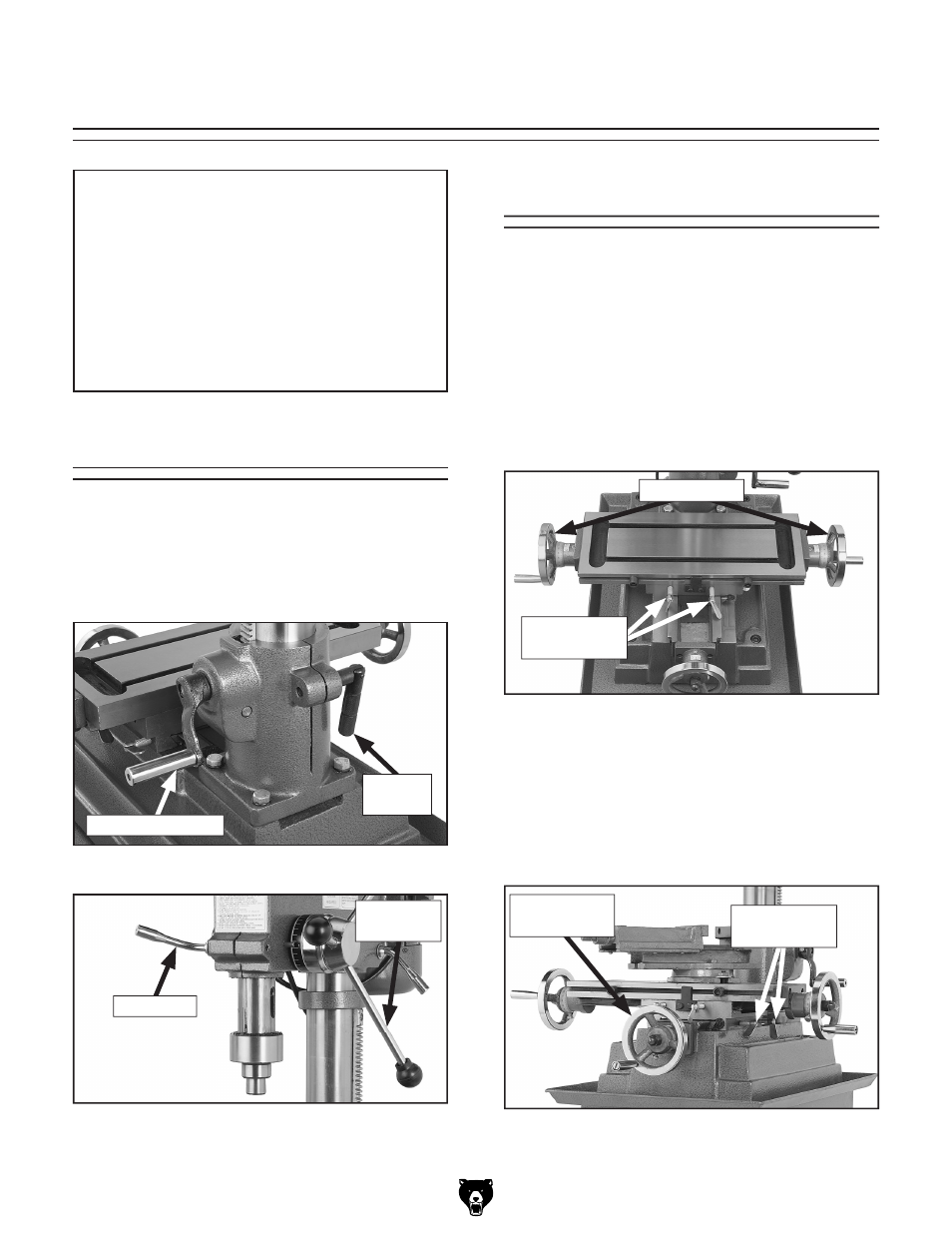

Figure 15. Headstock elevation controls.
SECTION 4: OPERATIONS
NOTICE
If you have never used this type of machine
or equipment before, WE STRONGLY REC-
OMMEND that you read books, trade maga-
zines, or get formal training before begin-
ning any projects. Regardless of the con-
tent in this section, Grizzly Industrial will
not be held liable for accidents caused by
lack of training.
The headstock can be raised/lowered with the
elevation handle and column lock for Z-axis
movement (
Figure 15). The quill can be raised/
lowered with the downfeed handles and locked in
place with the quill lock (
Figure 16).
Head/Quill Travel
Column
Lock
Elevation Handle
Figure 16. Quill controls.
Table Travel
The mill/drill table can be moved in the X and Y
axis.
Longitudinal Feed
The longitudinal feed (X-axis) is moved by either
handwheel (
Figure 17) at the end of the table.
One complete handwheel revolution moves the
table 0.167". The longitudinal feed can be locked
in position by locks located on the front of the
table.
Cross Feed
The cross feed (Y-axis)
is moved with the
handwheel on the front of the table base ( Figure
18). One complete revolution of the handwheel
moves the cross feed table 0.167". The cross feed
can be locked into position with the table locks.
Figure 17. Longitudinal feed controls.
Handwheels
Longitudinal
Table Locks
Figure 18. Cross feed controls.
Cross Feed
Handwheel
Cross Feed
Table Locks
Quill Lock
Downfeed
Handle
