Model G0517 Mill/Drill
The Model G0517 was carefully packed when it
left our warehouse. If you discover the machine
is damaged after you have signed for delivery,
please immediately call Customer Service at
(570) 546-9663 for advice.
Save the containers and all packing materials for
possible inspection by the carrier or its agent.
Otherwise, filing a freight claim can be difficult.
When you are completely satisfied with the con-
dition of your shipment, you should inventory the
contents.
This machine presents
serious injury hazards
to untrained users. Read
through this entire manu-
al to become familiar with
the controls and opera-
tions before starting the
machine!
Unpacking
SECTION 3: SET UP
The following items are needed to complete the
set up process, but are not included with your
machine:
Description Qty
• Degreaser ........................................... Varies
• Throw-Away Rags .............................. Varies
• Wrench/Socket 17mm ................................ 1
• Wrench/Socket 19mm ................................ 1
• Flat Head Screwdriver ................................ 1
• Another Person for Lifting Help .................. 1
Items Needed for
Set Up
After all the parts have been removed from the
two boxes, you should have the following items:
Description Qty
A. Stand .......................................................... 1
B. Base Assembly ........................................... 1
C. Headstock .................................................. 1
D. Splash Tray ................................................ 1
E. T-Bolts and Washers .................................. 2
F. Milling Vise w/Handle ................................. 1
G. Downfeed Handle Shafts w/Ball Knobs ..... 3
H. Handwheel Handles ................................... 3
I. Drill Chuck Arbor ........................................ 1
J. Drawbar M12-1.75 ...................................... 1
K. MT #2/#3 & MT#1/#2 Sleeves ..........1 Each
L. Wrenches and Drift Key ....................1 Each
M. Mounting Bolts, Washers, Nuts .........4 Each
N. Drill Chuck & Key ..............................1 Each
Inventory

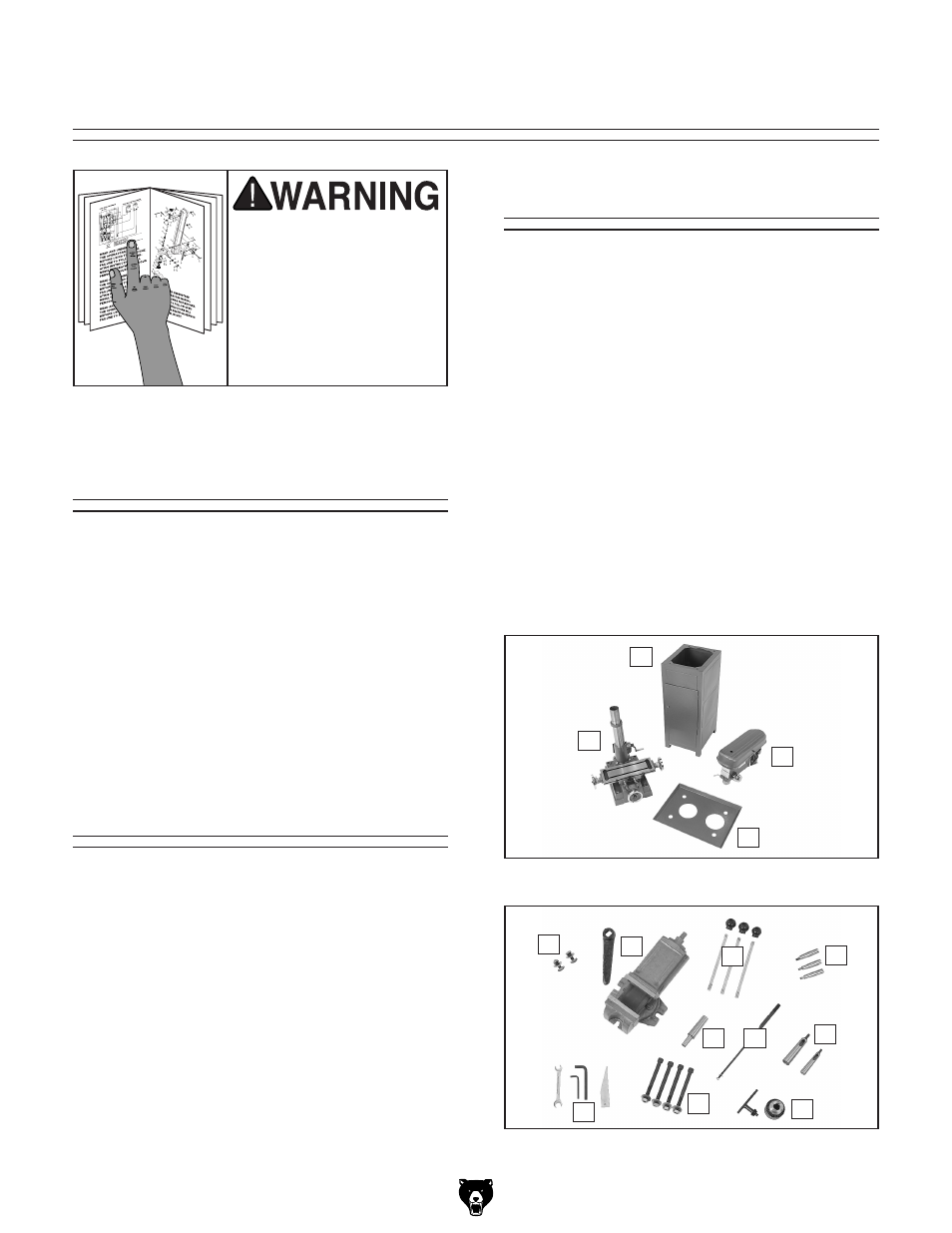

Figure 2. Main parts inventory.
Figure 3. Component inventory.
A
B
C
D
E F
G H
I J
K
L
M
N
