8 308237

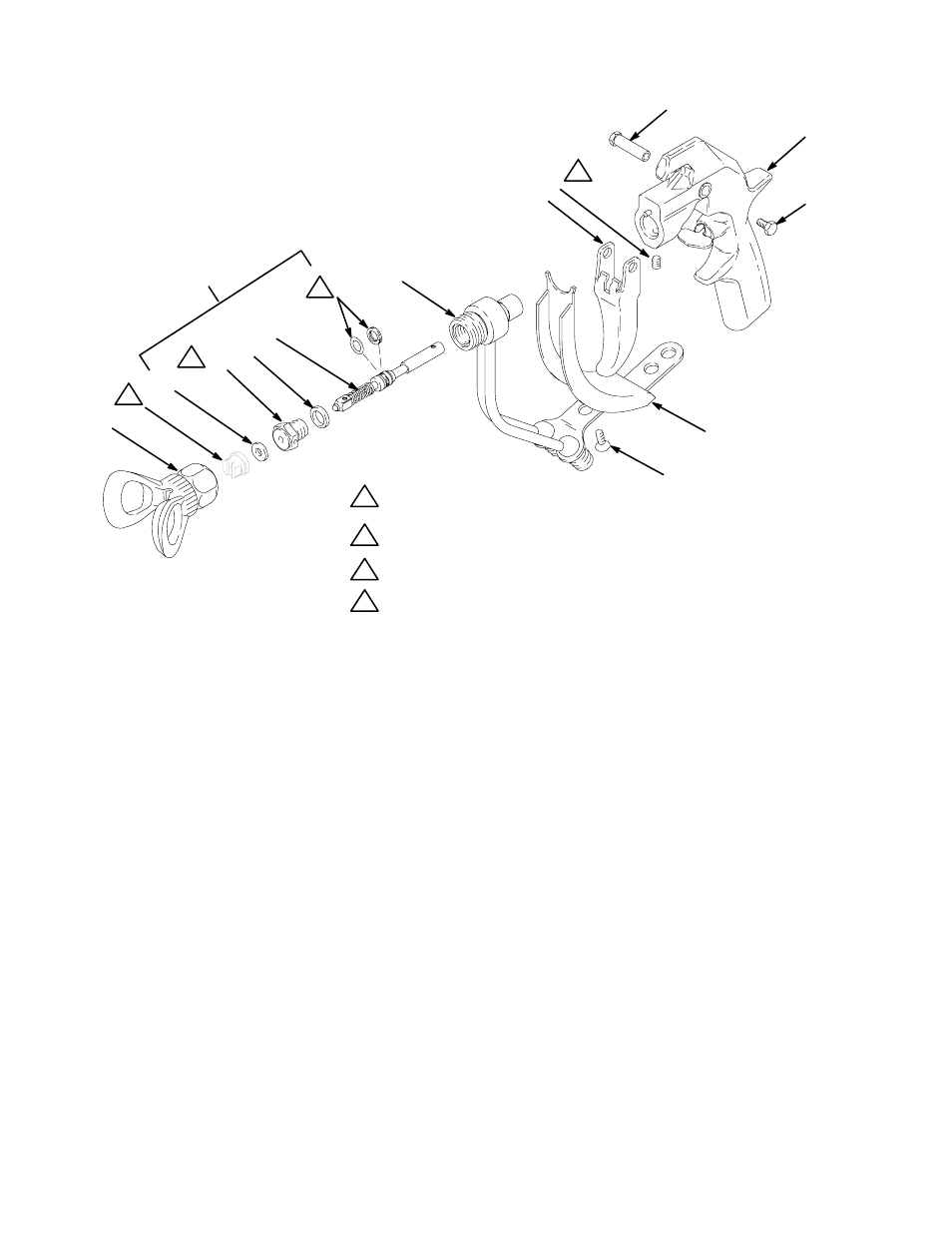

Parts
1
2d
2a
2b
2c
8
9
10
11
12
14
6
01487
13
1
2
Lubricate, then
torque to 20Ć25 ftĆlb
(27Ć34 N.m)
3
4
Torque to 30Ć40 inĆlb
(3.4-4.5 N.m)
Purchase separately
Lubricate
2
4
1
3
2
Model 235465, Series B
Includes items 1 to 16
Ref
No. Part No. Description Qty.
Ref
No. Part No. Description Qty.
1 220222 STANDARD TIP GUARD 1
2 235475 NEEDLE KIT
Includes items 2a to 2d 1
2a* Z . DIFFUSER/SEAT 1
2b* Z . GASKET, copper 1
2c* Z . NEEDLE 1
2d* 162863 . TIP GASKET 1
6 235484 FLUID HOUSING 1
8 187985 TRIGGER 1
9 102207 SETSCREW, 1/4-20 1
10 187965 PIVOT PIN 1
11 235471 GUN HANDLE 1
12 203953 SCREW, hex washer hd, 10-24 1
13 188128 HEAT SHIELD 1
14 107091 SCREW, 1/4-20 2
15Y 187987 WARNING TAG not shown 1
16Y 222385 WARNING CARD not shown 1
*ąThese parts are also included in Repair Kit
235-475, which may be purchased separately. Kit
also includes installation tool.
Z Part not sold separately
Y Replacement Danger and Warning labels, tags and
cards are available at no cost.
