G0526 6" Jointer -7-
The Model G0526 features a 110V/220V motor
that is prewired at 110V.
Amperage Draw
110V (prewired) .................................... 18 Amps
220V ...................................................... 9 Amps
Use the following guidelines when choosing a cir-
cuit breaker (circuit breakers rated any higher are
not adequate to protect the circuit):
Circuit Breaker
110V (prewired) ..........................20 Amp, 1 Pole
220V ..........................................10 Amp, 2 Pole

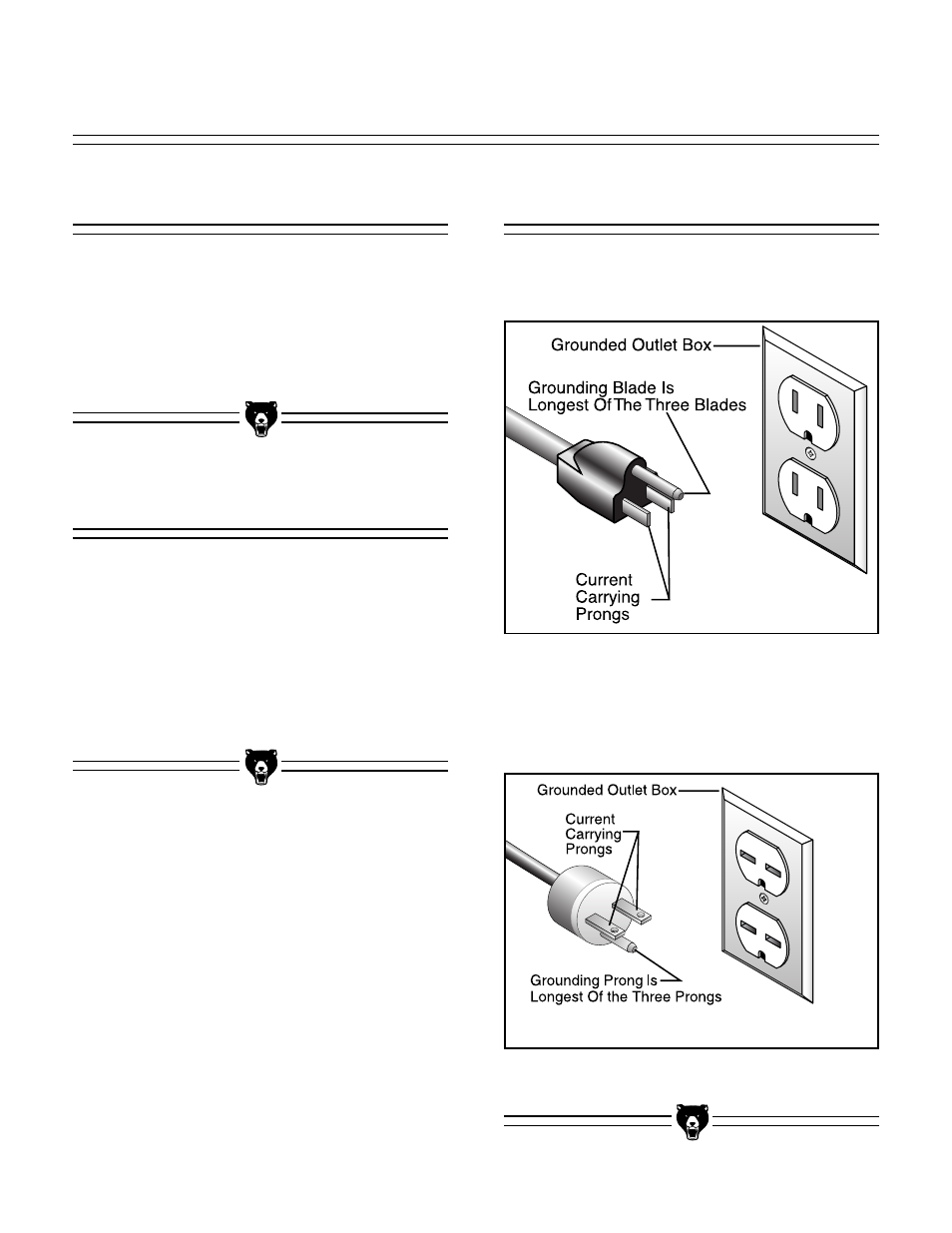

Figure 1b. NEMA 6-15 plug and receptacle.
Figure 1a. NEMA 5-15 plug and receptacle.
The cord set enclosed is equipped with a NEMA
5-15 plug (
Figure 1a ).
If the jointer is rewired to operate on a 220V
power source, the plug must be replaced with a
NEMA 6-15 plug (
Figure 1b ).
Plug-Type Amperage Draw
Circuit Breaker
SECTION 3: CIRCUIT REQUIREMENTS
