G0526 wiring diagram – Grizzly G0526 User Manual
Page 47
G0526 6" Jointer
-45-

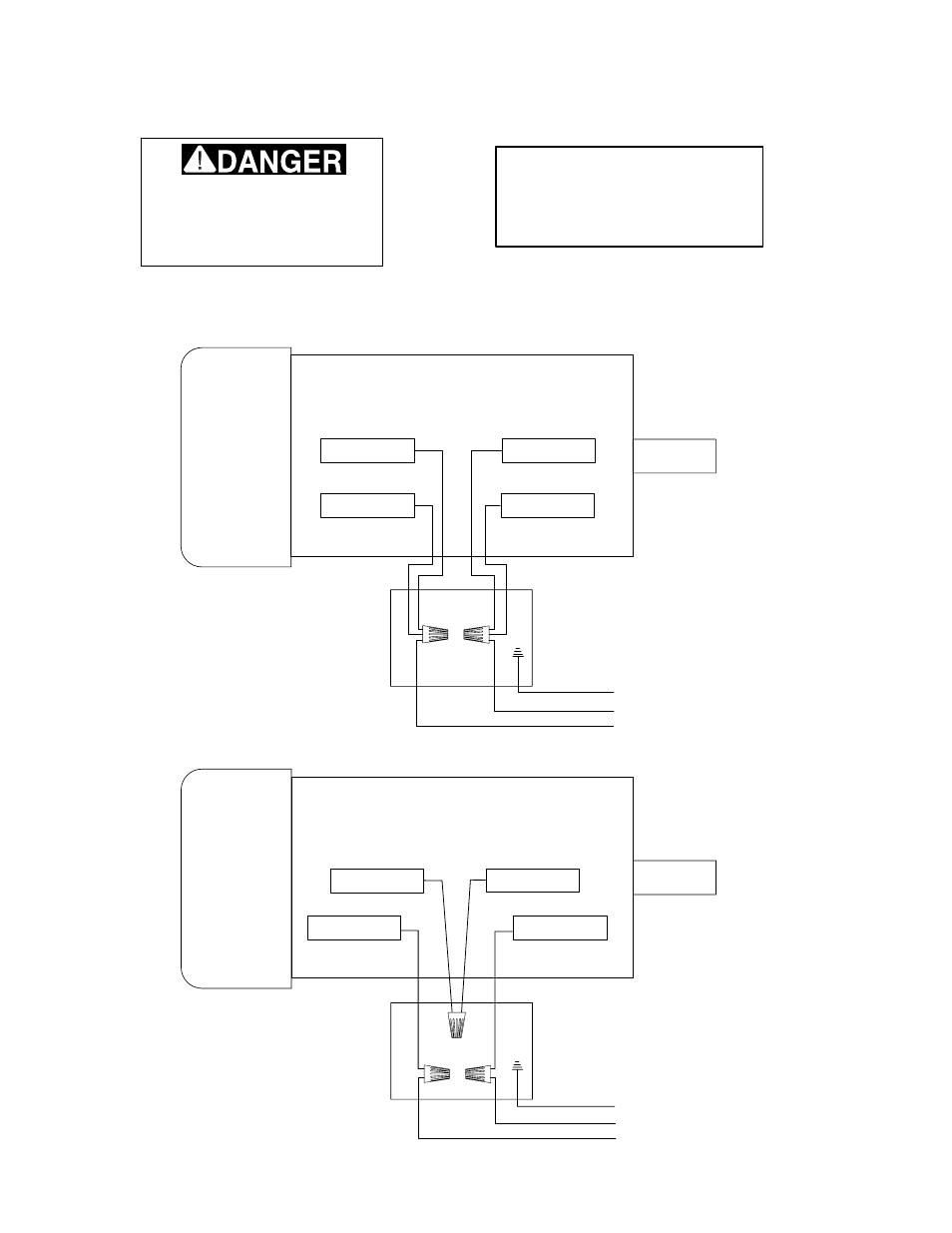

WHITE
RED
BLACK
YELLOW
MOTOR WIRES
110 VOLT
GREEN (GROUND)
TO 110 VOLT
POWER SUPPLY
RED
WHITE
BLACK
YELLOW
MOTOR WIRES
220VOLT
GREEN (GROUND)
TO 220 VOLT
POWER SUPPLY
NOTE: THE WIRES FROM THE
POWER SUPPLY, EXCEPT THE
GREEN GROUND WIRE, ARE
INTERCHANGABLE, THEREFORE
COLORS ARE NOT SPECIFIED.
Disconnect power from machine
before performing any electrical
service. Failure to do this will
result in a shock hazard, leading
to injury or death.
G0526 Wiring Diagram
