-32- G0526 6" Jointer
To set the depth-of-cut scale:
1. Set the outfeed table height as described in
the “Outfeed Table Height” sub-section
.
2. Place a straightedge across the infeed and
outfeed tables
3. Adjust the infeed table until it is level with the
outfeed table
.
4. Adjust the depth-of-cut pointer to read “0”
(
Figure 29 ).

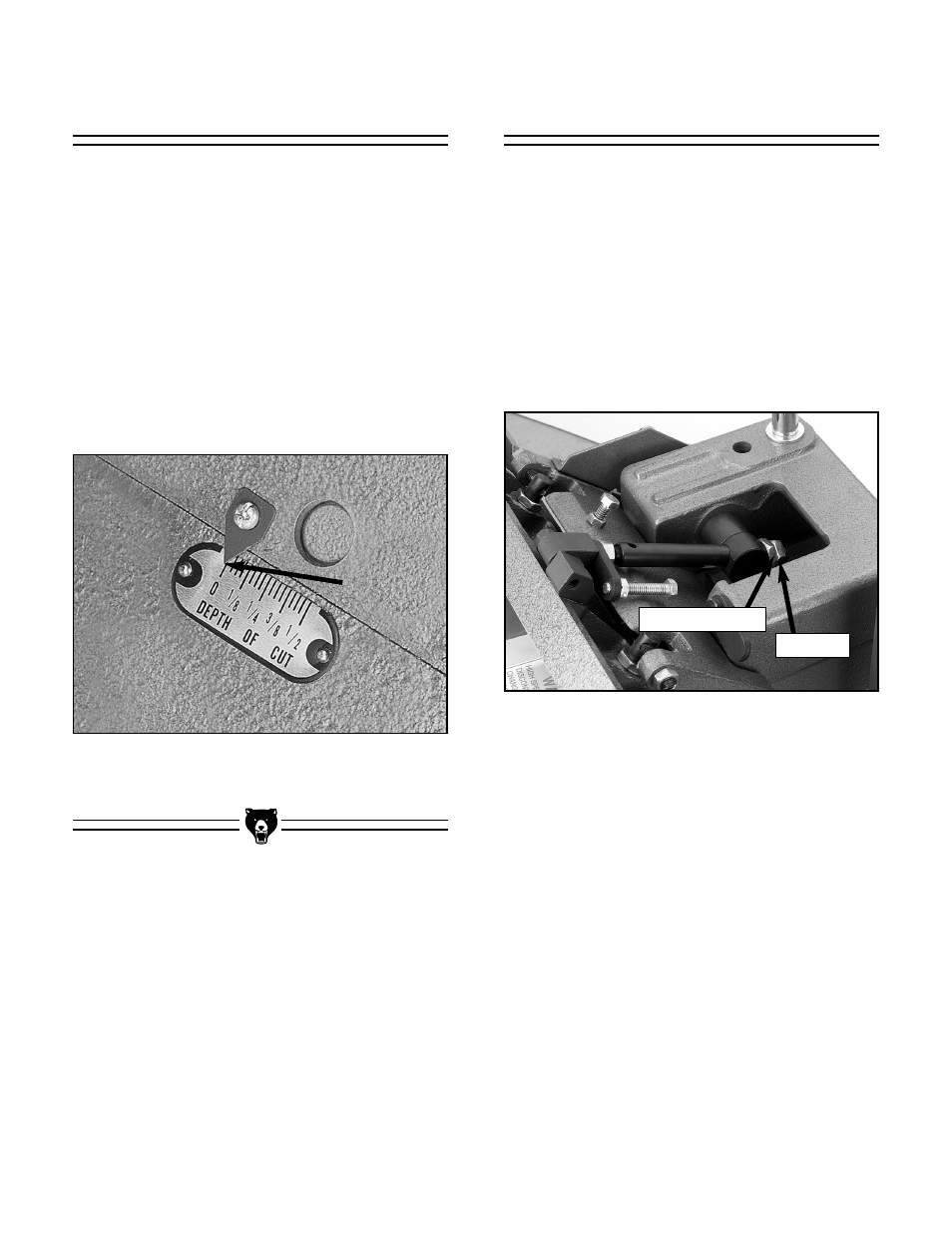

Figure 29. Depth-of-cut pointer
adjusted to “0” position.
The fence stops are adjustable nuts and bolts
that simplify the task of adjusting the fence to 45˚
inward, 90˚, and 45˚ outward (135˚).
To set the 45˚ inward fence stop :
1. Using a 45˚ square, adjust the fence to the
45˚ inward position
.
2. Loosen the jam nut shown in Figure 30 .
3. Adjust the 45˚ inward fence stop nut until it
makes contact with the back of the fence
bracket
.
4. Retighten the jam nut loosened in step 2 .
Figure 30. 45˚ inward fence stop jam nut.
Jam Nut
Fence Stop Nut
Fence Stops Depth-Of-Cut Scale
