G0526 6" Jointer -33-

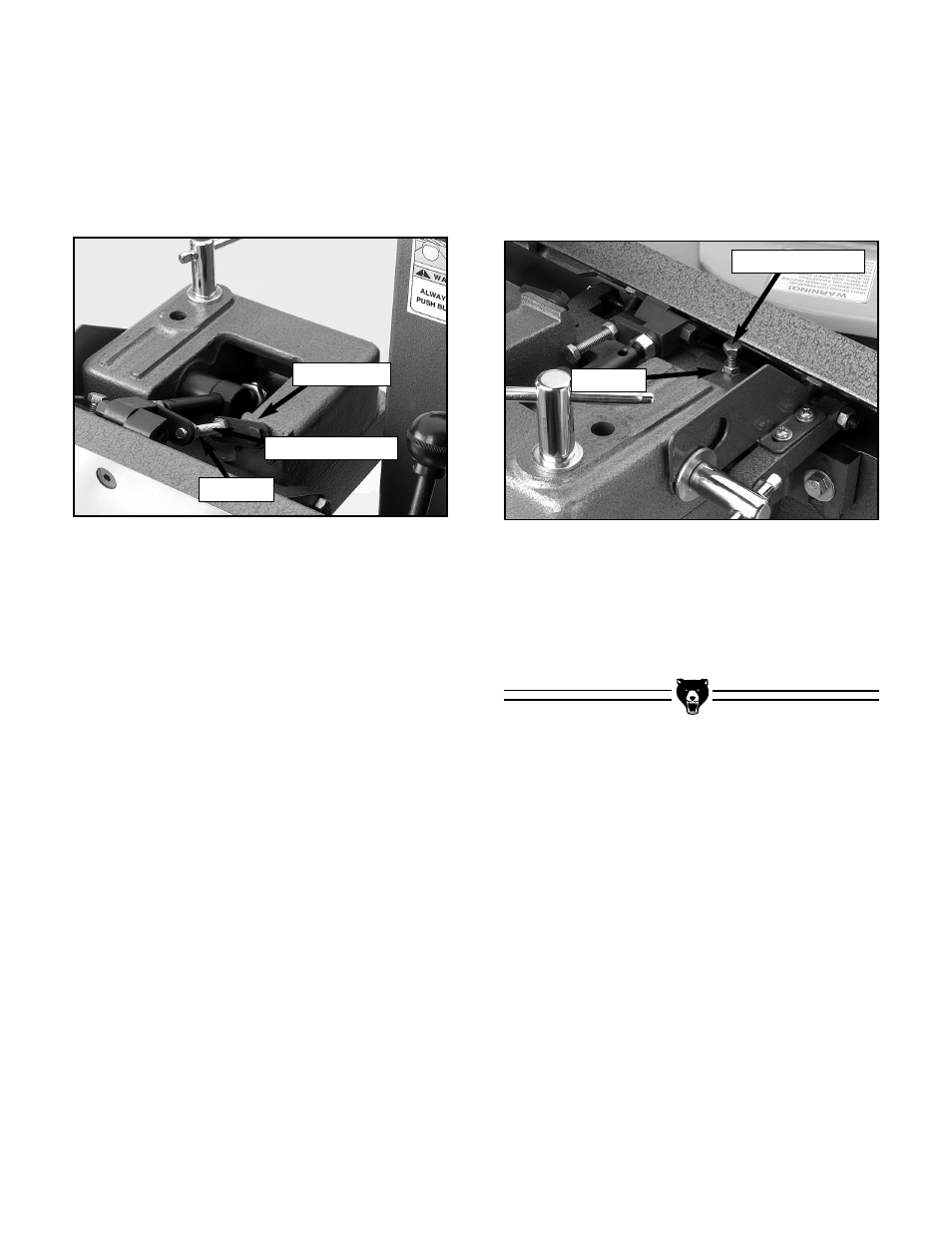

Figure 31. 90˚ swing stop engaged.
To set the 90˚ fence stop:
1. Using a 90˚ square, adjust the fence to the
90˚ position
.
2. Flip the 90˚ swing stop into the position
shown in
Figure 31 .
3. Loosen the jam nut on the 90˚ fence stop bolt
(
Figure 31 ) .
4. Adjust the 90˚ fence stop bolt until it makes
contact with the 90˚ swing stop.
5. Retighten the jam nut loosened in step 3 .
Swing Stop
Jam Nut
Fence Stop Bolt
To set the 45˚ outward fence stop:
1. Using a sliding bevel adjusted to 135˚, adjust
the fence to the 135˚ (45˚ outward) position.
2. Loosen the jam nut on the 45˚ outward fence
stop bolt (
Figure 32 ).
3. Adjust the 45˚ outward fence stop bolt until it
makes contact with the back of the fence.
4. Retighten the jam nut loosened in step 2 .
Figure 32. 45˚ outward fence stop jam nut.
Jam Nut
Fence Stop Bolt
