Graco Inc. 232632 - Manual (Page 24)

308870 24

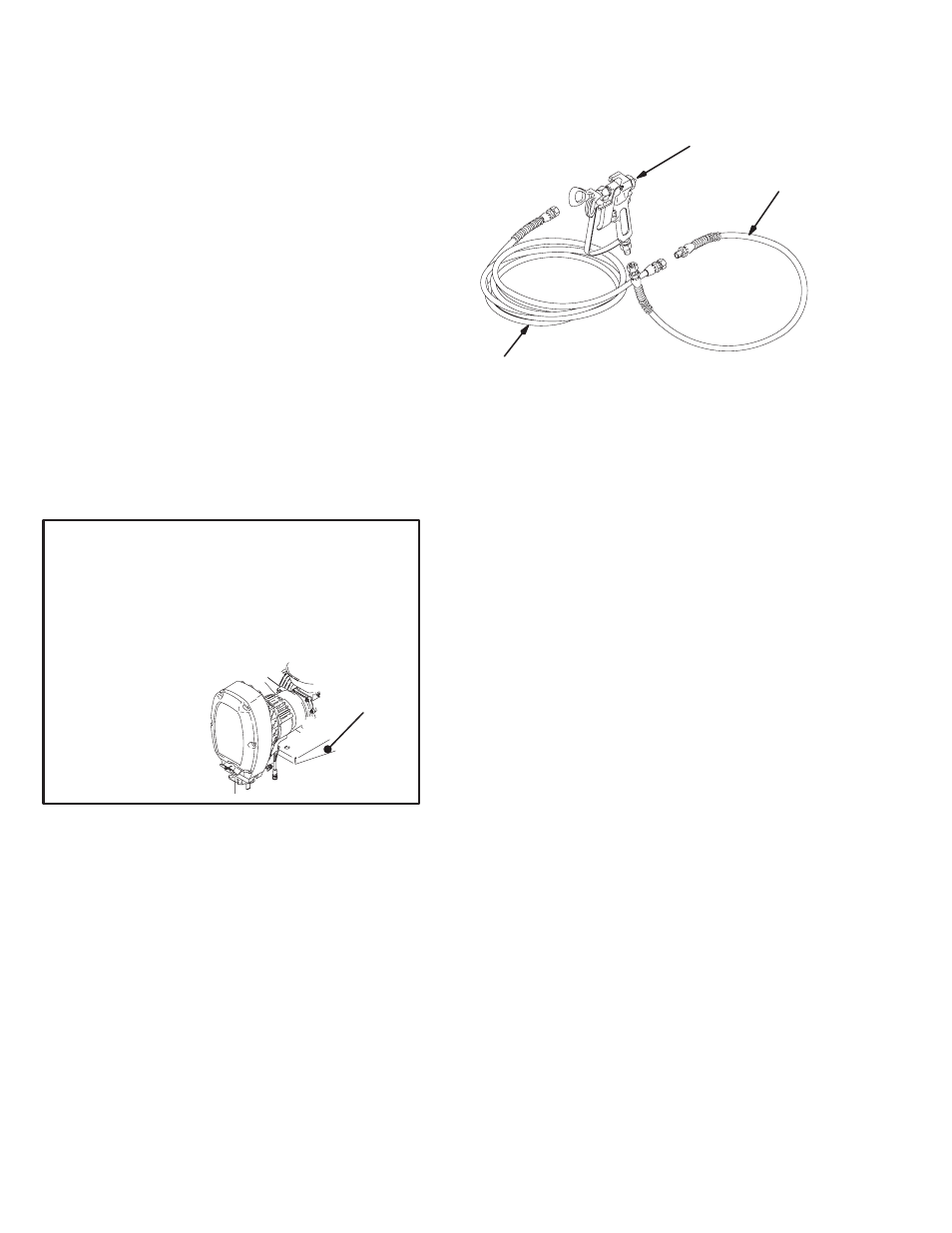

Parts List & Drawing – Complete Sprayers
Models 232631, 232633
Includes items 201 to 204
Ref
No. Part No. Description Qty
201 232631 Hi-Boy Sprayer 1
See parts list on page 18
232633 Lo-Boy Sprayer 1
See parts list on page 21
202 240797 HOSE, grounded, nylon; 3/8 in. ID; 1
cpld 3/8 npsm(fbe); 50 foot (15 m);
spring guards both ends
3300 psi (227 bar, 27.7 MPa)
203 238358 HOSE, grounded, nylon; 3/16 in. ID;
cpld 1/4 npsm(m) x 1/4 npsm(f) swivel;
3 foot (0.9 m); spring guards both ends 1
204 220955 CONTRACTOR SPRAY GUN
Includes RAC IV t DripLess t Tip Guard
and 517–size SwitchTip t
See 307614 for parts 1
204
203
202 0160
Accessories
French 194931
Spanish 194932
German 194933
Greek 194934
Korean 194935
English 194317
Apply other
language here
DANGER LABELS
An English language DANGER label is on your
sprayer. If you have painters who do not read En-
glish, order one of the following labels to apply to
your sprayer. The drawing shows the best place-
ment of these labels for good visibility.
Order the labels from your Graco distributor.
9036A
Displacement Pump Repair Kit
Packing repair kit.
GMax 7900
240916
