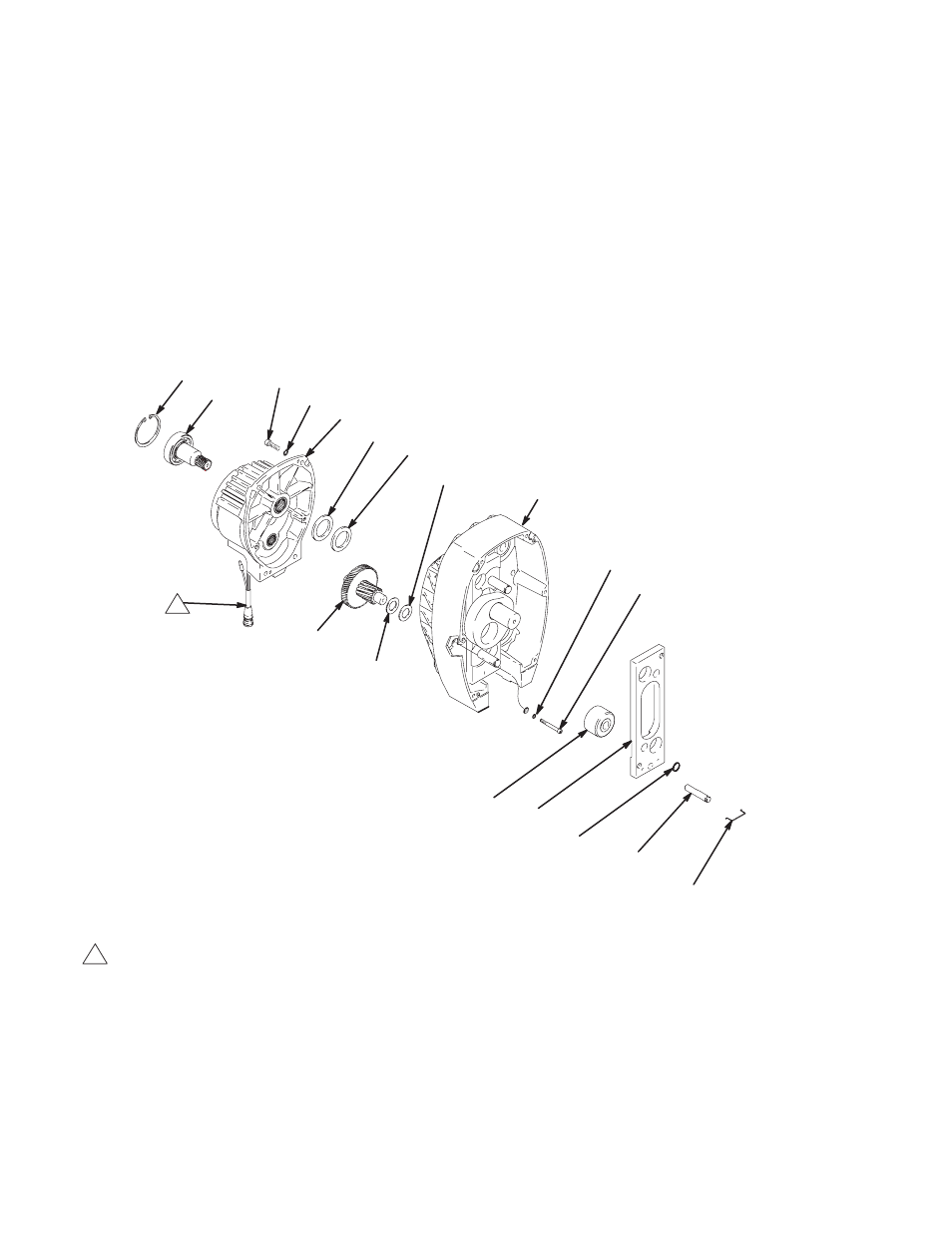

Parts List & Drawing – Pinion Assembly
Ref No. 19 and 20
Ref No. 19: Pinion Housing Assembly 241116 Ref No. 20: Drive Housing Assembly 241537
Ref
No. Part No. Description Qty
Ref
No. Part No. Description Qty
19a 241121 PINION HOUSING, COIL 1
19b 105489 PIN 2
19d 241114 PINION SHAFT
19e 112770 RETAINING RING, large
20 DRIVE HOUSING 1
20a 194060 RETAINING CLIP, pump pin 1
20b 193656 CAM FOLLOWER PLATE 1
20c 114691 CAM FOLLOWER BEARING 2
20d 114828 RETAINER CLIP 2
20g 114697 WASHER 1
20h 114698 WASHER 1
101 194117 PIN 1
10 (Ref)
9 (Ref)
20
20h
20g
18 (Ref)
19a
82 (Ref)
9 (Ref)
99 (Ref)
1
1 Pinion housing/coil assembly (19a) includes clutch field and all bearings, pins and o-rings
101
83 (Ref)
9046A
19d
19e
20a
20d
20c
20b
