28 Genie Z-34/22 Bi-Energy Part No. 56011
Operator's Manual First Edition • Fifth Printing

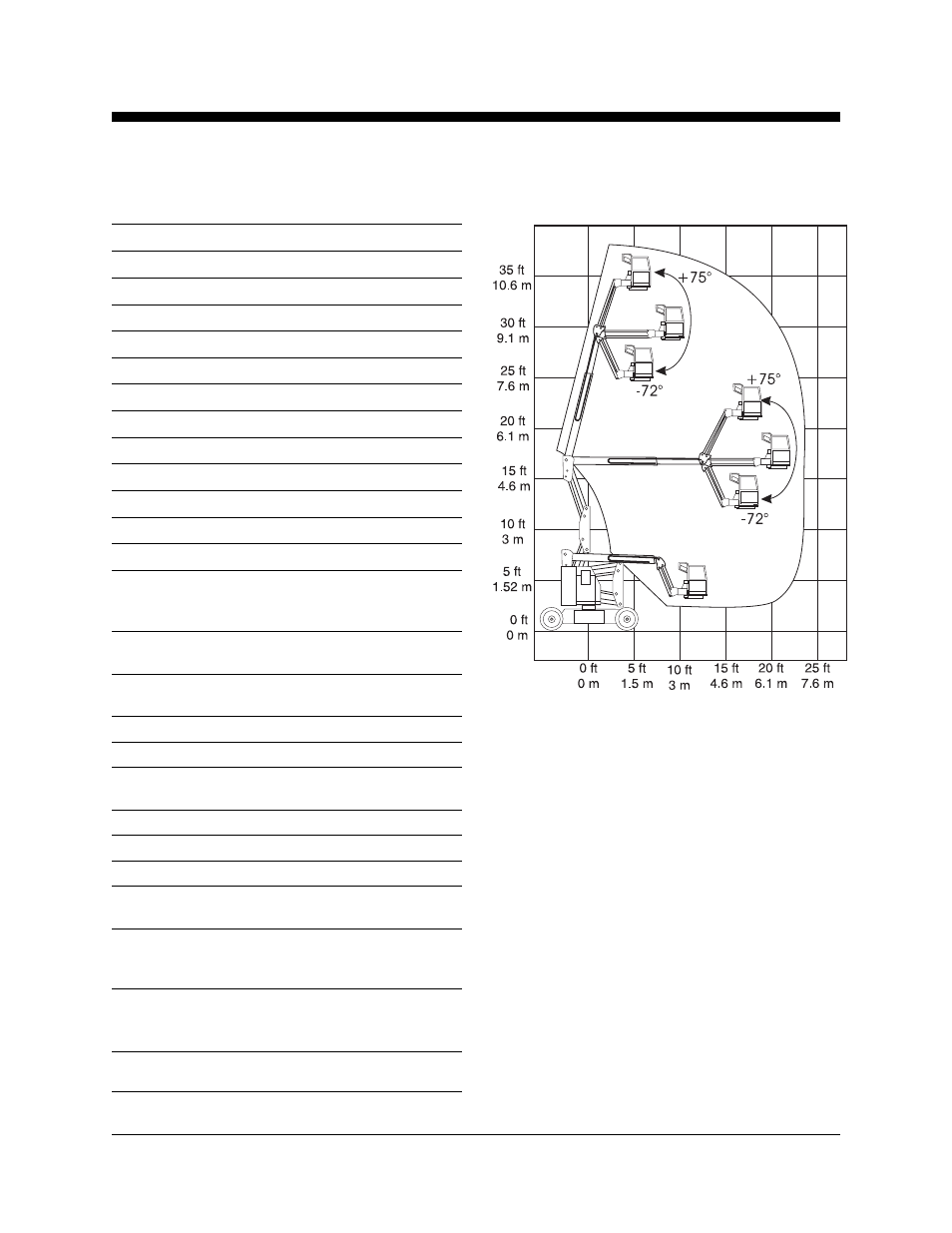

Specifications
Height, working maximum 40 ft 8 in 12.4 m
Height, platform maximum 34 ft 8 in 10.6 m
Height, stowed maximum 6 ft 7 in 2 m
Horizontal reach maximum 22 ft 4 in 6.8 m
Width 5 ft 8 in 1.7 m
Length, stowed 18 ft 6 in 5.6 m
Maximum load capacity 500 lb 227 kg
Wheelbase 6 ft 2 in 1.9 m
Turning radius (outside) 13 ft 1 in 4 m
Turning radius (inside) 5 ft 8 in 1.7 m
Ground clearance 5 3 / 4 in 14.6 cm
Turntable rotation (degrees) 355°
Turntable tailswing 0
Power source 8 Group-4H,
6V 315AH Batteries
with Kubota Z482 engine
Drive speeds 3.7 mph 5.9 km/h
(maximum) 40 ft/7.5 sec 12.2 m/7.5 sec
Booms 0.6 mph 1.0 km/h
raised or extended 40 ft/40 sec 12.2 m/40 sec
Gradeability (boom stowed) 30%
Controls 24V DC proportional
Platform dimensions, 56 in x 30 in
(length x width) 1.4 m x 76 cm
Platform leveling self-leveling
Platform rotation 160°
AC outlet in platform standard
Hydraulic pressure (maximum) 3200 psi
(boom functions) 220.7 bar
Tires size
standard
9-14.5
optional 10-16.5NHS
Airborne noise emissions 80 dB
Maximum sound level at normal operating workstations
(A-weighted)
Weight See Serial Plate
(Machine weights vary with option configurations)
Continuous improvement of our products is a Genie
policy. Product specifications are subject to change
without notice or obligation.
