CONTROLS

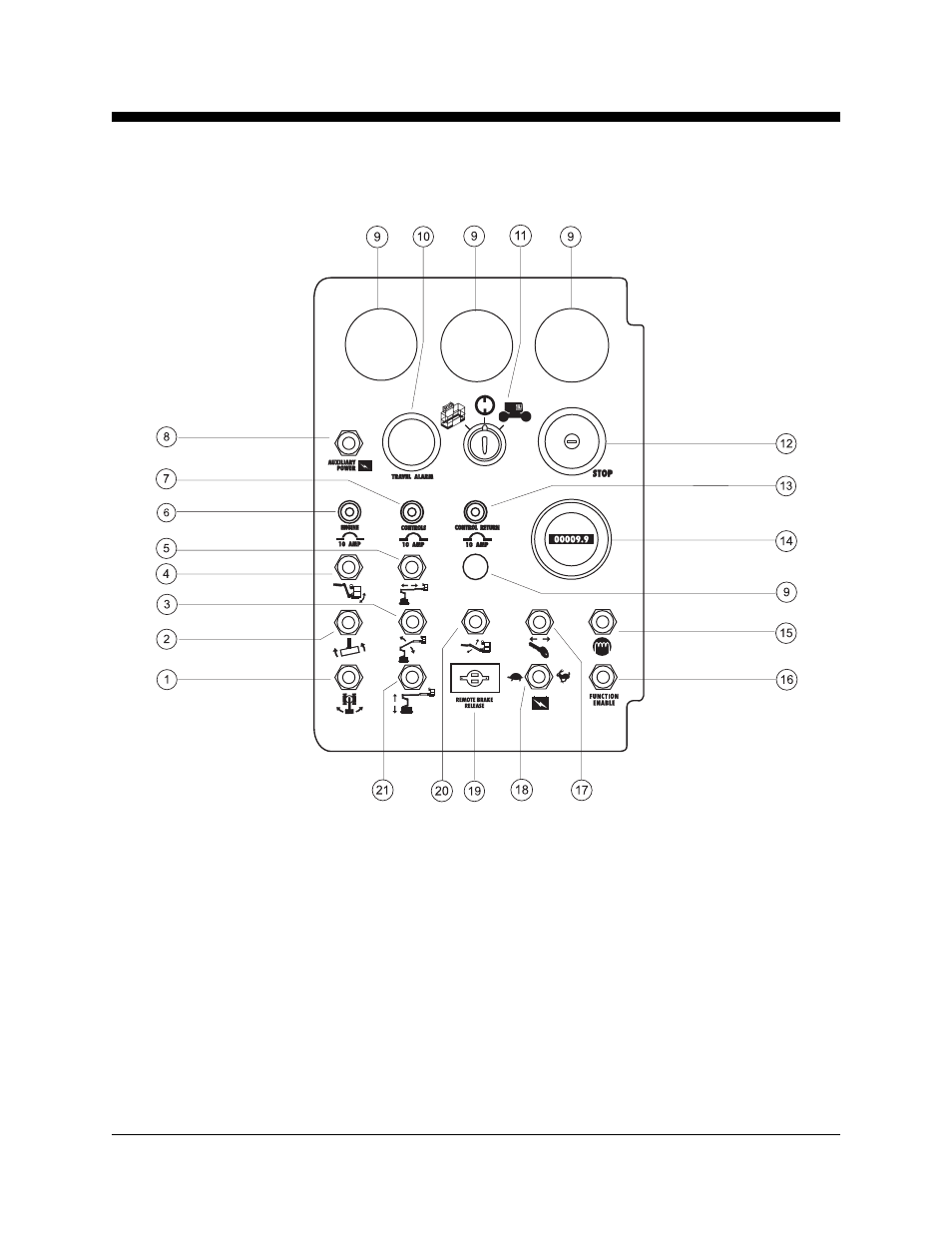

Ground Control Panel
1 Turntable rotate switch
2 Platform rotate switch
3 Primary boom up/down switch
4 Platform level switch
5 Primary boom extend/retract switch
6 10A breaker for engine electrical circuits
7 10A breaker for control electrical circuits
8 Auxiliary power switch
9 Not used
10 Travel alarm
11 Key switch for platform/off/ground selection
12 Red Emergency Stop button
13 10A breaker for controls return electrical
circuits
14 Hour meter
15 Glow plug switch (option)
16 Function enable switch
17 Engine start switch
18 Engine idle (rpm) select switch
·
turtle: low idle
· rabbit: high idle and quickest battery
charging
19 Remote brake release
20 Jib boom up/down switch
21 Secondary boom up/down switch
