Part No. 56011 Genie Z-34/22 Bi-Energy 15
Operator's Manual First Edition • Fifth Printing
FUNCTION TESTS
Test the Tilt Sensor
9 Turn the key switch to platform control. Pull out
the platform red Emergency Stop button to the
on position.
10 Open the ground control side turntable cover and
locate the tilt sensor.

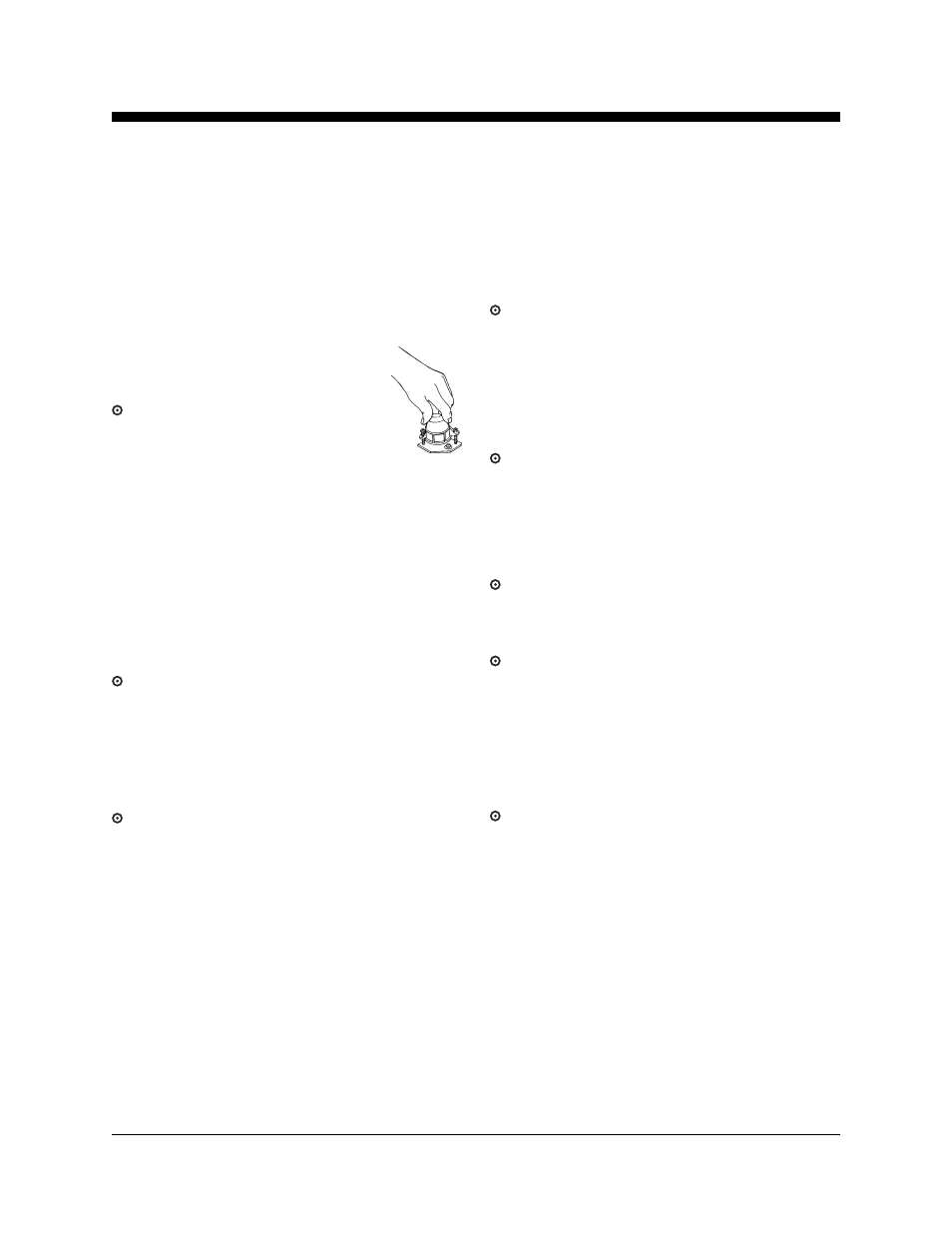

11 Press down one side of the tilt
sensor and hold for 5 seconds.
Result: The alarm, located in the
platform, should sound.
Test Auxiliary Controls
12 Turn the key switch to ground control.
13 Pull out the red Emergency Stop button to the
on position.
14 Simultaneously hold the auxiliary power switch
on and activate each boom function toggle
switch.
Note: To conserve battery power, test each
function through a partial cycle.
Result: All boom functions should operate.
At the Platform Controls
15 Turn the key switch to platform control.
16 Pull out the red Emergency Stop button to
the on position.
Result: The beacon (if equipped) should flash.
17 Start the engine. See Operating Instructions
section.
Test the Emergency Stop
18 Push in the platform red Emergency Stop button
to the off position.
Result: The engine should turn off and all
functions should not operate.
19 Pull out the red Emergency Stop button to
the on position.
Test the Horn
20 Push the horn button.
Result: The horn should sound.
Test the Foot Switch
21 Press down the foot switch and attempt to start
the engine by moving the start toggle switch to
either side.
Result: The engine should not start.
22 Do not press down the foot switch. Test each
machine function.
Result: The machine functions should not
operate.
Test Machine Functions
23 Press down the foot switch.
24 Activate each machine function control handle
or toggle switch.
Result: All boom/platform functions should
operate through a full cycle.
Note: Control the speed of boom functions by
adjusting the boom function speed controller.
Drive and steer functions are not affected by the
boom function speed controller.
Machines equipped with Platform Level Control
Disable Function: The platform level toggle switch
will not operate when the primary boom is raised
past the drive speed limit switch.
