Part No. 56011 Genie Z-34/22 Bi-Energy 23
Operator's Manual First Edition • Fifth Printing
Transport & Lifting Instructions
Observe and Obey:
The transport vehicle must be parked on a level
surface.
The transport vehicle must be secured to
prevent rolling while the machine is being
loaded.
Be sure the vehicle capacity, loading surfaces
and chains or straps are sufficient to withstand
the machine weight. See serial plate.
The machine must be on a level surface or
secured before releasing the brakes.
Be sure the turntable is secured with the
turntable rotation lock before transporting. Be
sure to unlock the turntable for operation.

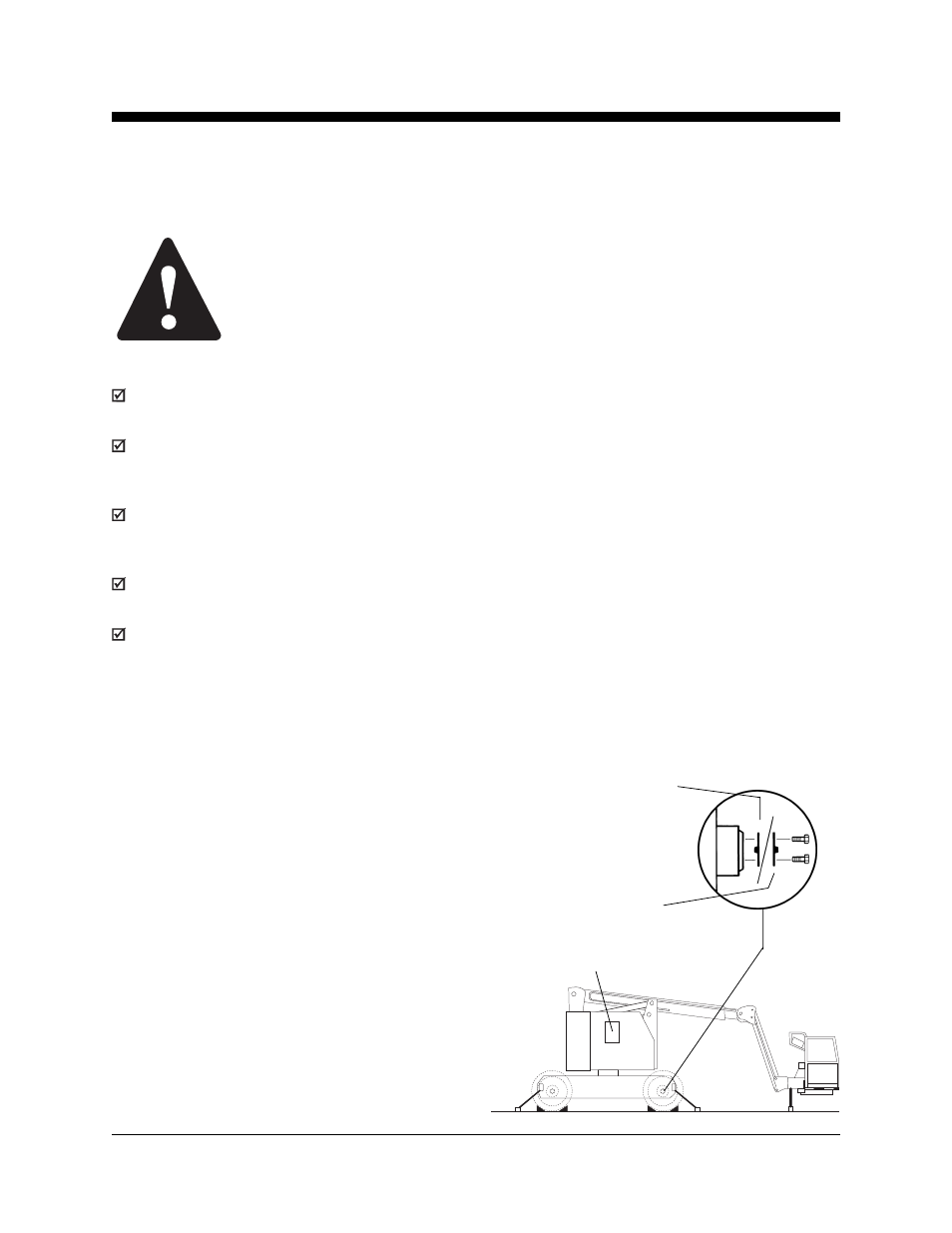

Free-wheel Configuration for
Winching
1 Chock the wheels to prevent the machine from
rolling.
2 Release the non-steer wheel brakes by turning
over the torque hub disconnect caps (see
below).
Machines with remote brake switch:
Plug the switch into the adaptor at the ground
control box. Apply the remote brake release
switch while winching the machine.
3 Be sure the winch line is properly secured to
the drive chassis tie points and the path is
clear of all obstructions.
After the machine is loaded:
1 Chock the wheels to prevent the machine from
rolling.
2 Apply the non-steer wheel brakes by turning
over the torque hub disconnect caps (see
below).
Towing a Genie Z-34/22 Bi-Energy machine is not
recommended. If the machine must be towed, do
not exceed 2 mph / 3.2 km/h.
Disengage
Position
Engage
Position
Remote brake switch
