G9749 Variable Speed Drill Press

-5-

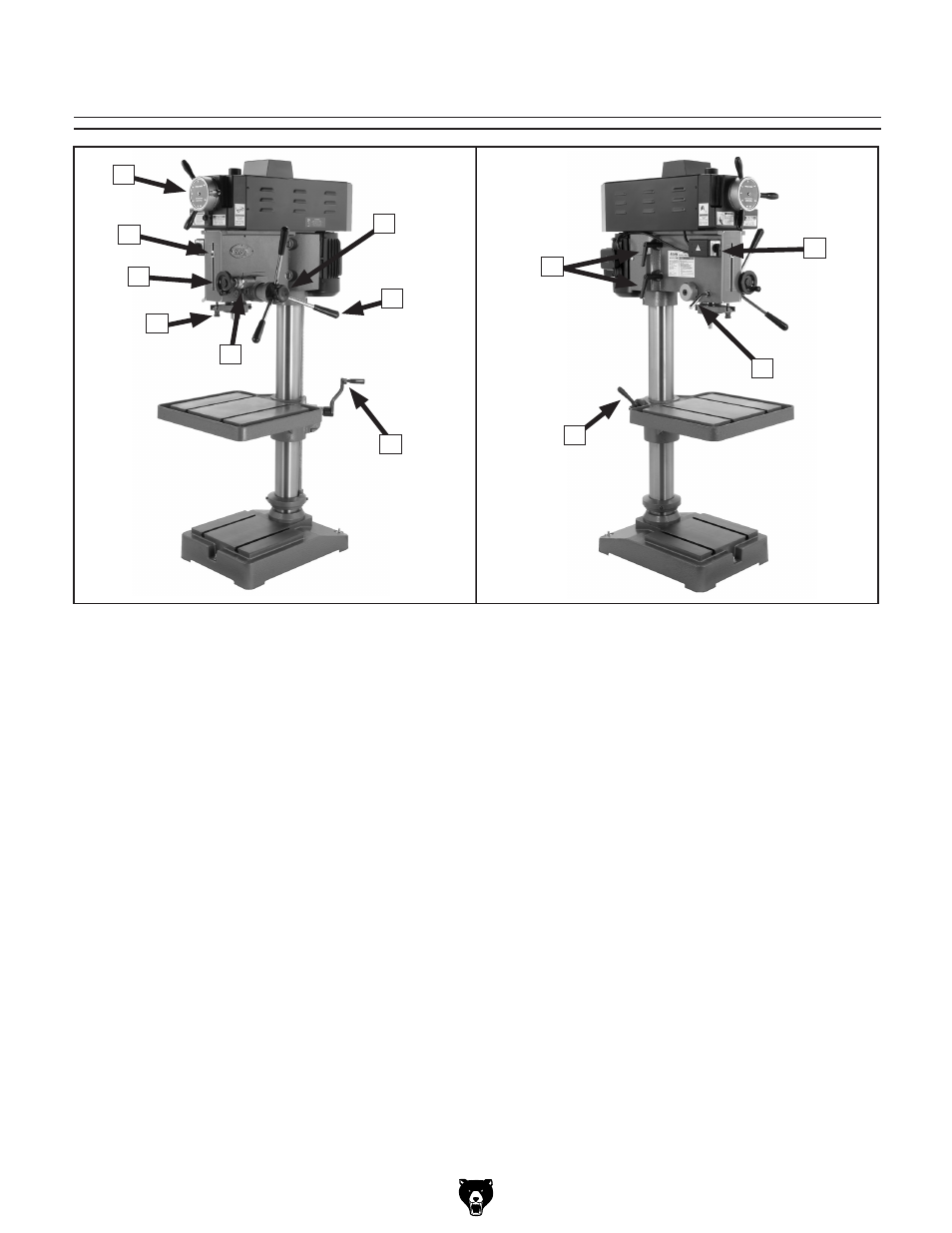

Figure 1. Right side controls.

Identification

Figure 2. Left side controls.

Refer to the list below and see

Figures 1 & 2 to

become familiar with the drill press controls.

A. Speed Selector Control: Allows variable

speeds from 300 to 2000 RPM.

B. Depth Gauge: Indicates quill travel in centi-

meters and inches.

C. Fine Downfeed Control: Allows more pre-

cise management of the quill and tooling.

D. Depth Stop: Stops the quill travel at a pre-set

drilling depth.

E. Fine Downfeed Indicator: Indicates fine

downfeed adjustments in 0.001" increments.

F. Clutch Knob: Switches between rapid and

fine downfeed control.

G. Rapid Downfeed Control: Provides a faster

movement of the quill and tooling.

H. Table Crank Handle: Raises/lowers the

table.

I. Headstock Lock Levers: Locks the head-

stock rotation.

J. Table Lock Lever: Locks the table height

and rotation.

K. Quill Lock Lever: Locks the quill in place.

L. Rotary Power Switch: Selects forward, stop,

or reverse.
