G9749 Variable Speed Drill Press
-17-
SECTION 4: OPERATIONS
NOTICE
If you have never used this type of machine
or equipment before, WE STRONGLY REC-
OMMEND that you read books, trade maga-
zines, or get formal training before begin-
ning any projects. Regardless of the con-
tent in this section, Grizzly Industrial will
not be held liable for accidents caused by
lack of training.

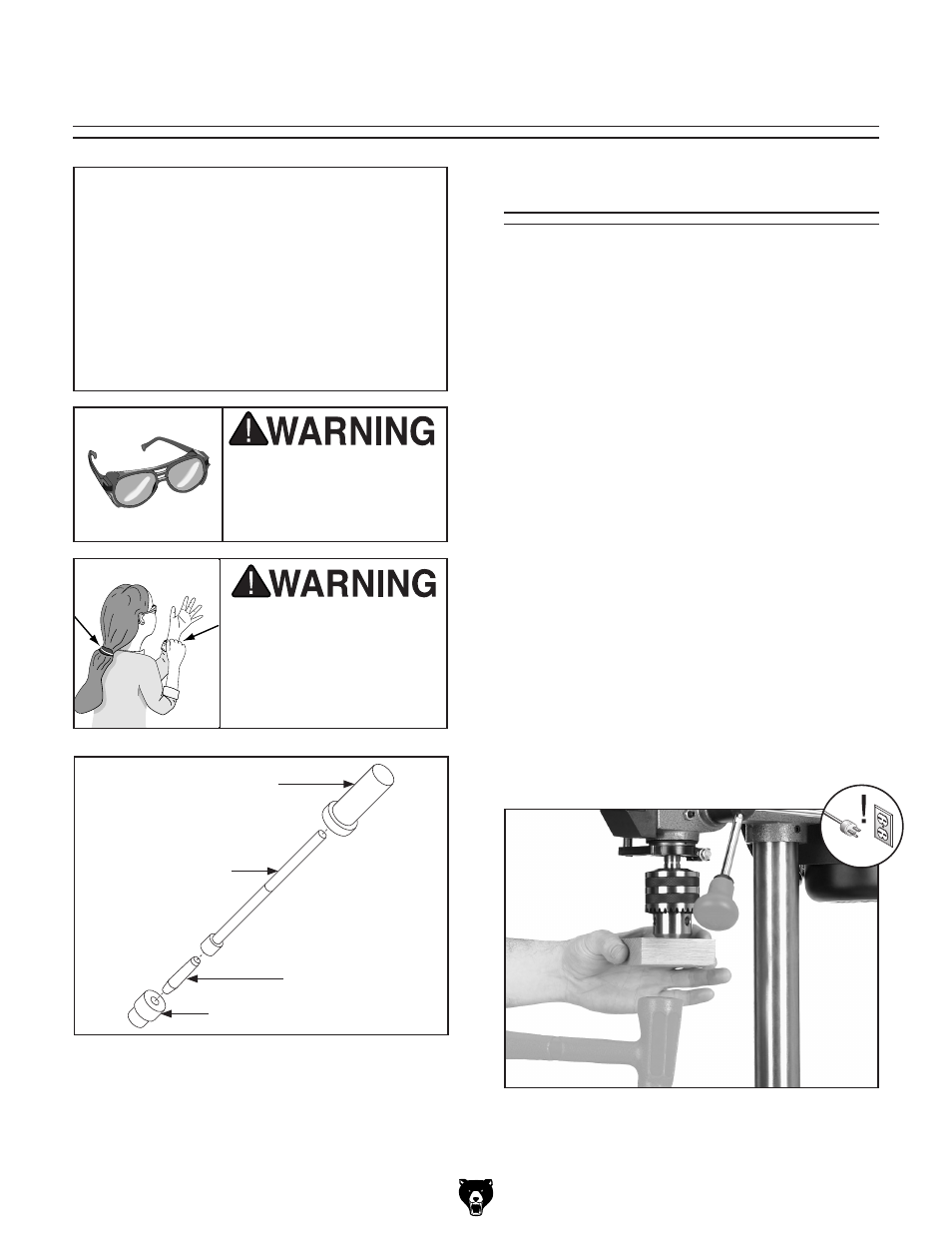

Installing Drill Chuck
A JT#6 (Jacobs Taper #6) keyed chuck is included
with the Model G9749 drill press.
To install the drill chuck onto the arbor:
1. UNPLUG THE DRILL PRESS!
Note: The arbor and spindle come from the
factory pre-installed into the quill. To replace
the arbor or spindle, refer to the
Removing/
Installing Arbor and Chuck section on
Page 23.
2. Prepare the mating surfaces of the arbor and
the chuck by cleaning them thoroughly.
3. Retract the chuck jaws all the way inside the
chuck.
4. Push the chuck onto the arbor, and using a
wood block and hammer or mallet as shown
in
Figure 13, hit the chuck ONCE with mod-
erate force to secure it on the arbor.
Note: Hitting the chuck directly with a steel
hammer or with excess force may damage
the chuck, making it unsafe to use.
Figure 13. Chuck being seated on the arbor.
Wear safety glasses when
operating this machine.
Serious injury may occur
if this warning is ignored!
Loose hair and clothing
could get caught in machin-
ery and cause serious per-
sonal injury. Keep loose
clothing and long hair away
from moving machinery.
Figure 12. Identification of typical quill, spindle,
arbor and chuck with Morse and Jacobs tapers.
Quill
Spindle
Arbor
Chuck
