B
GFK-1084B
B-7
Appendix B Communications Ports Characteristics
Transceiver Configurations
Depending on your particular application, any of several types of user-supplied
transceivers may be used. Typical configurations for 10Base2 (thin wire) and 10BaseT
(twisted pair) and a configuration with an AAUI to AUI adapter for connection to
10Base5 (thick wire) and 10BaseF (fiber optic) are shown in the following figures.
Note
Transceivers must be 802.3-compatible and must have the SQE option
Enabled.
Caution
PLC power must be OFF when connecting or disconnecting the
transceiver.

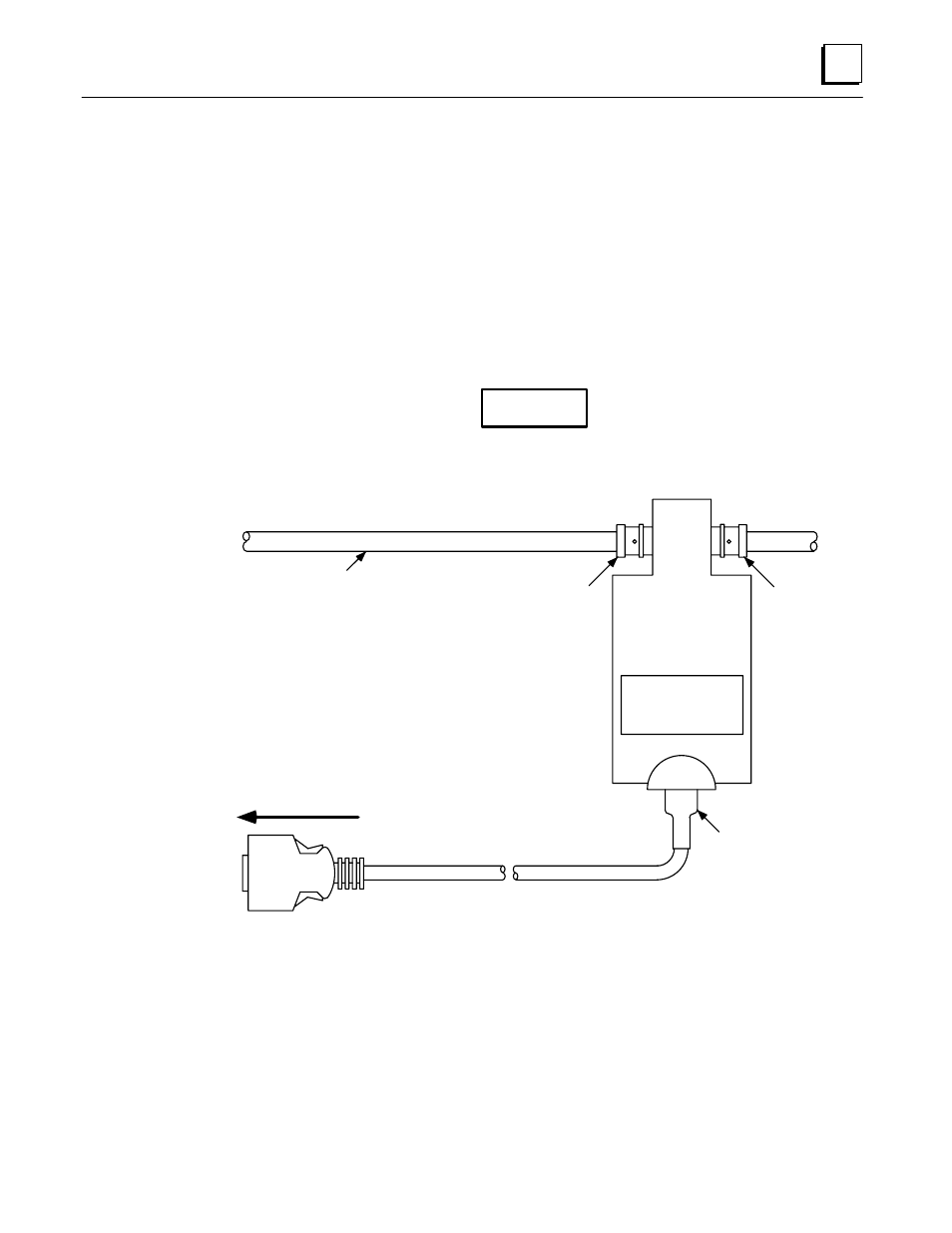

a45486
10 BASE 2
COAXIAL
CABLE
BNC
CONNECTOR
TRANSCEIVER CABLE TO
ETHERNET INTERFACE
RJ–45
CONNECTOR
BNC
CONNECTOR
Figure B-3. 10Base2 Transceiver Configuration with Detachable Transceiver Cable (Avail-
able as GE Fanuc Part Number IC649AEA101
