Graco Inc. Series E - Manual (Page 16)

16
307–760
PARTS LIST
REF
NO. PART NO. DESCRIPTION QTY
REF
NO. PART NO. DESCRIPTION QTY
2 220–970 OUTLET VALVE KIT
Includes items 2a–2f 1
2a 222–349 .FITTING, outlet 1
2b 180–454 .GASKET 1
2c 107–521 .SPRING 1
2d 101–956 .BALL 1
2e 218–968 .HOUSING, seat, valve 1
2f 180–455 .SEAL, washer 1
3 220–931* INLET VALVE KIT
Includes replaceable item 4 1
4 183–419 .GASKET 1
9 181–146 HOUSING, pump 1
12 218–974 PRESSURE SWITCH KIT
Includes item 12a 1
12a 108–195 .O–RING 1
14 181–209 RETAlNER 1
55 218–935 FRAME, roller
Includes items 55a–55e 1
55a 218–934 DIFFUSER, roller 1
55b 108–808 SEAL, u-cup, retainer 1
55c 183–420 NUT, retainer 1
55d 218–582 FRAME, roller 1
55e 101–983 SETSCREW 1
60 218–954 ROLLER VALVE
Replaceable parts are shown in the
drawing below for Kit 218–960
1
62 107–590 COVER, roller, 1/2” nap 1
63 218–775 EXTENSION, adjustable, 0.45–0.9 m
(18–36”) long 1
64 108–356 HOSE, fluid, nitriIe rubber; 6 m
(1/4”) ID; cpld 3/8 npsm(f);
7.6 m (25’) long
1
*Recommended “tool box’ spare parts.

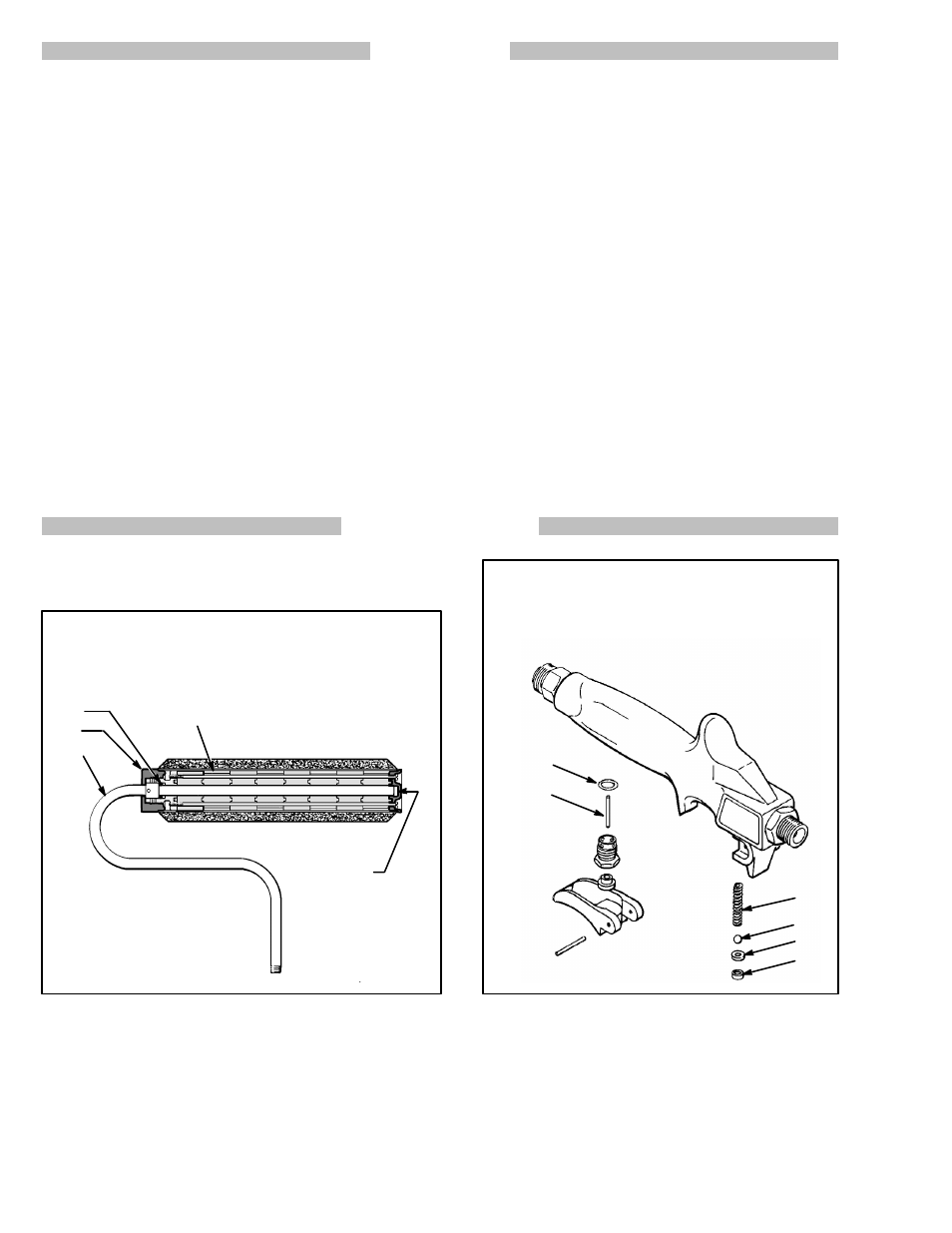

PARTS DRAWING
55c
55b
55a
55e
55d
Ref No. 55
Roller Frame
Includes items 55a - 55e
A
B
D
C
E
F
ROLLER VALVE REPAIR KIT 218–960
Kit includes items A through F
Individual parts are not sold separately.
See page 9 or the manual supplied with the
kit for repair instructions.
