32
Installation Instructions
BEFORE YOU BEGIN
Read each step thoroughly before proceeding.
•
CAUTION –
Unplug
the Refrigerator. To eliminate
the danger of electric shock during
installation, you must unplug the
refrigerator from its electrical outlet.

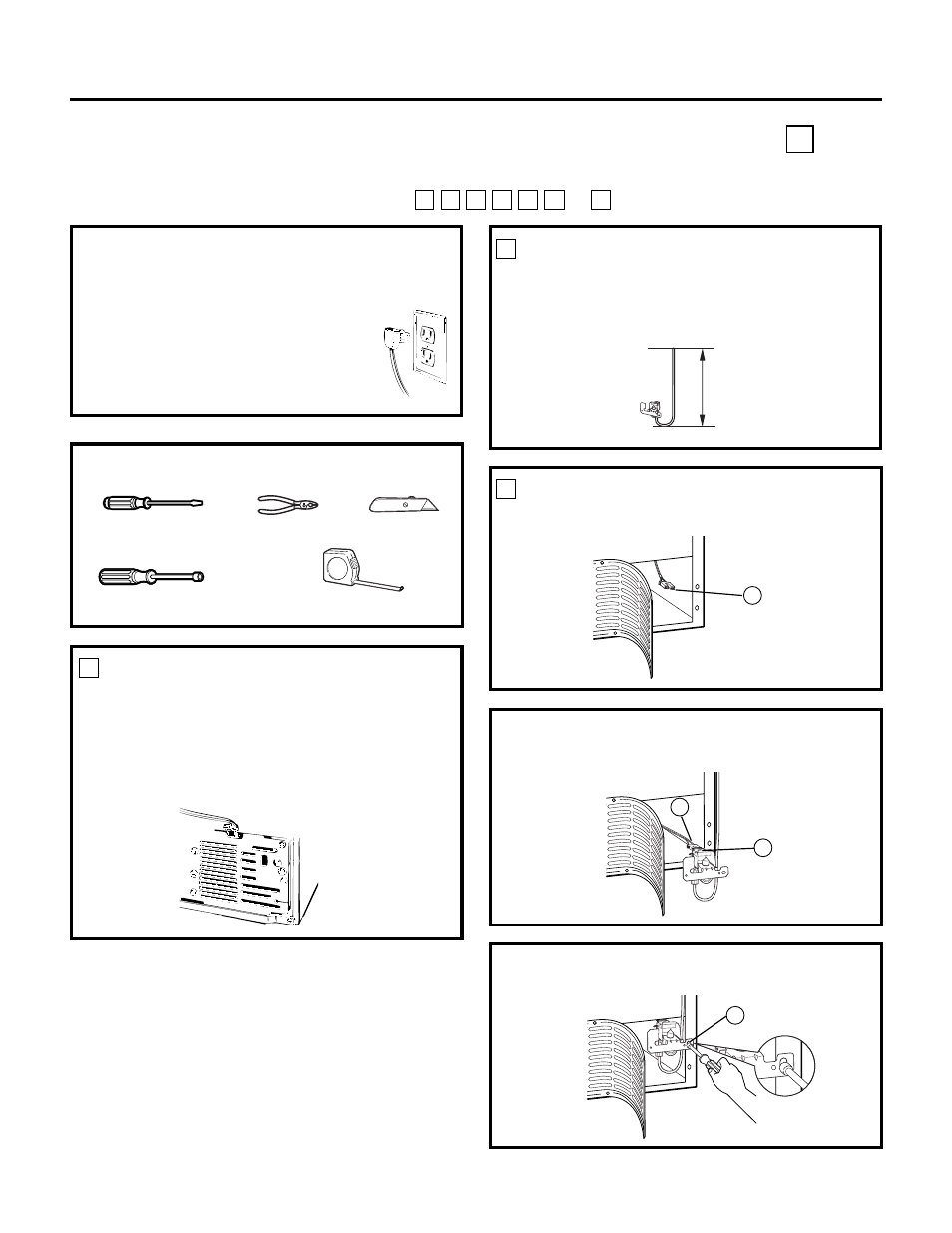

WATER VALVE ASSEMBLY INSTALLATION INSTRUCTIONS R
Are these the right instructions for your model? Follow the Installation Instructions indicated by
the label on the back of the refrigerator —
or S R Q P N M L
Flat blade and Phillips
screwdrivers
Pliers
TOOLS YOU WILL NEED
Sharp knife
1/4 ″ and 5/16″ Nutdrivers
REMOVE THE COVER
At the bottom rear of the refrigerator, remove
the screws holding the access cover.
Bend the cover back to access the compartment.
Be sure to save the screws as the access cover must
be reinstalled later to ensure that your refrigerator
will function properly.
1
CUT PLASTIC WATER TUBING
• Measure 25
″ (64 cm) of water tubing starting
from where it is secured to the water valve.
Cut off excess tubing with a sharp knife or
single-edge razor blade.
2
25 ″ (64 cm)
Tape measure
• Fasten the water valve to the cabinet using
the hex-head screw (10) from the kit.
ATTACH THE WATER VALVE
• Locate the female connector plug (C).
3
• Plug the female connector (C) onto the male
terminals on the water valve (3). Either wire
can go on either terminal.
C
3
10
C
