20

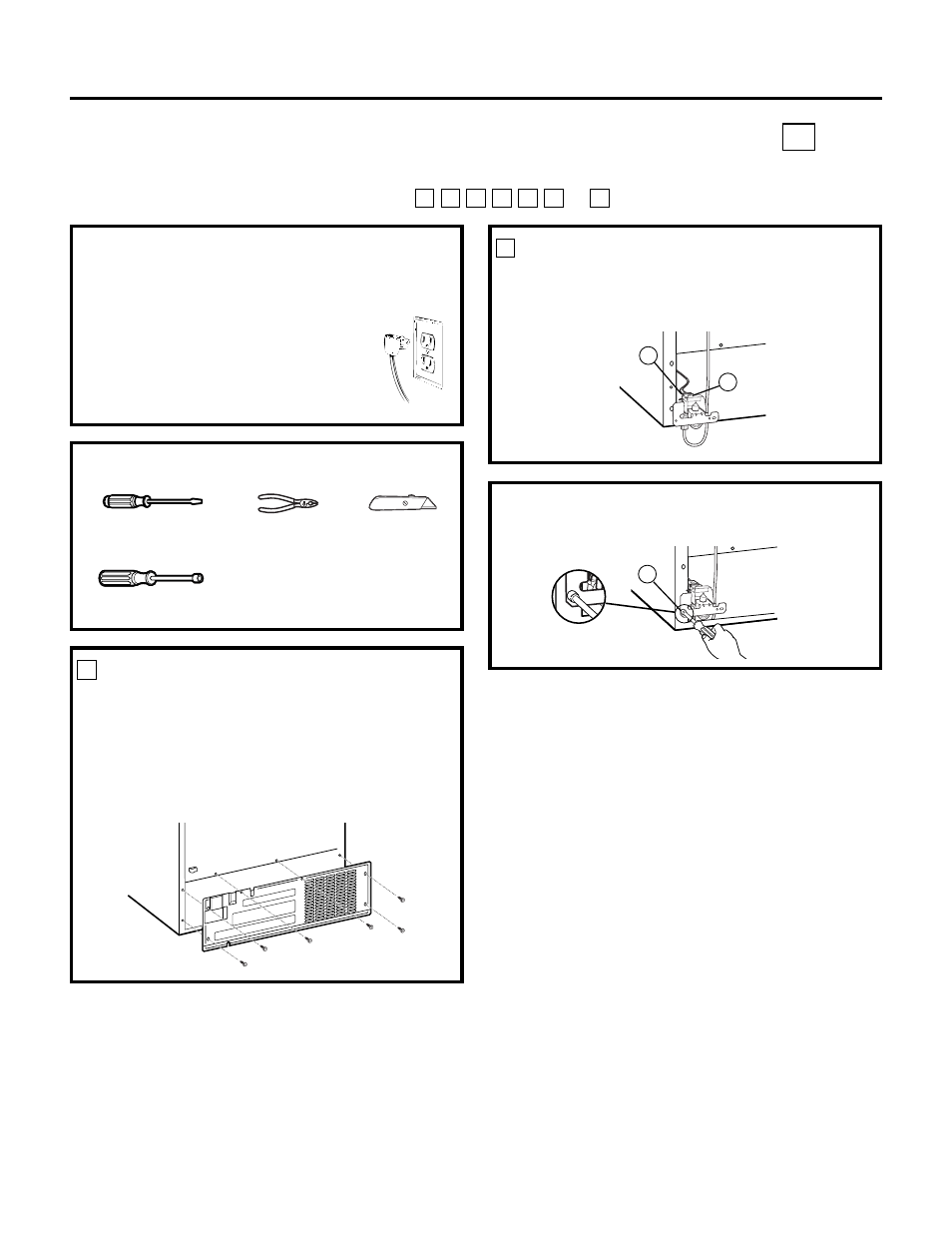

Installation Instructions
BEFORE YOU BEGIN
Read each step thoroughly before proceeding.
•
CAUTION –
Unplug
the Refrigerator. To eliminate
the danger of electric shock during
installation, you must unplug the
refrigerator from its electrical outlet.
WATER VALVE ASSEMBLY INSTALLATION INSTRUCTIONS N
Are these the right instructions for your model? Follow the Installation Instructions indicated by
the label on the back of the refrigerator —
or S R Q P N M L
Flat blade and Phillips
screwdrivers
Pliers
TOOLS YOU WILL NEED
Sharp knife
1/4
″ and 5/16″ Nutdrivers
ATTACH THE WATER VALVE
• Locate the female connector plug. Plug the female
connector (C) onto the male terminals on the water
valve (3). Either wire can go on either terminal.
2
10
• Fasten the water valve to the cabinet by driving
the hex-head screw (10) from the kit into the hole
in the cabinet leg.
C
3
REMOVE THE COVER
Use a 5/16 ″ nutdriver or an adjustable wrench
to remove the compressor compartment access
cover. This requires removing six screws which attach
the cover to the back of the refrigerator case.
Be sure to save the screws as the access cover must
be reinstalled later to ensure your refrigerator will
function properly.
1
