14
CUT FILL TUBE
• If the refrigerator already has a water tube and
inlet assembly on the back of the refrigerator,
go to Step 5.
• Cut the fill tube (13) to the length (refer to
the templates on page 42) with a sharp knife
or a single-edge razor blade.
M
M
3

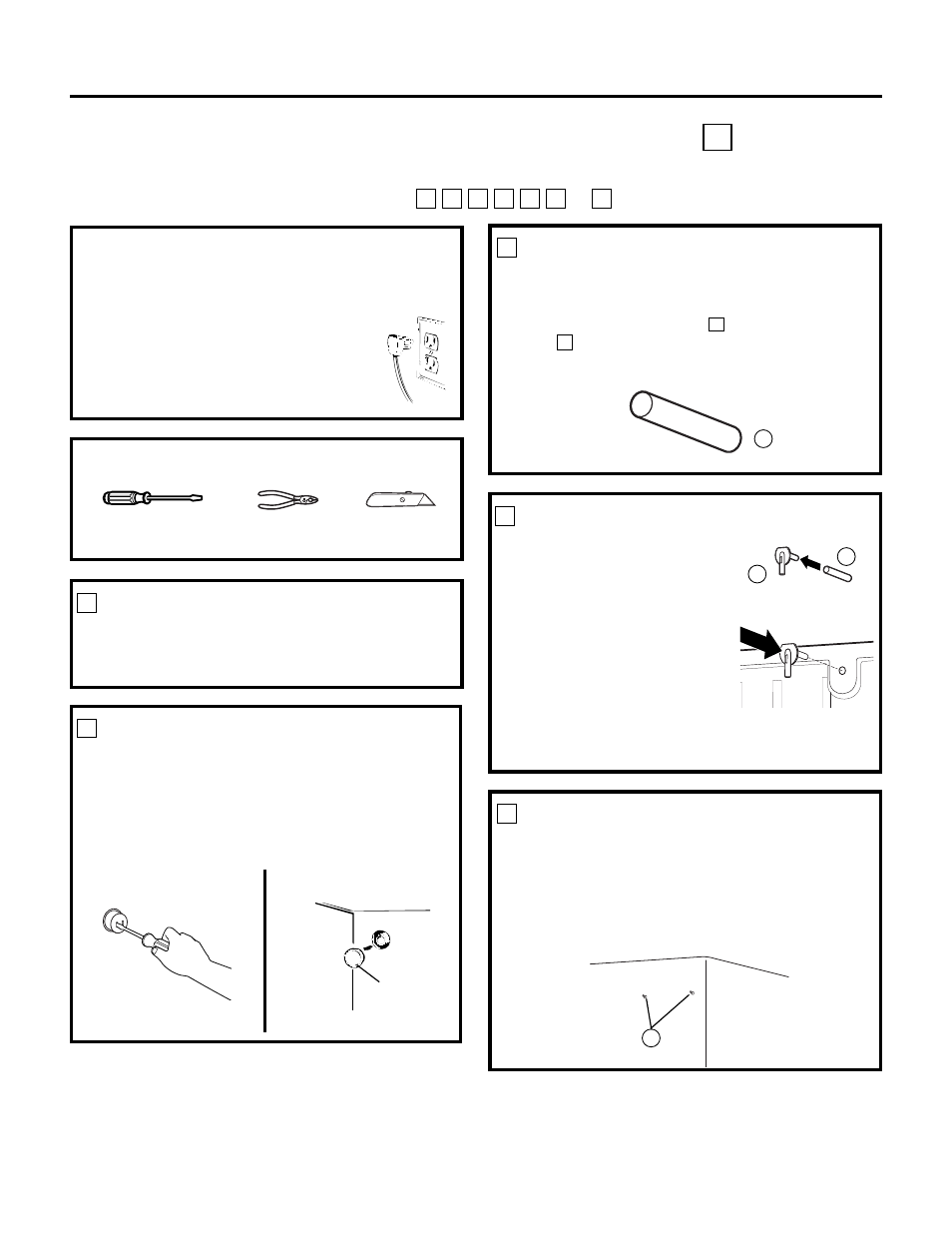

Installation Instructions
ICEMAKER INSTALLATION INSTRUCTIONS M
Are these the right instructions for your model? Follow the Installation Instructions indicated by
the label on the back of the refrigerator —
or S R Q P N M L
BEFORE YOU BEGIN
Read each step thoroughly before proceeding.
•
CAUTION –
Unplug
the Refrigerator. To eliminate
the danger of electric shock during
installation, you must unplug the
refrigerator from its electrical outlet.
Flat blade and Phillips
screwdrivers
Pliers
TOOLS YOU WILL NEED
Sharp knife
REMOVE THE WHITE PLUG
AND OUTLET COVER
• Remove the outlet cover with a flat-blade
screwdriver located either on the left or back freezer
wall near the top.
• Remove and discard the white plug from the upper
left hand corner of the freezer wall.
2
REPOSITION FREEZER SHELF
For models with two temperature controls
(refrigerator and freezer) only:
• Make sure the freezer shelf is in the lowest position.
1
Remove
plug
13
INSTALL FILL TUBE
• Slide the fill tube (13) onto
the water tube inlet (12).
• Go to the back of the
refrigerator. Find the small label
or plug button (depending on
model) and remove it. On the
tube side of the water tube inlet
(12), there is an adhesive
backing. Remove the adhesive
backing and slide the tube into
the hole near the top at the back of the refrigerator.
Firmly press on the inlet to secure it to the
refrigerator.
4
12
13
PREPARE FOR INSTALLATION
Inside the freezer, loosen the two mounting screws (B)
but do not screw them all the way out. If your model
does not have the screws already in the freezer wall,
look for two plug buttons. Remove the plug buttons
and insert the two Phillips head screws (11).
The screws should extend approximately
1/2
″ (13 mm) out from the freezer wall.
5
B
