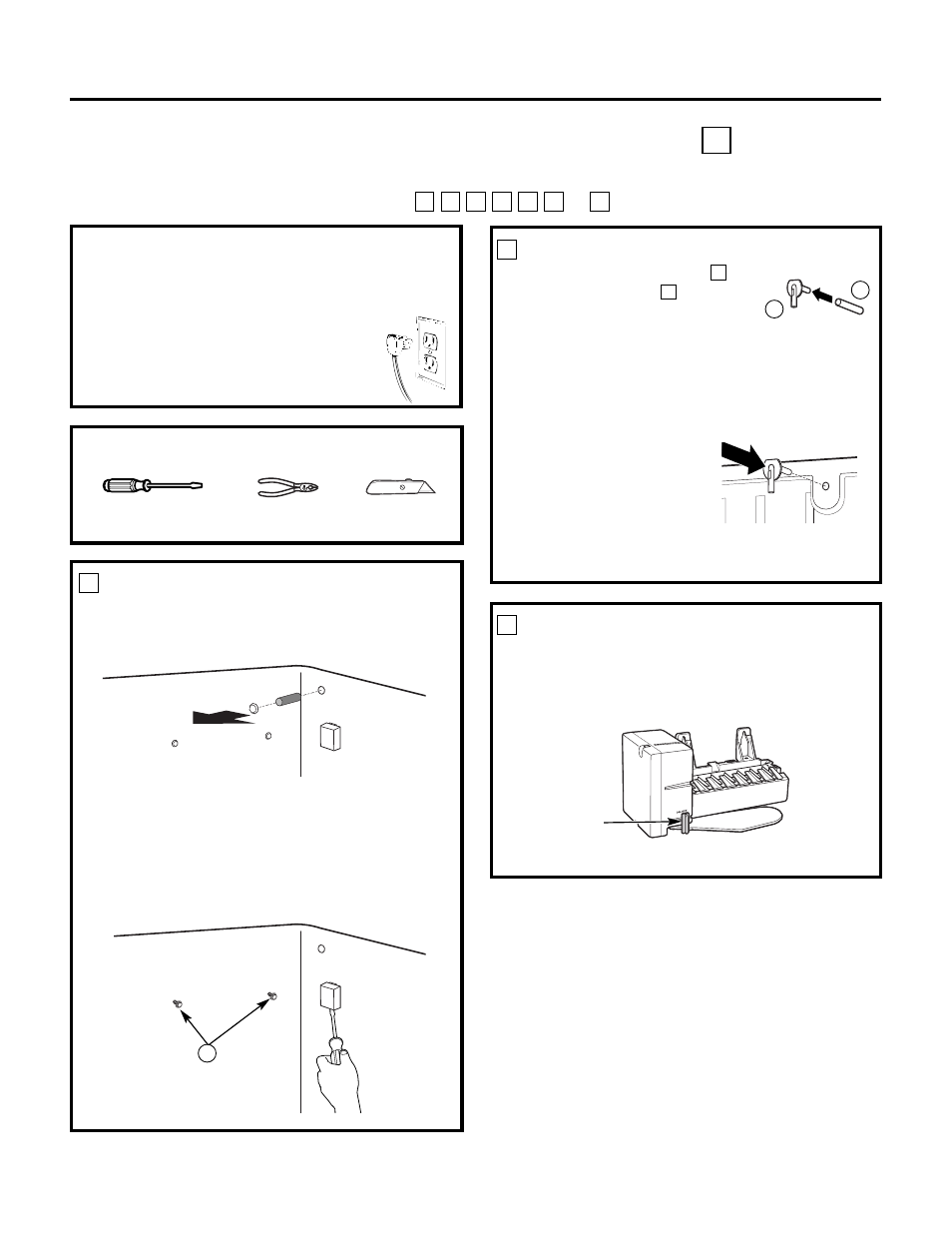

Installation Instructions
ICEMAKER INSTALLATION INSTRUCTIONS P
Are these the right instructions for your model? Follow the Installation Instructions indicated by
the label on the back of the refrigerator —
or S R Q P N M L
BEFORE YOU BEGIN
Read each step thoroughly before proceeding.
•
CAUTION –
Unplug
the Refrigerator. To eliminate
the danger of electric shock during
installation, you must unplug the
refrigerator from its electrical outlet.
Flat blade and Phillips
screwdrivers
Pliers
TOOLS YOU WILL NEED
Sharp knife
1 PREPARE FOR INSTALLATION
• Remove and discard the large white plug from
the rear freezer wall. Pull out the gray insulation
plug and remove any debris.
• Remove the two small white plug buttons on the side
wall. Install two Phillips head screws (11) in the holes
that the plug buttons were in, but do not screw them
all the way in. The screw heads should extend about
1/2
″ (13 mm) from the side wall of the freezer.
• Remove the outlet cover with a flat-blade
screwdriver.
SET POWER SWITCH TO OFF
Set the icemaker power switch to OFF. Leave
the power switch in the OFF position until the
refrigerator is connected to the water supply
to prevent premature operation.
3
Power
Switch
11
INSTALL FILL TUBE
• Cut the fill tube (13) to the
length (refer to the template
on page 42) with a
sharp knife or a single-edge
razor blade.
• Slide the fill tube (13) onto the water tube inlet (12).
• Go to the back of the refrigerator. In the upper right
hand corner, remove the label covering the hole.
Pull out the insulation plug and any debris.
• On the tube side of the water
tube inlet (12), there is
an adhesive backing.
Remove the adhesive
backing and slide the tube
into the hole near the top at
the back of the refrigerator. Firmly press on the inlet
to secure it to the refrigerator.
P
P
2
12
13
(Appearance may vary)
