Genie Superlift Advantage

Operator's Manual

Third Edition • Third Printing

FUNCTION TESTS

Test Two-Speed Winch Operation

1 Install a load handling attachment.

2 Shift the winch to the slow speed.

3 Raise the carriage by firmly grasping the winch

handles and rotating them towards the mast.

Result: The winch should operate smoothly, free

of hesitation or binding.

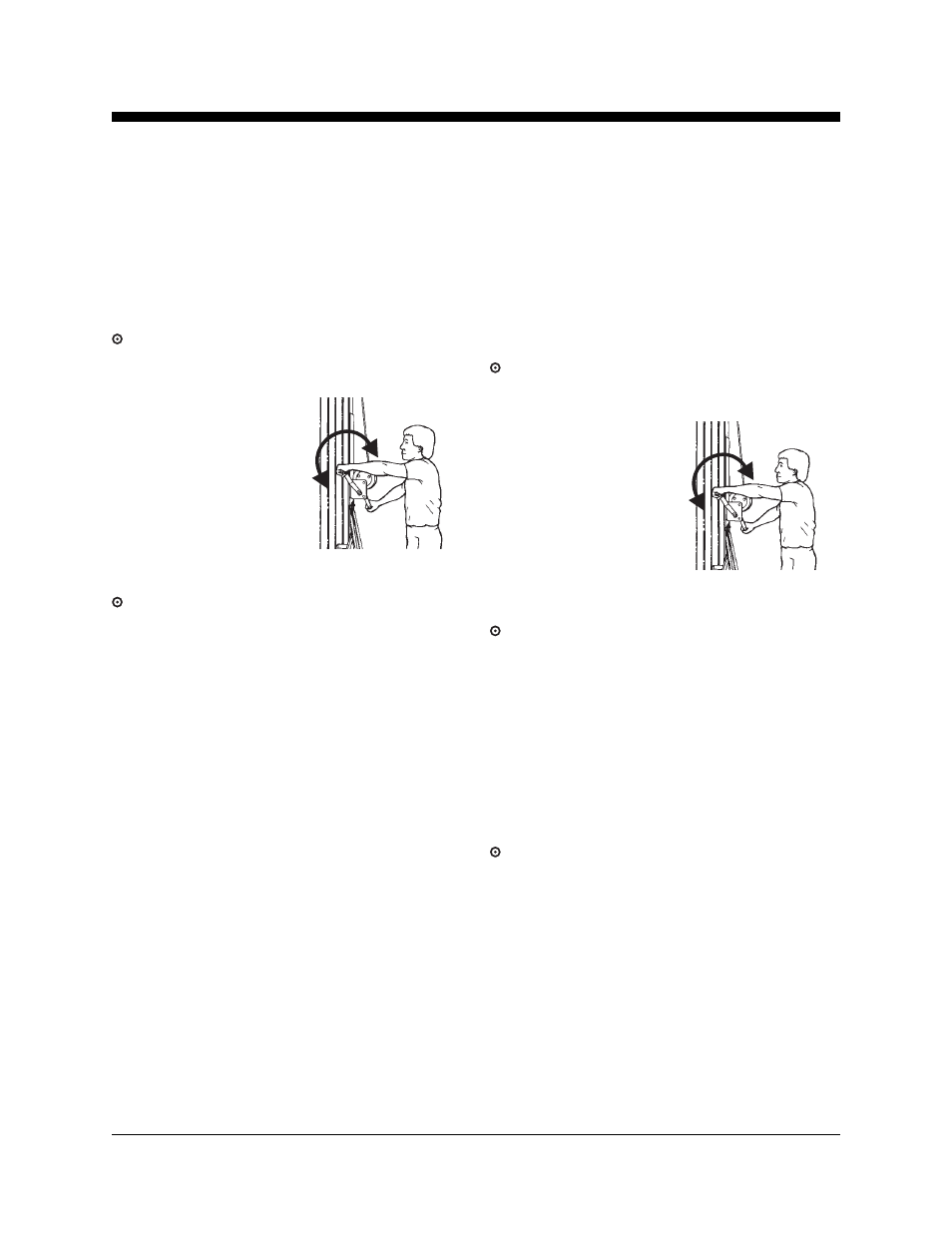

4 Lower the carriage by

firmly grasping the
winch handles and
rotating them away
from the mast. After
lowering to the
desired position, turn
the winch handles
toward the mast
(raise the load)

turn to set the brakes.

Result: The winch should operate smoothly, free

of hesitation or binding.

5 Shift the winch to the fast speed and repeat

steps 3 and 4.

Test Mast Sequencing

1 Install a load handling attachment.

2 Raise the carriage to full height by firmly

grasping the winch handles and rotating them
towards the mast.

Result: The carriage should raise to the top of

the front mast section, followed in consecutive
order by each mast section.

3 Fully lower the carriage. After lowering to the

desired position, turn the winch handles toward
the mast (raise the load)

turn to set the

brakes.

Test One-Speed Winch Operation

1 Install a load handling attachment.

2 Raise the carriage by firmly grasping the winch

handles and rotating them towards the mast.

Result: The winch should operate smoothly, free

of hesitation or binding.

3 Lower the carriage by

firmly grasping the
winch handles and
rotating them away
from the mast. After
lowering to the
desired position, turn
the winch handles
toward the mast
(raise the load)

turn to set the brakes.

Result: The winch should operate smoothly, free

of hesitation or binding.
